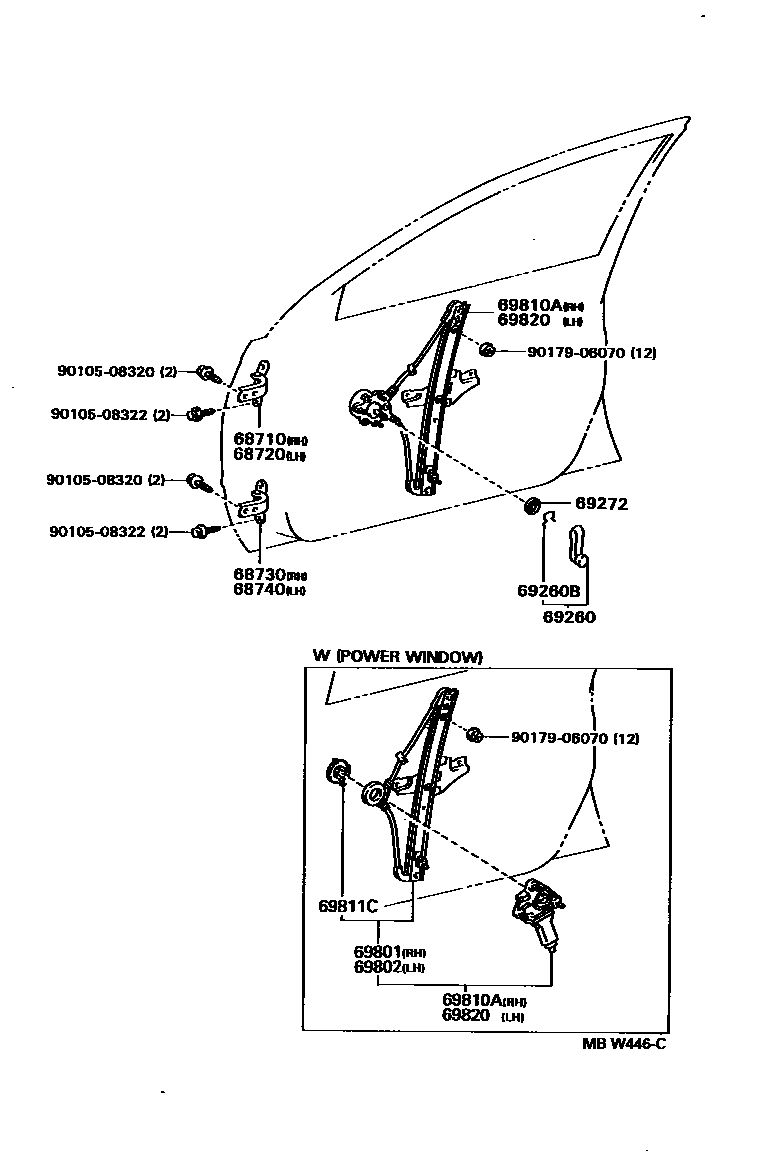

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iAT190,CT190,ST191..JPP199203-199510

main68710-12150iAT190,ST191..JPP199606-199607

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iAT190,CT190,ST191..JPP199203-199510

main68720-12150iAT190,CT190,ST191..JPP199510-199606

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iAT190,CT190,ST191..JPP199203-199510

main68730-12110iAT190,ST191..JPP199607

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iAT190,CT190,ST191..JPP199203-199510

main68740-12110iAT190,CT190,ST191..JPP199510-199606

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-20090-B1×2iAT190,CT190,ST191..JPP199402-199805

SHADOW GRAY,TRIM1#

main69260-20090-C0×2iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main69260-20090-E0×2iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTEROPE,TRIM4#

main69260-20090-J0×2iAT190,CT190,ST191..JPP..SED199203-199607

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAT190,CT190,ST191..JPP199203-199606

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iAT190,ST191..JPP..RHD..SED..GL199203-199305

NATURAL WHITE,TRIM2#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20210iAT190,ST191..JPP199606-199607

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20230iST191..JPP..GL;AT190,CT190..JPP199203-199606

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20270iAT190,CT190,ST191..JPP199203-199606

main69810-20280iST191..JPP..GL;AT190,CT190..JPP199203-199606

W(POWER WINDOW)

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-32010×2iST191..JPP..GL;AT190,CT190..JPP199203-199505

main69813-32040iST191..JPP..GL;AT190,CT190..JPP199505-199606

RH

main69814-32010iST191..JPP..GL;AT190,CT190..JPP199505-199606

LH

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20290iAT190,ST191..JPP199607

main69820-20300iAT190,ST191..JPP199607

W(POWER WINDOW)

9010508320

main90105-08320

9010508322

main90105-08322

9017906070

main90179-06070

15 parts on this diagram · 1 diagram in section
