EPC Data

FRONT DOOR PANEL & GLASS

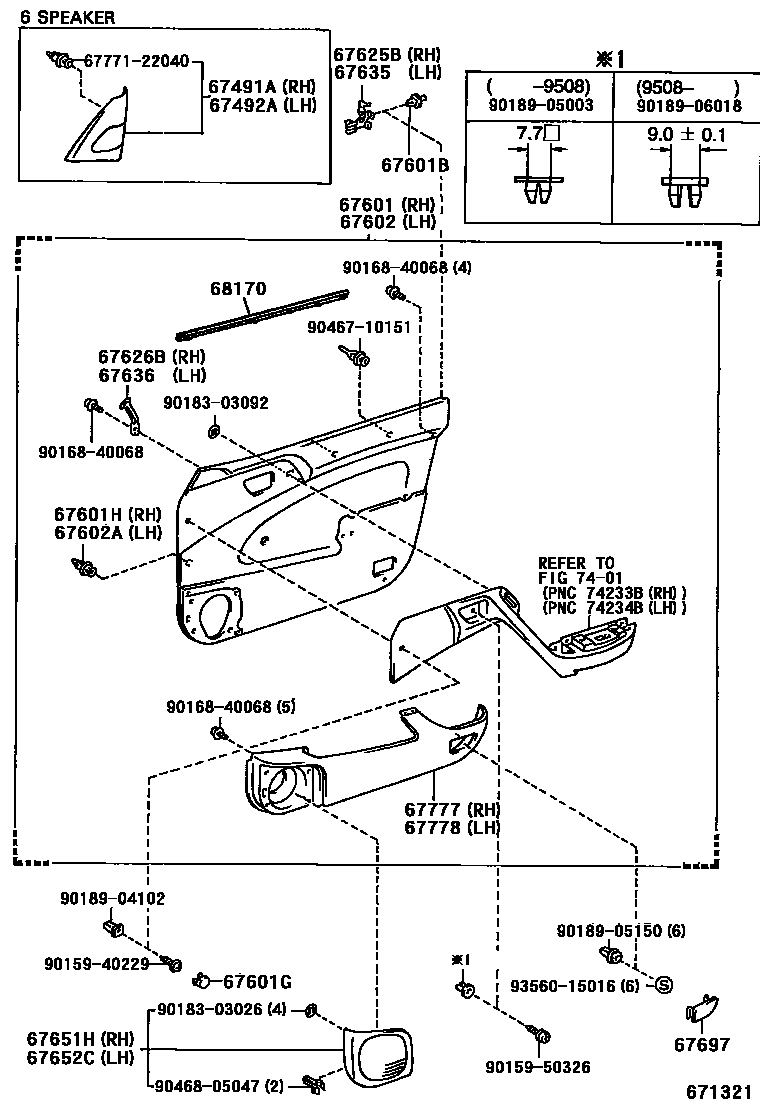

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-20250i199711
W(ELECTRICAL *RCM)
main67491-20250i199203-199402
main67491-20260i199711
main67491-20260i199203-199402
W(MANUAL *RCM)
main67491-20270-C0i199203-199305
W(SPEAKER),BLACK,TRIM2#,4#,8#
main67491-20270-C0i199203-199402
W(SPEAKER),BLACK,TRIM2#,8#
main67491-20270-C0i199203-199402
W(SPEAKER),BLACK,TRIM2#
main67491-20270-C0i199402-199606
BLACK,TRIM1#
main67491-20270-C0i199402-199607
BLACK,TRIM1#,8#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-20270i199402-199805
W(ELECTRICAL *RCM)
main67492-20270i199203-199402
main67492-20280i199203-199402
W(DOOR MIRROR)
main67492-20280i199402-199805
main67492-20290-C0i199203-199305
W(SPEAKER),BLACK,TRIM2#,4#,8#
main67492-20290-C0i199203-199402
W(SPEAKER),BLACK,TRIM2#,8#
main67492-20290-C0i199203-199402
W(SPEAKER),BLACK,TRIM2#
main67492-20290-C0i199402-199805
W(SPEAKER),BLACK,TRIM1#
main67492-20290-C0i199402-199607
W(SPEAKER),BLACK,TRIM1#,8#
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-2G420-B0i199402-199601
SHADOW GRAY,TRIM1#
main67610-2G420-B0i199402-199409
W(SPEAKER),SHADOW GRAY,TRIM1#
main67610-2G420-B0i199601-199606
SHADOW GRAY
main67610-2G420-J0i199601-199606
DK.BLUE
main67610-2G420-J0i199402-199409
W(SPEAKER),DK.BLUE,TRIM8#
main67610-2G420-J0i199402-199601
DK.BLUE,TRIM8#
main67610-2G430i199607-199711
main67610-2G430-B1i199402-199607
SHADOW GRAY,TRIM1#
sub67610-2G430
main67610-2G430-B6i199607
SHADOW GRAY,TRIM1#
sub67610-2G430
main67610-2G430-J0i199402-199607
DK.BLUE,TRIM8#
sub67610-2G430
main67610-2G440i199601-199711
W(POWER WINDOW & EX FABRIC)-*104
main67610-2G440-B0i199402-199601
W(POWER WINDOW & EX FABRIC)-*104,SHADOW GRAY,TRIM1#
main67610-2G480i199607-199711
W(POWER WINDOW)
main67610-2G480-B0i199402-199607
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-2G480-J0i199402-199607
W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-2G490-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-2G490-J0i199402-199601
W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-2G500-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-2G500-J0i199402-199601
W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-2G510-B0i199402-199607
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-2G510-B0i199402-199601
W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#
main67610-2G510-B1i199607
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-2G510-J0i199402-199607
W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-2G510-J0i199402-199601
W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8#
main67650-2D080-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67610-2G360
main67650-2D080-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
sub67610-2G360
main67650-2D081-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D081-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67650-2D090-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67610-2G370
main67650-2D090-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
sub67610-2G370
main67650-2D091-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D091-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67650-2D100-C0i199203-199305
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D101i199607-199711
W(SPORTS SEAT)-*104
main67650-2D101-B1i199402-199607
W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
sub67650-2D101
main67650-2D101-B1i199402-199606
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67650-2D101
main67650-2D101-C0i199305-199402
CKD PACKAGE & W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104;W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104,BLACK,TRIM2#
sub67650-2D101
main67650-2D101-C0i199305-199402
(NEW ZEALAND SPEC OR CKD PACKAGE) & W(POWER WINDOW & SPORTS SEAT)-*104;W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
sub67650-2D101
main67650-2D170-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D170-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
main67650-2D171-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D171-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67650-2D370-C1i199203-199305
W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67650-2D370-E1i199203-199305
W(POWER WINDOW & EX FABRIC)-*104,ANTELOPE,TRIM4#
main67650-2D371-C2i199305-199402
W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67650-2D371-C2i199305-199310
CKD PACKAGE & W(POWER WINDOW & EX FABRIC)-*104;W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67650-2D430-C1i199203-199305
BLACK,TRIM2#
sub67610-2G330
sub67650-2D430
main67650-2D430-J1i199203-199305
DK. BLUE,TRIM8#
sub67610-2G330
sub67650-2D430
main67650-2D431-C8i199305-199402
BLACK,TRIM2#
sub67650-2D431
main67650-2D431-C8i199305-199402
W(SPEAKER),BLACK,TRIM2#
sub67650-2D431
main67650-2D431-C8i199305-199402
CKD PACKAGE & W(SPEAKER) OR W(SPEAKER),BLACK,TRIM2#
sub67650-2D431
main67650-2D431-J8i199305-199402
CKD PACKAGE & W(SPEAKER) OR W(SPEAKER),DK.BLUE,TRIM8#
sub67650-2D431
main67650-2D431-J8i199305-199402
DK.BLUE,TRIM8#
sub67650-2D431
main67650-2D431-J8i199305-199402
W(SPEAKER),DK.BLUE,TRIM8#
sub67650-2D431
main67650-2D480-20i199305-199402
BLACK,TRIM2#
sub67650-2D480
main67650-2D480-20i199305-199402
CKD PACKAGE,BLACK,TRIM2#
sub67650-2D480
main67650-2D480-C0i199203-199305
BLACK,TRIM2#
sub67650-2D480
main67650-2D480-J0i199203-199305
DK. BLUE,TRIM8#
sub67650-2D480
main67650-2D480-J6i199305-199402
CKD PACKAGE,DK.BLUE,TRIM8#
sub67650-2D480
main67650-2D480-J6i199305-199402
DK.BLUE,TRIM8#
sub67650-2D480
main67650-2D570-C1i199203-199305
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D571i199601
W(SPORTS SEAT)-*104
main67650-2D571-B0i199402-199601
W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
main67650-2D571-C1i199305-199402
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D571-C1i199305-199402
CKD PACKAGE & W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104;W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D580i199601-199711
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104
main67650-2D580-B0i199402-199601
SHADOW GRAY,TRIM1#
main67650-2D580-B0i199402-199601
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
main67650-2D580-C0i199203-199402
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D580-C0i199203-199402
W(SPORTS SEAT)-*104,BLACK,TRIM2#
main67650-2D590-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D590-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
main67650-2D591-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67650-2D591-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07071-22i199203-199402
BLACK,TRIM2#
sub90467-07071
main90467-07071-22i199203-199402
BLACK,TRIM2#,8#
sub90467-07071
main90467-07071-22i199402-199606
BLACK,TRIM1#
sub90467-07071
main90467-07071-22i199402-199607
BLACK,TRIM1#,8#
sub90467-07071
main90467-07071-E2i199203-199305
ANTELOPE,TRIM4#
sub90467-07071
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01503-C0i199203-199402
BLACK,TRIM2#
sub90950-01503
main90950-01503-E0i199203-199305
ANTELOPE,TRIM4#
sub90950-01503
main90950-01503-J0i199203-199607
DARK BLUE,TRIM8#
sub90950-01503
main90950-01503-P0i199402
SHADOW GRAY,TRIM1#
sub90950-01503
67601HRETAINER, DOOR TRIM, RH
main67771-20110i199203-199607
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-2H300-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67620-2L320
main67620-2H300-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
sub67620-2L320
main67620-2H301-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H301-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67620-2H310-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67620-2L330
main67620-2H310-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
sub67620-2L330
main67620-2H311-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H311-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67620-2H320-C0i199203-199305
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H321i199601-199711
W(SPORTS SEAT)-*104
main67620-2H321-B0i199402-199601
W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
main67620-2H321-B0i199601-199606
W(POWER WINDOW),SHADOW GRAY
main67620-2H321-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-2H321-C0i199305-199402
(NEW ZEALAND SPEC OR CKD PACKAGE) & W(POWER WINDOW & SPORTS SEAT)-*104;W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H321-C0i199305-199402
CKD PACKAGE & W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104;W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H510-C1i199203-199305
W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67620-2H510-E1i199203-199305
W(POWER WINDOW & EX FABRIC)-*104,ANTELOPE,TRIM4#
main67620-2H511-C2i199305-199402
W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67620-2H511-C2i199305-199310
CKD PACKAGE & W(POWER WINDOW & EX FABRIC)-*104;W(POWER WINDOW & EX FABRIC)-*104,BLACK,TRIM2#
main67620-2H590-C1i199203-199305
BLACK,TRIM2#
sub67620-2L290
sub67620-2H590
main67620-2H590-J1i199203-199305
DK. BLUE,TRIM8#
sub67620-2L290
sub67620-2H590
main67620-2H591-C8i199305-199402
W(SPEAKER),BLACK,TRIM2#
sub67620-2H591
main67620-2H591-C8i199305-199402
BLACK,TRIM2#
sub67620-2H591
main67620-2H591-C8i199305-199402
CKD PACKAGE & W(SPEAKER) OR W(SPEAKER),BLACK,TRIM2#
sub67620-2H591
main67620-2H591-J8i199305-199402
CKD PACKAGE & W(SPEAKER) OR W(SPEAKER),DK.BLUE,TRIM8#
sub67620-2H591
main67620-2H591-J8i199305-199402
DK.BLUE,TRIM8#
sub67620-2H591
main67620-2H591-J8i199305-199402
W(SPEAKER),DK.BLUE,TRIM8#
sub67620-2H591
main67620-2H630-20i199305-199402
BLACK,TRIM2#
sub67620-2H630
main67620-2H630-20i199305-199402
CKD PACKAGE,BLACK,TRIM2#
sub67620-2H630
main67620-2H630-C0i199203-199305
BLACK,TRIM2#
sub67620-2H630
main67620-2H630-J0i199203-199305
DK. BLUE,TRIM8#
sub67620-2H630
main67620-2H630-J6i199305-199402
DK.BLUE,TRIM8#
sub67620-2H630
main67620-2H630-J6i199305-199402
CKD PACKAGE,DK.BLUE,TRIM8#
sub67620-2H630
main67620-2H710-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H710-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2H711-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H711-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67620-2H720-C1i199203-199305
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H721i199601
W(SPORTS SEAT)-*104
main67620-2H721-B0i199402-199601
W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
main67620-2H721-C1i199305-199402
W(POWER WINDOW & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H721-C1i199305-199402
CKD PACKAGE & W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104;W(POWER WINDOW & SPEAKER & SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H730i199601-199711
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104
main67620-2H730-B0i199402-199601
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104,SHADOW GRAY,TRIM1#
main67620-2H730-B0i199402-199601
SHADOW GRAY,TRIM1#
main67620-2H730-C0i199203-199402
NEW ZEALAND SPEC & W(SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H730-C0i199203-199402
W(SPORTS SEAT)-*104,BLACK,TRIM2#
main67620-2H740-C0i199203-199305
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H740-J0i199203-199305
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2H741-C1i199305-199402
W(POWER WINDOW),BLACK,TRIM2#
main67620-2H741-J1i199305-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
main67620-2L390-B0i199402-199601
SHADOW GRAY,TRIM1#
main67620-2L390-B0i199402-199601
W(SPEAKER),SHADOW GRAY,TRIM1#
main67620-2L390-B0i199601-199606
SHADOW GRAY
main67620-2L390-J0i199402-199601
W(SPEAKER),DK.BLUE,TRIM8#
main67620-2L390-J0i199402-199601
DK.BLUE,TRIM8#
main67620-2L390-J0i199601-199606
DK.BLUE
main67620-2L400i199607-199711
main67620-2L400-B1i199402-199607
SHADOW GRAY,TRIM1#
sub67620-2L400
main67620-2L400-B6i199607
SHADOW GRAY,TRIM1#
sub67620-2L400
main67620-2L400-J0i199402-199607
DK.BLUE,TRIM8#
sub67620-2L400
main67620-2L410i199601-199711
W(EX FABRIC)-*104
main67620-2L410-B0i199402-199601
W(EX FABRIC)-*104,SHADOW GRAY,TRIM1#
main67620-2L450i199607-199711
W(POWER WINDOW)
main67620-2L450-B0i199402-199607
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-2L450-J0i199402-199607
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2L460-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-2L460-J0i199402-199601
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2L470-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-2L470-J0i199402-199601
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2L480-B0i199402-199607
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-2L480-B0i199402-199601
W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-2L480-B1i199607
W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1#
main67620-2L480-J0i199402-199607
W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-2L480-J0i199402-199601
W(POWER WINDOW & SPEAKER),DK. BLUE,TRIM8#
67602ARETAINER, DOOR TRIM, LH
main67771-20110i199203-199607
67625BBRACKET, DOOR TRIM, NO.1 RH
main67625-20100i199203-199607
67626BBRACKET, DOOR TRIM, NO.2 RH
main67626-20070i199203-199607
67635BRACKET, DOOR TRIM, NO.1 LH
main67635-20040i199203-199607
67636BRACKET, DOOR TRIM, NO.2 LH
main67636-20020i199203-199607
67651HGRILLE, SPEAKER DOOR, RH
main67651-20050-C0i199203-199402
W(FABRIC SPEAKER GRILLE),BLACK,TRIM2#
main67651-20050-E0i199203-199305
W(FABRIC SPEAKER GRILLE),ANTELOPE,TRIM4#
main67651-20050-J0i199203-199402
W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8#
main67651-20060-C1i199203-199305
BLACK,TRIM2#
sub67651-21010
main67651-20060-C1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),BLACK,TRIM2#
sub67651-21010
main67651-20060-E1i199203-199305
ANTELOPE,TRIM4#
sub67651-21010
main67651-20060-E1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),ANTELOPE,TRIM4#
sub67651-21010
main67651-20060-J1i199203-199305
DK.BLUE,TRIM8#
sub67651-21010
main67651-20060-J1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8#
sub67651-21010
main67651-21010-B0i199402
SHADOW GRAY,TRIM1#
sub67651-21010
main67651-21010-C0i199305-199402
W(*PW & FABRIC SPEAKER GRILLE),BLACK,TRIM2#
sub67651-21010
main67651-21010-C0i199305-199402
BLACK,TRIM2#
sub67651-21010
main67651-21010-J0i199305-199607
DK. BLUE,TRIM8#
sub67651-21010
main67651-21010-J0i199305-199607
W(*PW & FABRIC SPEAKER GRILLE),DK. BLUE,TRIM8#
sub67651-21010
67652CGRILLE, SPEAKER DOOR, LH
main67652-20040-C0i199203-199402
W(FABRIC SPEAKER GRILLE),BLACK,TRIM2#
main67652-20040-E0i199203-199305
W(FABRIC SPEAKER GRILLE),ANTELOPE,TRIM4#
main67652-20040-J0i199203-199402
W(FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8#
main67652-20050-C1i199203-199305
BLACK,TRIM2#
sub67652-21020
main67652-20050-C1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),BLACK,TRIM2#
sub67652-21020
main67652-20050-E1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),ANTELOPE,TRIM4#
sub67652-21020
main67652-20050-E1i199203-199305
ANTELOPE,TRIM4#
sub67652-21020
main67652-20050-J1i199301-199305
W(*PW & FABRIC SPEAKER GRILLE),DK.BLUE,TRIM8#
sub67652-21020
main67652-20050-J1i199203-199305
DK.BLUE,TRIM8#
sub67652-21020
main67652-21020-B0i199402
SHADOW GRAY,TRIM1#
sub67652-21020
main67652-21020-C0i199305-199402
W(*PW & FABRIC SPEAKER GRILLE),BLACK,TRIM2#
sub67652-21020
main67652-21020-C0i199305-199402
BLACK,TRIM2#
sub67652-21020
main67652-21020-J0i199305-199607
W(*PW & FABRIC SPEAKER GRILLE),DK. BLUE,TRIM8#
sub67652-21020
main67652-21020-J0i199305-199607
DK. BLUE,TRIM8#
sub67652-21020
67697COVER, FRONT DOOR TRIM POCKET
main67697-20080-B1i199402
SHADOW GRAY,TRIM1#,RH
sub67697-20080
main67697-20080-C0i199203-199402
BLACK,TRIM2#,RH
sub67697-20080
main67697-20080-E0i199203-199305
ANTELOPE,TRIM4#,RH
sub67697-20080
main67697-20080-J0i199203-199607
DK.BLUE,TRIM8#,RH
sub67697-20080
main67698-20040-B1i199402
SHADOW GRAY,TRIM1#,LH
sub67698-20040
main67698-20040-C0i199203-199402
BLACK,TRIM2#,LH
sub67698-20040
main67698-20040-E0i199203-199305
ANTELOPE,TRIM4#,LH
sub67698-20040
main67698-20040-J0i199203-199607
DK.BLUE,TRIM8#,LH
sub67698-20040
67777POCKET, FRONT DOOR TRIM, RH
main67777-20190-B1i199402
SHADOW GRAY,TRIM1#
main67777-20190-C0i199203-199402
BLACK,TRIM2#
main67777-20190-E0i199203-199305
ANTELOPE,TRIM4#
main67777-20190-J0i199203-199607
DK.BLUE,TRIM8#
67778POCKET, FRONT DOOR TRIM, LH
main67778-20120-B1i199402
SHADOW GRAY,TRIM1#
main67778-20120-C0i199203-199402
BLACK,TRIM2#
main67778-20120-E0i199203-199305
ANTELOPE,TRIM4#
main67778-20120-J0i199203-199607
DK.BLUE,TRIM8#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-20060i199203-199612
RH
sub68171-20090
main68171-20090i199612
RH
main68172-20050i199203-199612
LH
sub68172-20080
main68172-20080i199612
LH
7401
6777122040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22040
9015940229
main90159-40229
9015950326
main90159-50326
9016840068
main90168-40068
9018303026
main90183-03026
9018303092
main90183-03092
9018904102
main90189-04102
9018905003
main90189-05003
9018905150
main90189-05150
9018906018
main90189-06018
9046710151
main90467-10151
9046805047
main90468-05047
9356015016
main93560-15016

32 parts on this diagram · 5 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
