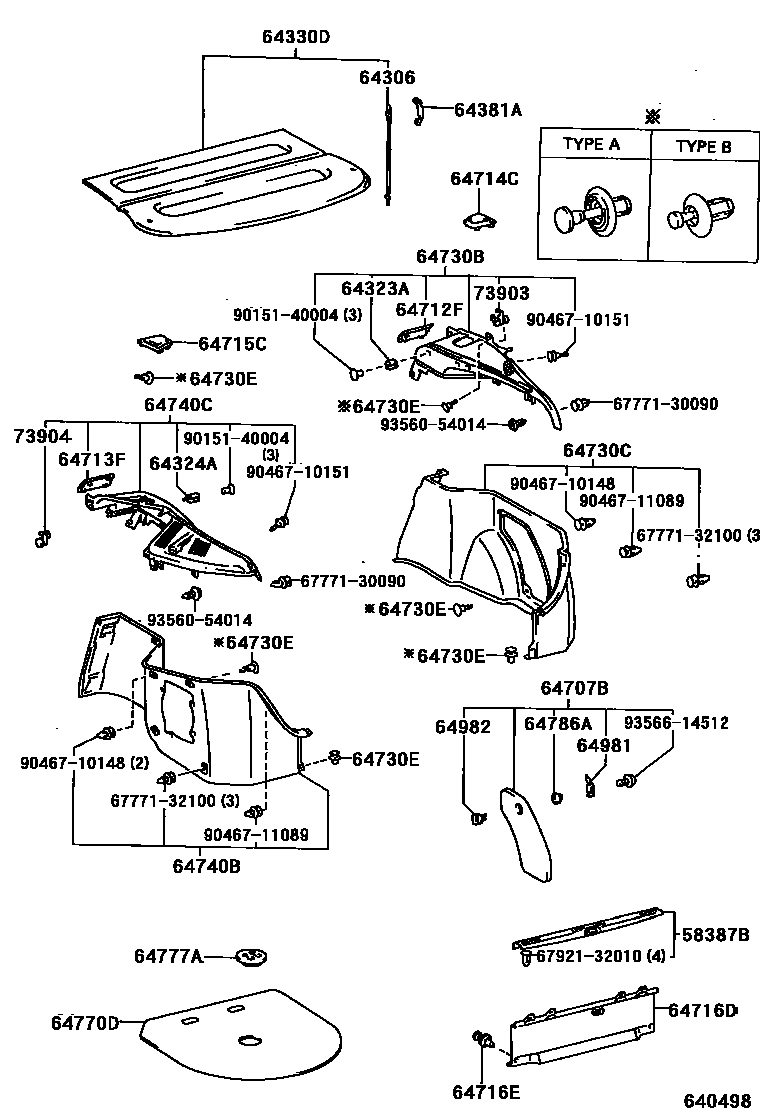

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64381AHANGER, PACKAGE TRAY TRIM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
64712FCOVER, DECK SIDE TRIM, FRONT RH
64713FCOVER, DECK SIDE TRIM, FRONT LH
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM2#
W(3 POINT TYPE REAR SEAT BELT),BLACK,TRIM2#
sub64714-20330
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#
W(3 POINT TYPE REAR SEAT BELT),BLACK,TRIM2#
sub64715-20270
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
BLACK,TRIM2#
BLACK,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
64730CBOARD, DECK TRIM SIDE, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
BLACK,TRIM2#,TYPE A
BLACK,TRIM1#,TYPE A
64740BBOARD, DECK TRIM SIDE, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
64770DCOVER ASSY, SPARE WHEEL
64777ACLAMP, SPARE WHEEL COVER
64786APLATE, JACK COVER
64981STOPPER, WASHER TANK COVER
64982KNOB, COVER
73903BRACKET SUB-ASSY, REAR SHELF, RH
73904BRACKET SUB-ASSY, REAR SHELF, LH
6777130090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30090
6777132100WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32100
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9015140004
main90151-40004
9046710148
main90467-10148
9046710151
main90467-10151
9046711089
main90467-11089
9356054014
main93560-54014
9356614512
main93566-14512
34 parts on this diagram · 1 diagram in section
