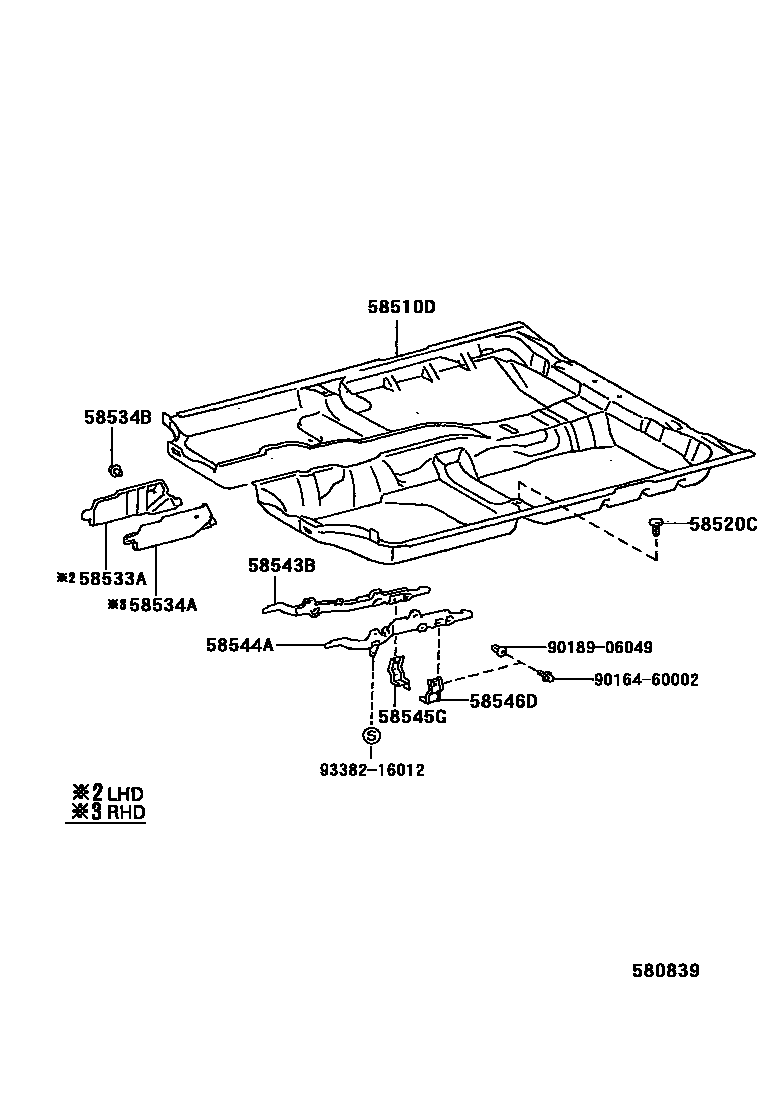

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-2D110-B0iAT190,ST191..JPP..RHD..XL199402-199606

GRAY,TRIM1#

sub58510-2D400

main58510-2D110-C1iAT190,ST191..JPP..RHD..XL199203-199402

BLACK,TRIM2#

sub58510-2D400

main58510-2D110-J0iAT190,ST191..JPP..RHD..XL199203-199305

DK.BLUE,TRIM8#

sub58510-2D400

main58510-2D110-J2iAT190,ST191..JPP..RHD..XL199305-199606

DK.BLUE,TRIM8#

sub58510-2D400

main58510-2D370-B0iAT190..JPP..LHD..XL199402-199601

GRAY,TRIM1#

sub58510-2D410

main58510-2D370-C1iAT190..JPP..LHD..XL199203-199402

BLACK,TRIM2#

sub58510-2D410

main58510-2D370-J1iAT190..JPP..LHD..XL199203-199402

DK.BLUE,TRIM8#

sub58510-2D410

main58510-2D370-J2iAT190..JPP..LHD..XL199402-199601

DK.BLUE,TRIM8#

sub58510-2D410

main58510-2D400-B0iAT190,ST191..JPP..RHD..SED..GL199402-199711

GRAY,TRIM1#

sub58510-2D400

main58510-2D400-C2iAT190,ST191..JPP..RHD..SED..GL199203-199402

BLACK,TRIM2#

sub58510-2D400

main58510-2D400-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

sub58510-2D400

main58510-2D400-J1iAT190,ST191..JPP..RHD..SED..GL199203-199607

DK.BLUE,TRIM8#

sub58510-2D400

main58510-2D410-B0iAT190,CT190,ST191..JPP..LHD..GL199402

GRAY,TRIM1#

sub58510-2D410

main58510-2D410-C2iAT190,CT190,ST191..JPP..LHD..GL199203-199402

BLACK,TRIM2#

sub58510-2D410

main58510-2D410-J1iAT190,CT190,ST191..JPP..LHD..GL199203-199607

DK.BLUE,TRIM8#

sub58510-2D410

main58510-2D420-C2iAT190..JPP..LHD..MTM..XL199203-199402

*EX-USSR,BLACK,TRIM2#

sub58510-2D421

main58510-2D420-J1iAT190..JPP..LHD..MTM..XL199203-199402

*EX-USSR,DK.BLUE,TRIM8#

sub58510-2D421

main58510-2D421-B0iAT190..JPP..LHD..MTM..XL199402-199411

*EX-USSR,SHADOW GRAY,TRIM1#

sub58510-2D422

main58510-2D421-J1iAT190..JPP..LHD..MTM..XL199402-199411

*EX-USSR,DARK BLUE,TRIM8#

sub58510-2D422

main58510-2D470-B0iST191..JPP..LB199402-199606

GRAY,TRIM1#

sub58510-2D470

main58510-2D470-C2iST191..JPP..LB199203-199402

BLACK,TRIM2#

sub58510-2D470

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iAT190,ST191..JPP..RHD..SED..GL199203-199305

BLACK,TRIM2#,4#,8#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190,ST191..JPP..RHD..SED..GL199203-199402

BLACK,TRIM2#,8#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190,CT190,ST191..JPP..SED199402-199607

BLACK,TRIM1#,8#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190,ST191..JPP199607

BLACK,TRIM1#

sub90467-06016

sub90467-07049

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-20010iAT190,CT190,ST191..JPP..LHD199203

58534AMAT, TRANSMISSION COVER

main58534-20010iAT190,ST191..JPP..RHD199203-199711

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-C0iAT190,ST191..JPP..RHD..SED..GL199203-199305

BLACK,TRIM2#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-C0iAT190,ST191..JPP..RHD..SED..GL199203-199402

BLACK,TRIM2#,8#

sub90467-07042

sub90467-06175

main90467-07042-C0iST191..JPP..LB199203-199402

BLACK,TRIM2#

sub90467-07042

sub90467-06175

main90467-07042-C0iST191..JPP..LB199402-199606

BLACK,TRIM1#

sub90467-07042

sub90467-06175

main90467-07042-C0iAT190,CT190,ST191..JPP..SED199402-199607

BLACK,TRIM1#,8#

sub90467-07042

sub90467-06175

58543BBRACKET, FLOOR CARPET, RH

main58543-20030iAT190,ST191..JPP..RHD199203-199711

main58543-20040iAT190,CT190,ST191..JPP..LHD199203

58544ABRACKET, FLOOR CARPET, LH

main58544-20030iAT190,ST191..JPP..RHD199203-199711

main58544-20040iAT190,CT190,ST191..JPP..LHD199203

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20010iAT190,CT190,ST191..JPP199203-199607

58546DBRACKET, FLOOR CARPET, NO.2 LH

main58546-20010iAT190,CT190,ST191..JPP199203-199607

9016460002

main90164-60002

9018906049

main90189-06049

9338216012

main93382-16012

12 parts on this diagram · 2 diagrams in section
