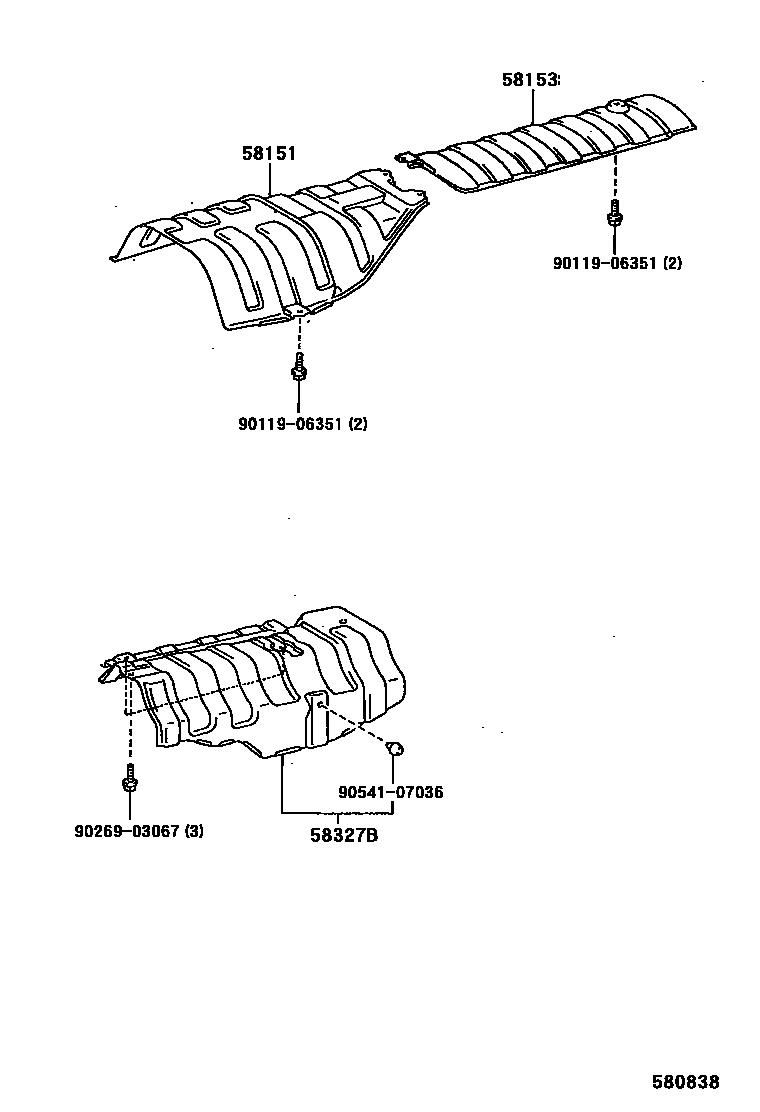

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20080iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199311

sub58151-20081

main58151-20081iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199311-199711

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20100iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199711

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20080iAT190,CT190,ST191..JPP199203-199607

9011906351

main90119-06351

9026903067

main90269-03067

9054107036

main90541-07036

6 parts on this diagram · 1 diagram in section
