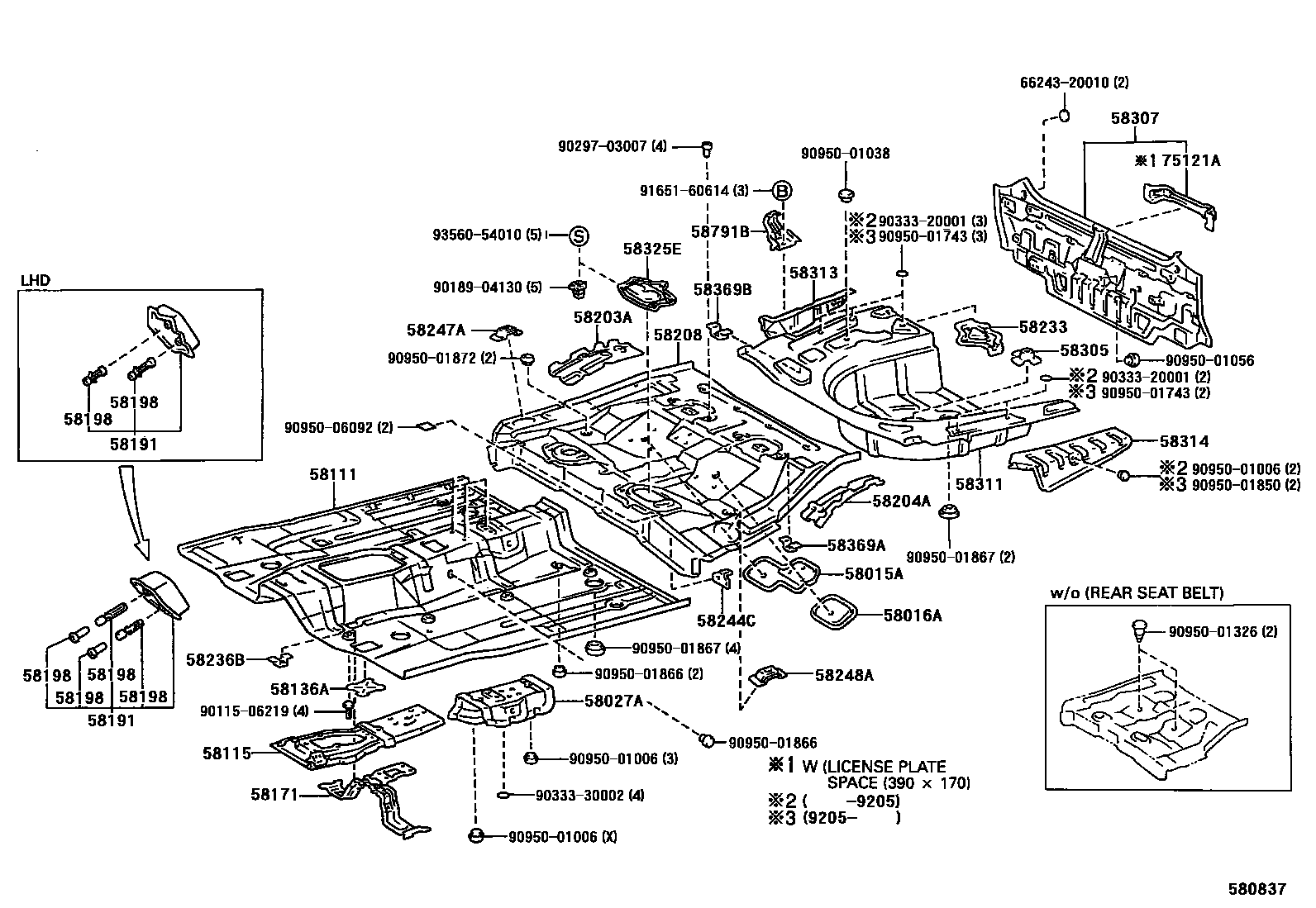

FLOOR PAN & LOWER BACK PANEL

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32040iAT190,ST191..JPP199606-199607

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20070iAT190,CT190,ST191..JPP199306-199501

main58016-20071iAT190,CT190,ST191..JPP199501-199606

sub58016-32031

main58016-32030iAT190,CT190,ST191..JPP199203-199306

sub58016-32031

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20100iAT190,ST191..JPP..RHD199203-199505

main58027-20120iAT190,ST191..JPP..RHD199505-199506

main58027-20160iAT190,ST191..JPP..RHD199607-199703

main58027-20161iAT190,ST191..JPP..RHD199703-199711

main58028-20040iAT190,CT190,ST191..JPP..LHD199203-199506

main58028-20060iAT190,CT190,ST191..JPP..LHD199506-199703

main58028-20061iST191..JPP..LHD199703

58111PAN, FRONT FLOOR

main58111-20160iAT190,CT190,ST191..JPP199203-199505

main58111-20190iAT190,CT190,ST191..JPP199505-199606

main58111-20191iAT190,ST191..JPP199612

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58103-20040iAT190,ST191..JPP..RHD199203-199504

main58103-20041iAT190,ST191..JPP..RHD199504-199606

main58103-20042iAT190,ST191..JPP..RHD199608-199711

main58103-20050iAT190,CT190,ST191..JPP..LHD199203-199504

main58103-20051iAT190,CT190,ST191..JPP..LHD199504-199608

main58103-20052iST191..JPP..LHD199608

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20020iAT190,CT190,ST191..JPP199203-199606

RH

main58136-20030iAT190,CT190,ST191..JPP199203-199606

LH

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20090iAT190,ST191..JPP..RHD199606-199607

main58107-20100iAT190,CT190,ST191..JPP..LHD199203

58191FOOTREST, FRONT FLOOR

main58191-20050iAT190,ST191..JPP..RHD199203-199606

main58192-20050iAT190,CT190,ST191..JPP..LHD199203

58198CLIP, FOOTREST

main58198-20090iAT190,CT190,ST191..JPP..LHD199203

L=39.3

main58198-20120iAT190,CT190,ST191..JPP..LHD199203

L=46.6

main58198-20130iAT190,ST191..JPP..RHD199203-199606

L=100

main58198-20140iAT190,ST191..JPP..RHD199606-199607

L=84

main58198-32020×2iAT190,ST191..JPP..RHD199607-199711

L=28.5

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58213-20090iST191..JPP..LB199203-199501

main58213-20091iST191..JPP..LB199501-199606

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58214-20030iST191..JPP..LB199203-199501

main58214-20031iST191..JPP..LB199501-199606

58208PAN, CENTER FLOOR

main58211-20320iAT190,ST191..JPP..XL199203-199606

main58211-20330iAT190,CT190,ST191..JPP..SED..GL199203-199607

main58211-20360iST191..JPP..LB199203-199606

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-20070iAT190,ST191..JPP199606-199607

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58266-14050×2iAT190,CT190,ST191..JPP199203-199606

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-20020×4iST191..JPP..LB199203-199606

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-20030iAT190,ST191..JPP199607

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58248-20020iAT190,CT190,ST191..JPP..SED199203-199606

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-20040iAT190,CT190,ST191..JPP199203-199606

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-20110iAT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL199203-199402

W(LICENSE PLATE SPACE(390 X 170))

main58307-2B040iAT190,ST191..JPP..RHD..XL199203-199402

W(LICENSE PLATE SPACE(550 X 130))

main58307-2B050iST191..JPP..LB199203-199402

main58307-2B210iAT190,ST191..JPP199607

main58307-2B220iST191..JPP..LB199402-199606

58311PAN, REAR FLOOR

main58311-20320iAT190,ST191..JPP199607

sub58311-21060

58313PANEL, REAR FLOOR SIDE, RH

main58305-20030iAT190,CT190,ST191..JPP..SED199203-199606

main58313-20350iST191..JPP..LB199203-199606

58314PANEL, REAR FLOOR SIDE, LH

main58314-20320iAT190,ST191..JPP199607

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32030iAT190,CT190,ST191..JPP199203-199606

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010×4iAT190,CT190,ST191..JPP199203-199606

58369BBRACKET, FUEL TUBE, NO.3

main58369-20020×2iAT190,ST191..JPP199606-199607

main58369-32010×2iAT190,CT190,ST191..JPP199203-199601

58791BCARRIER, JACK

main58791-20090iAT190,ST191..JPP199607

75121ABRACKET, REAR LICENSE PLATE

main75121-20170iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199402

6624320010PLATE, REAR FENDER SET

main66243-20010

9011506219

main90115-06219

9018904130

main90189-04130

9029703007

main90297-03007

9033320001

main90333-20001

9033330002

main90333-30002

9095001006

main90950-01006

9095001038

main90950-01038

9095001056

main90950-01056

9095001326

main90950-01326

9095001743

main90950-01743

9095001850

main90950-01850

9095001866

main90950-01866

9095001867

main90950-01867

9095001872

main90950-01872

9095006092

main90950-06092

9165160614

main91651-60614

9356054010

main93560-54010

45 parts on this diagram · 1 diagram in section
