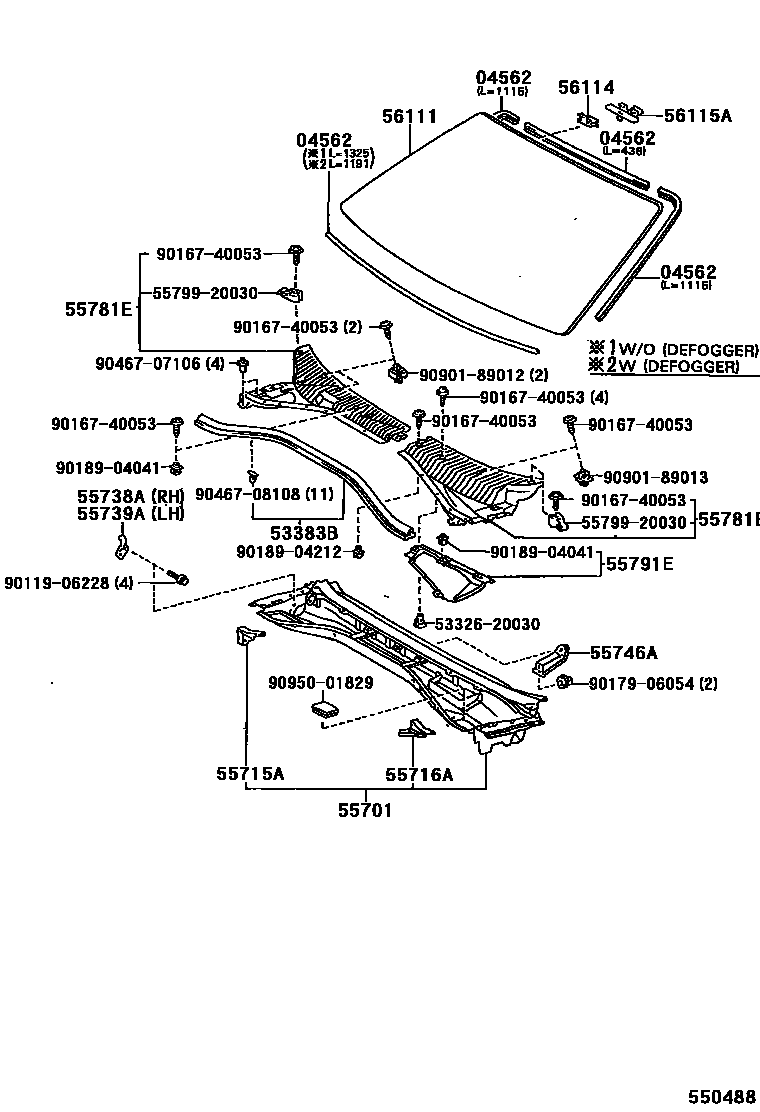

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iST191..JPP199203-199711

53383BSEAL, HOOD TO COWL TOP

main53383-20160iAT190,CT190,ST191..JPP199203-199607

55701PANEL SUB-ASSY, COWL

main55700-20880iAT190,CT190,ST191..JPP..LHD..ATM199203

main55700-20890iAT190,ST191..JPP..LHD..MTM199203

main55700-2B030iAT190,ST191..JPP..RHD199203-199711

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120iAT190,CT190,ST191..JPP199203-199607

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090iAT190,CT190,ST191..JPP199203-199607

55738ASTOPPER, HOOD, RH

main55738-20050iAT190,CT190,ST191..JPP199203-199607

55739ASTOPPER, HOOD, LH

main55739-20050iAT190,CT190,ST191..JPP199203-199607

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-20100iAT190,CT190,ST191..JPP199203-199607

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20130iAT190,CT190,ST191..JPP..LHD199203

RH

main55708-20140iAT190..JPP..LHD..MTM..XL199203-199601

*EX-USSR,RH

main55708-20150iAT190,ST191..JPP..RHD199203-199711

RH

main55708-20160iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199711

INDONESIA SPEC,RH

main55709-20050iAT190,CT190,ST191..JPP..LHD199203

LH

main55709-20060iAT190..JPP..LHD..MTM..XL199203-199601

*EX-USSR,LH

main55709-20070iAT190,ST191..JPP..RHD199203-199711

LH

main55709-20080iAT190..JPP..RHD;ST191..JPP..RHD..SED..GL199203-199711

INDONESIA SPEC,LH

55791ECOVER, HEATER DUCT HOLE

main55790-20010iAT190,ST191..JPP..RHD199203-199711

main55790-20020iAT190,CT190,ST191..JPP..LHD199203

56111GLASS, WINDSHIELD

main56111-2B110iAT190,CT190,ST191..JPP199203-199302

*LAM,T=4.76,BLUE

sub56111-2B111

main56111-2B111iAT190,ST191..JPP199302-199607

*LAM,T=4.76,BLUE

main56111-2B120iAT190,CT190,ST191..JPP199203-199302

*LAM,T=4.76,BLUE,W(TOP SHADE)

sub56111-2B121

main56111-2B121iAT190,ST191..JPP199302-199607

*LAM,T=4.76,BLUE,W(TOP SHADE)

56114RETAINER, WINDSHIELD GLASS

main56114-20010iAT190,CT190,ST191..JPP199203-199302

main56114-20040iAT190,CT190,ST191..JPP199304-199607

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20060iAT190,CT190,ST191..JPP199305-199607

5332620030CLIP, HOOD PROTECTOR

main53326-20030

5579920030COVER, WIPER MOTOR

main55799-20030

9011906228

main90119-06228

9016740053

main90167-40053

9017906054

main90179-06054

9018904041

main90189-04041

9018904212

main90189-04212

9046707106

main90467-07106

9046708108

main90467-08108

9090189012

main90901-89012

9090189013

main90901-89013

9095001829

main90950-01829

25 parts on this diagram · 2 diagrams in section
