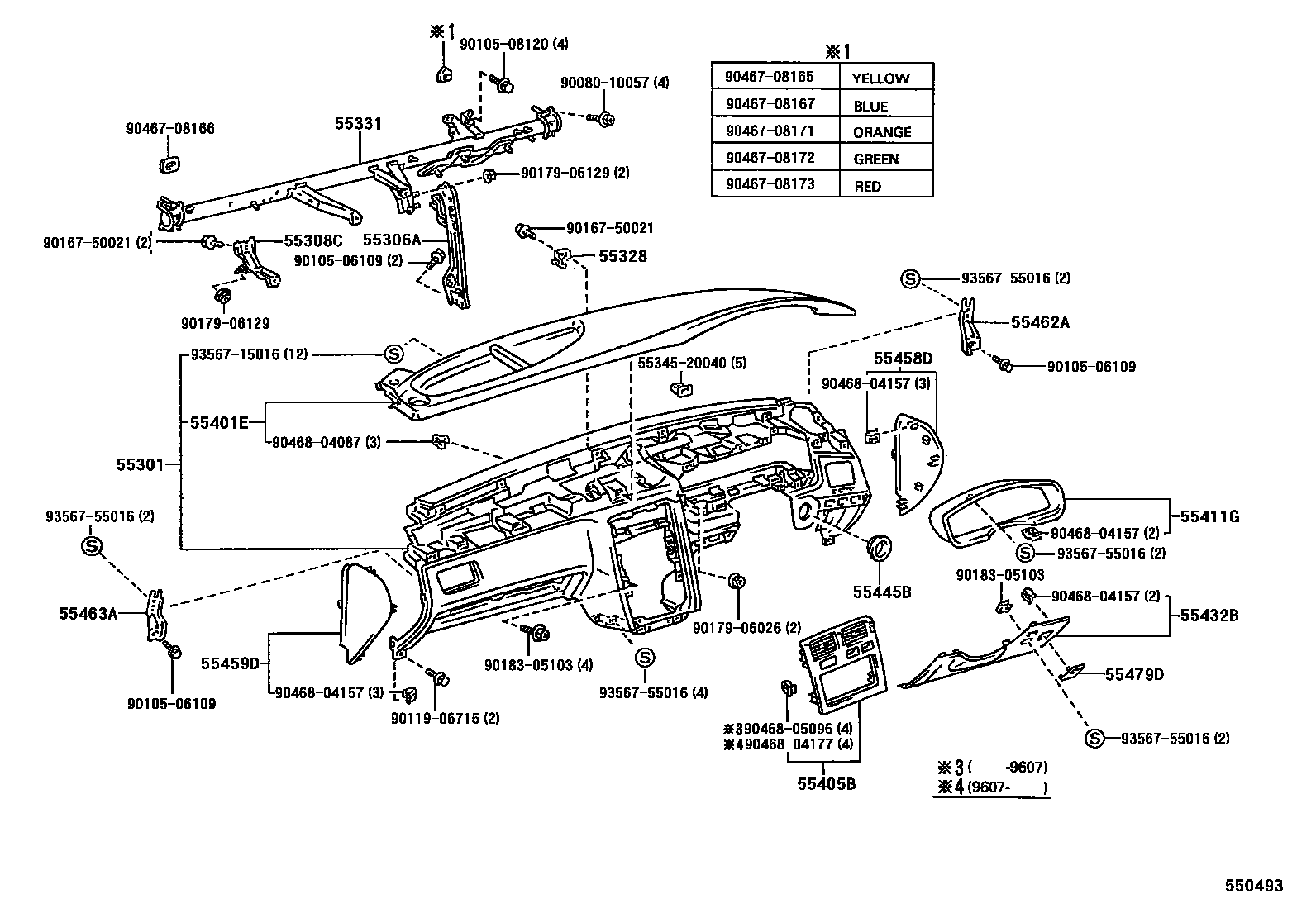

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-20030-B0iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

sub55300-20031

main55300-20030-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

sub55300-20031

main55300-20030-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

sub55300-20031

main55300-20030-J0iAT190,ST191..JPP..RHD..SED199203-199607

DK.BLUE,TRIM8#

sub55300-20031

main55300-20060-B0iAT190,CT190,ST191..JPP..LHD199402

SHADOW GRAY,TRIM1#

main55300-20060-C0iAT190,CT190,ST191..JPP..LHD199203-199402

BLACK,TRIM2#

main55300-20060-J0iAT190,CT190,ST191..JPP..LHD199203-199607

DK.BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20200iAT190,ST191..JPP..RHD199203-199606

main55306-20210iAT190,CT190,ST191..JPP..LHD199203

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20180iAT190,CT190,ST191..JPP199203-199606

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20070×3iAT190,CT190,ST191..JPP199203-199606

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20150iAT190,ST191..JPP..RHD199203-199606

main55330-20160iAT190,CT190,ST191..JPP..LHD199203

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20610-B0iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

main55401-20610-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

main55401-20610-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55401-20610-J0iAT190,ST191..JPP..RHD..SED199203-199607

DK.BLUE,TRIM8#

main55401-20640-B0iAT190,CT190,ST191..JPP..LHD199402

SHADOW GRAY,TRIM1#

main55401-20640-C0iAT190,CT190,ST191..JPP..LHD199203-199402

BLACK,TRIM2#

main55401-20640-J0iAT190,CT190,ST191..JPP..LHD199203-199607

DK.BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20130iAT190,ST191..JPP..RHD199203-199606

main55405-20150iAT190,CT190,ST191..JPP..LHD199203

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-20630iAT190,ST191..JPP..RHD199203-199606

main55411-20640iAT190,CT190,ST191..JPP..LHD199203

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20260-B0iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

main55432-20260-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

main55432-20260-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55432-20260-J0iAT190,ST191..JPP..RHD..SED199203-199607

DK.BLUE,TRIM8#

main55432-20280-B0iAT190,CT190,ST191..JPP..LHD199402

SHADOW GRAY,TRIM1#

main55432-20280-C0iAT190,CT190,ST191..JPP..LHD199203-199402

BLACK,TRIM2#

main55432-20280-J0iAT190,CT190,ST191..JPP..LHD199203-199607

DK.BLUE,TRIM8#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20200iAT190,CT190,ST191..JPP199203-199606

55458DCOVER, INSTRUMENT LOWER, RH

main55458-20040-B0iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55458-20040-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55458-20040-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55458-20040-J0iAT190,CT190,ST191..JPP..SED199203-199607

DK.BLUE,TRIM8#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-20040-B0iAT190,CT190,ST191..JPP199402

SHADOW GRAY,TRIM1#

main55459-20040-C0iAT190,CT190,ST191..JPP199203-199402

BLACK,TRIM2#

main55459-20040-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55459-20040-J0iAT190,CT190,ST191..JPP..SED199203-199607

DK.BLUE,TRIM8#

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-20200iAT190,ST191..JPP199606-199607

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-20130iAT190,CT190,ST191..JPP199203-199606

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-20080-B0iAT190,ST191..JPP..RHD199402-199711

SHADOW GRAY,TRIM1#

main55479-20080-C0iAT190,ST191..JPP..RHD199203-199402

BLACK,TRIM2#

main55479-20080-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main55479-20080-J0iAT190,ST191..JPP..RHD..SED199203-199607

DK.BLUE,TRIM8#

main55479-20090-B0iAT190,CT190,ST191..JPP..LHD199402

SHADOW GRAY,TRIM1#

main55479-20090-C0iAT190,CT190,ST191..JPP..LHD199203-199402

BLACK,TRIM2#

main55479-20090-J0iAT190,CT190,ST191..JPP..LHD199203-199607

DK.BLUE,TRIM8#

5534520040GARNISH, GLOVE COMPARTMENT, UPPER

main55345-20040

9008010057

main90080-10057

9010506109

main90105-06109

9010508120

main90105-08120

9011906715

main90119-06715

9016750021

main90167-50021

9017906026

main90179-06026

9017906129

main90179-06129

9018305103

main90183-05103

9046708165

main90467-08165

9046708166

main90467-08166

9046708167

main90467-08167

9046708171

main90467-08171

9046708172

main90467-08172

9046708173

main90467-08173

9046804087

main90468-04087

9046804157

main90468-04157

9046804177

main90468-04177

9046805096

main90468-05096

9356715016

main93567-15016

9356755016

main93567-55016

36 parts on this diagram · 4 diagrams in section
