HOOD & FRONT FENDER

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-06084iAT190,CT190,ST191..JPP¥80199203-199311

main90467-07163iAT190,CT190,ST191..JPP¥130199311-199607

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20080iAT190,CT190,ST191..JPP¥2,090199203-199607

53301HOOD SUB-ASSY

main53301-20450iAT190,CT190,ST191..JPP¥50,500199203-199607

53301BCUSHION, HOOD BUMPER

main90541-15111iAT190,CT190,ST191..JPP¥330199203-199607

53341BINSULATOR, HOOD

main53341-20240iCT190,ST191..JPP..LHD¥12,700199203-199402

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iCT190,ST191..JPP..LHD¥110199203-199402

53349ARETAINER, HOOD INSULATOR

main53349-20020iCT190,ST191..JPP..LHD¥300199203-199402

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20130iAT190,CT190,ST191..JPP¥2,090199203-199607

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAT190,ST191..JPP¥100199203-199607

53384ABUMPER, FENDER TO HOOD

main53384-20040iAT190,CT190,ST191..JPP¥460199203-199607

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iAT190,CT190,ST191..JPP¥370199203-199305

main53386-20020iAT190,ST191..JPP¥370199305-199607

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAT190,CT190,ST191..JPP¥370199402-199607

main53385-20020iAT190,CT190,ST191..JPP¥370199203-199305

NO.2

main53385-20020iCT190..JPP¥370199305-199402

NO.1

main53386-20020iAT190,CT190,ST191..JPP¥370199203-199305

NO.1

main53386-20020iCT190..JPP¥370199305-199402

NO.2

53393BPROTECTOR, HOOD, FRONT

main53393-20030iCT190..JPP¥450199203-199601

53801FENDER SUB-ASSY, FRONT RH

main53801-2B260iAT190..JPP..RHD..XL¥40,600199203-199601

W(LICENSE PLATE SPACE(390 X 170))

main53801-2B260iAT190,ST191..JPP¥40,600199203-199607

main53801-2B270iAT190,CT190,ST191..JPP¥40,600199203-199607

W(LICENSE PLATE SPACE(550 X 130))

53802FENDER SUB-ASSY, FRONT LH

main53802-2B260iAT190..JPP..LHD..XL;AT190,CT190,ST191..JPP..SED..GL¥40,600199203-199607

main53802-2B260iAT190..JPP..RHD..XL¥40,600199203-199601

W(LICENSE PLATE SPACE(390 X 170))

main53802-2B270iAT190,CT190,ST191..JPP¥40,600199203-199607

W(LICENSE PLATE SPACE(550 X 130))

53833BPANEL, FRONT FENDER SIDE, RH

main53083-20010iAT190,CT190,ST191..JPP¥2,110199203-199607

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53084-20010iAT190,CT190,ST191..JPP¥2,110199203-199607

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-20070iAT190,CT190,ST191..JPP¥820199203-199607

53836ABRACE, FRONT FENDER TO APRON, LH

main53804-20020iAT190,CT190,ST191..JPP¥880199203-199607

53875ALINER, FRONT FENDER, RH

main53875-20240iAT190,ST191..JPP¥6,700199203-199607

53876ALINER, FRONT FENDER, LH

main53876-20250iAT190,ST191..JPP¥6,700199203-199607

53878CSPACER, FRONT FENDER

main53878-20030iAT190,CT190,ST191..JPP¥240199203-199607

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAT190,ST191..JPP¥230199203-199607

NO.3

main53879-16010iAT190,CT190,ST191..JPP¥220199203-199607

NO.1

main53879-20020iAT190,CT190,ST191..JPP¥280199203-199607

NO.2

53882FSEAL, FRONT FENDER

main53882-16030iAT190,CT190,ST191..JPP¥60199203-199607

9011906353

main90119-06353¥160

9011906398

main90119-06398¥70

9011906412

main90119-06412¥120

9015950269

main90159-50269¥70

9015960259

main90159-60259¥100

9015960364

main90159-60364¥120

9015960529

main90159-60529¥110

9018906049

main90189-06049¥130

9018906076

main90189-06076¥80

9018906100

main90189-06100¥130

9018906157

main90189-06157¥80

9018906192

main90189-06192¥130

9033330002

main90333-30002¥70

9046707091

main90467-07091¥140

9095001173

main90950-01173¥170

9095001392

main90950-01392¥100

9095006052

main90950-06052¥240

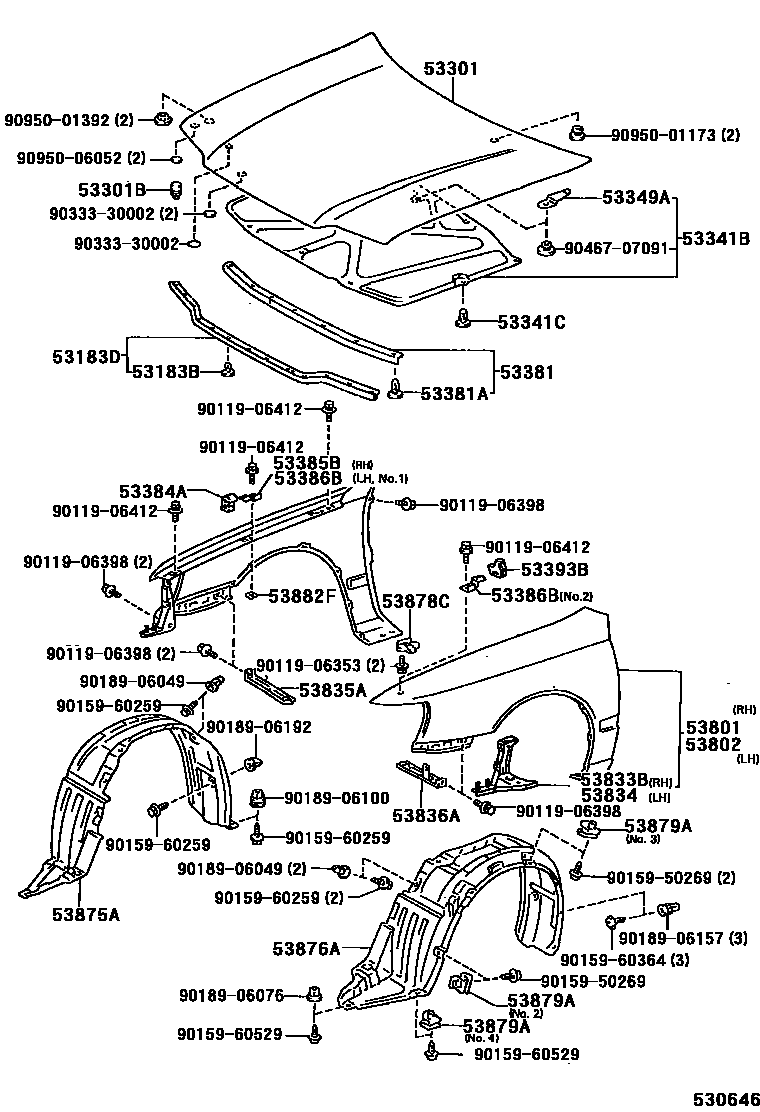

41 parts on this diagram · 1 diagram in section
