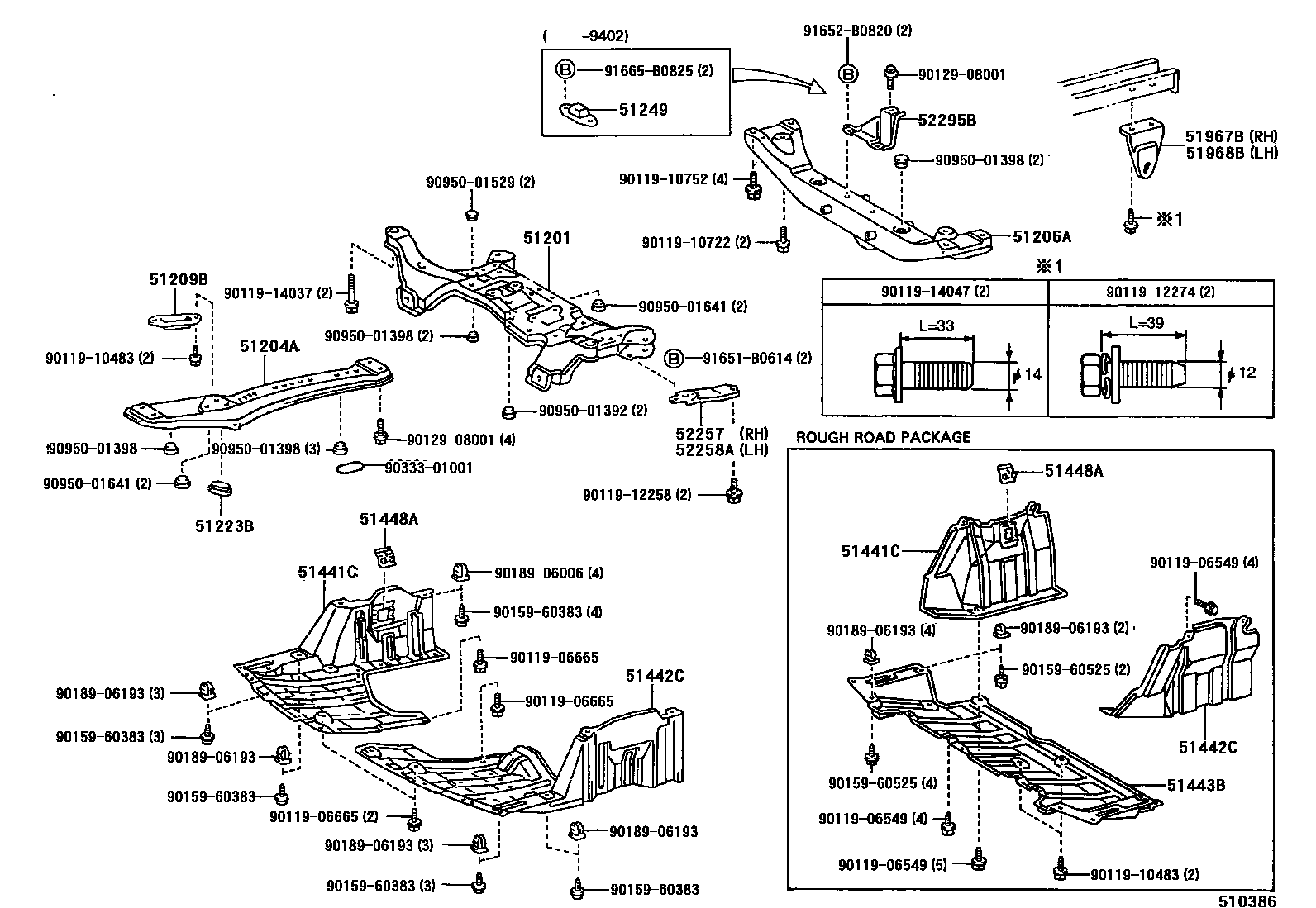

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20250iAT190,ST191..JPP..RHD199203-199211

main51201-20251iAT190,ST191..JPP..RHD199211-199402

main51201-20252iAT190,ST191..JPP..RHD199402-199601

main51201-20260iAT190,CT190,ST191..JPP..LHD199203-199402

main51201-20261iAT190,CT190,ST191..JPP..LHD199402-199601

main51201-20320iAT190,ST191..JPP..RHD199606-199607

main51201-20330iST191..JPP..LHD199601

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT190,CT190,ST191..JPP199203-199606

main51204-20111iST191..JPP199711

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20050iAT190,ST191..JPP199607

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iAT190,CT190,ST191..JPP199203-199606

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT190,CT190,ST191..JPP199203-199606

51249DAMPER, REAR SUSPENSION MEMBER

main51249-20020iAT190,CT190,ST191..JPP199203-199402

51441CCOVER, ENGINE UNDER, RH

main51441-20310iAT190,CT190,ST191..JPP199203-199312

main51441-20311iAT190,CT190,ST191..JPP199312-199405

main51441-20312iAT190,CT190,ST191..JPP199405-199512

main51441-20313iAT190,ST191..JPP199607

main51441-20320iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199607

ROUGH ROAD PACKAGE

main51441-20420iAT190,ST191..JPP199710

ROUGH ROAD PACKAGE

51442CCOVER, ENGINE UNDER, LH

main51442-20370iAT190,ST191..JPP..MTM199203-199512

main51442-20371iAT190,ST191..JPP..MTM199512-199606

main51442-20380iAT190,CT190,ST191..JPP..ATM199203-199512

main51442-20381iAT190,CT190,ST191..JPP..ATM199512-199606

main51442-20400iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199607

ROUGH ROAD PACKAGE

main51442-20530iAT190,ST191..JPP199710

ROUGH ROAD PACKAGE

51443BCOVER, ENGINE UNDER, NO.3

main51443-20080iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199607

ROUGH ROAD PACKAGE

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT190,CT190,ST191..JPP199203-199606

51967BHOOK, TRANSPORT, REAR RH

main51967-20160iAT190,CT190,ST191..JPP199203-199606

51968BHOOK, TRANSPORT, REAR LH

main51968-20090iAT190,CT190,ST191..JPP199203-199606

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT190,CT190,ST191..JPP199203-199606

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT190,CT190,ST191..JPP199203-199606

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20020iAT190,CT190,ST191..JPP199402-199606

9011906549

main90119-06549

9011906665

main90119-06665

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011912274

main90119-12274

9011914037

main90119-14037

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9015960525

main90159-60525

9018906006

main90189-06006

9018906193

main90189-06193

9033301001

main90333-01001

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91651B0614

main91651-B0614

91652B0820

main91652-B0820

91665B0825

main91665-B0825

37 parts on this diagram · 1 diagram in section
