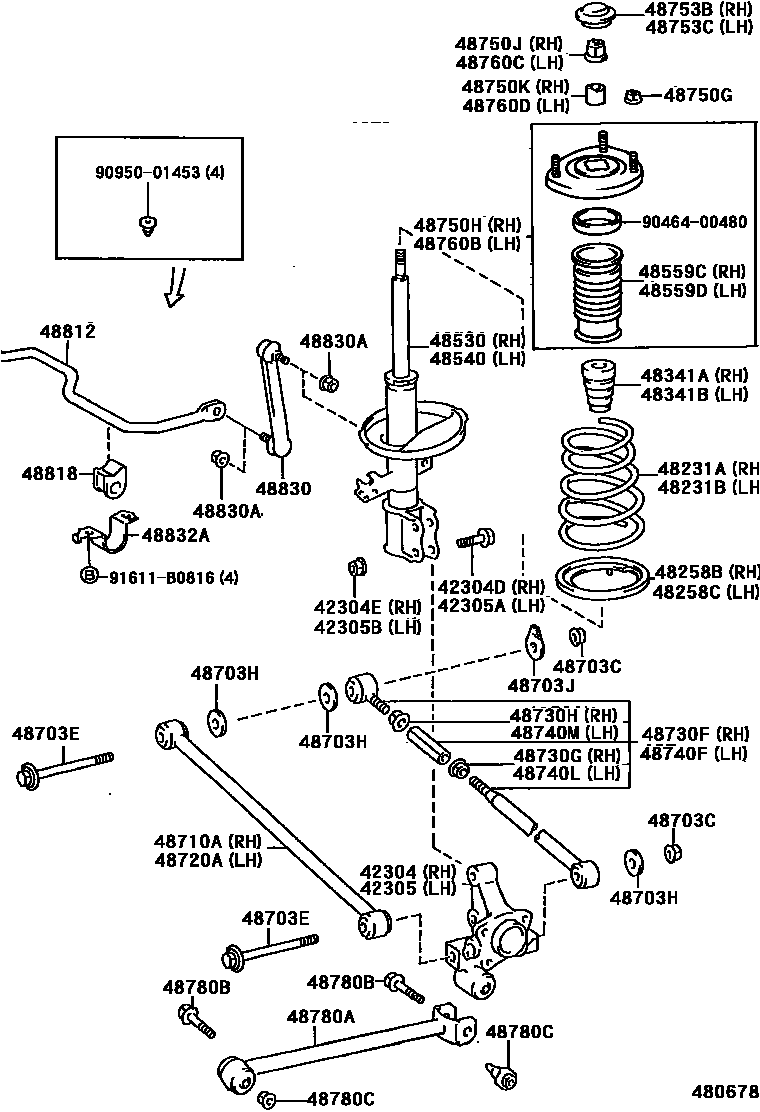

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20140iAT190,CT190,ST191..JPP199203-199601

sub42304-20320

main42304-20160iAT190..JPP..RHD..XL199209-199402

THAILAND SPEC & W(ABS)

sub42304-20300

main42304-20160iST191..JPP..GL;AT190..JPP..RHD..GL199203-199601

W(ABS)

sub42304-20300

main42304-20180iST191..JPP199203-199601

W(REAR DISC BRAKE)

sub42304-20240

main42304-20190iST191..JPP..LHD199305-199412

HARSH ROAD PACKAGE & W(*66 & REAR DISC BRAKE)

sub42304-20380

main42304-20190iST191..JPP..LHD199412-199601

W(ABS) & MIDDLE EAST SPEC

sub42304-20380

main42304-20190iST191..JPP..RHD..GL199203-199601

W(ABS & REAR DISC BRAKE)

sub42304-20380

main42304-20240iST191..JPP199601-199805

W(REAR DISC BRAKE)

main42304-20300iAT190,ST191..JPP..GL199601-199805

W(ABS)

main42304-20320iAT190,ST191..JPP199601-199805

main42304-20380iST191..JPP..LHD199601-199805

W(ABS) & MIDDLE EAST SPEC

main42304-20380iST191..JPP..RHD..GL199601-199702

W(ABS & REAR DISC BRAKE)

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iAT190,CT190,ST191..JPP199203-199607

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iAT190,CT190,ST191..JPP199203-199607

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20140iAT190,CT190,ST191..JPP199203-199601

sub42305-20320

main42305-20160iST191..JPP..GL;AT190..JPP..RHD..GL199203-199601

W(ABS)

sub42305-20300

main42305-20160iAT190..JPP..RHD..XL199209-199402

THAILAND SPEC & W(ABS)

sub42305-20300

main42305-20180iST191..JPP199203-199601

W(REAR DISC BRAKE)

sub42305-20240

main42305-20190iST191..JPP..RHD..GL199412-199601

W(ABS) & MIDDLE EAST SPEC

sub42305-20380

main42305-20190iST191..JPP..RHD..GL199203-199601

W(ABS & REAR DISC BRAKE)

sub42305-20380

main42305-20190iST191..JPP..LHD199305-199412

HARSH ROAD PACKAGE & W(*66 & REAR DISC BRAKE)

sub42305-20380

main42305-20240iST191..JPP199601-199805

W(REAR DISC BRAKE)

main42305-20300iST191..JPP..LHD199601-199805

W(ABS)

main42305-20320iAT190,ST191..JPP199601-199805

main42305-20380iST191..JPP..LHD199601-199702

W(ABS) & MIDDLE EAST SPEC

main42305-20380iST191..JPP..RHD..GL199601-199805

W(ABS & REAR DISC BRAKE)

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iAT190,CT190,ST191..JPP199203-199607

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iAT190,ST191..JPP199203-199607

48231ASPRING, COIL, REAR RH

main48231-2D260iAT190..JPP199402-199711

HARSH ROAD PACKAGE

main48231-2D350iAT190,CT190..JPP;ST191..JPP..RHD..SED..GL199305-199402

HARSH ROAD PACKAGE OR W(*66) OR W(*66 & REAR DISC BRAKE)

main48231-2D350iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199402

HARSH ROAD PACKAGE

main48231-2D380iAT190..JPP..RHD..MTM199209-199402

THAILAND SPEC

main48231-2D500iST191..JPP..LB199203-199402

sub48231-21100

main48231-2D610iST191..JPP..RHD..SED..GL199205-199209

THAILAND SPEC

main48231-2D610iCT190..JPP199203-199402

main48231-2D660iST191..JPP..SED..GL199203-199402

sub48231-2D610

main48231-2D660iAT190..JPP..RHD..MTM..GL199205-199209

THAILAND SPEC

sub48231-2D610

main48231-2D660iST191..JPP..LHD199305-199402

W(ABS & REAR DISC BRAKE)

sub48231-2D610

main48231-2D670iAT190..JPP..RHD..XL199205-199209

INDONESIA SPEC

sub48231-2B201

main48231-2D670iAT190..JPP199203-199702

sub48231-2B201

main48231-2G060iST191..JPP..LHD199412-199702

W(ABS) & MIDDLE EAST SPEC

main48231-2G060iST191..JPP..LHD199402-199412

W(ABS & REAR DISC BRAKE)

main48231-2G060iCT190,ST191..JPP..SED..GL199402-199805

main48231-2G190iCT190,ST191..JPP..SED..GL199402-199805

HARSH ROAD PACKAGE

48231BSPRING, COIL, REAR LH

main48231-2D260iAT190..JPP199402-199711

HARSH ROAD PACKAGE

main48231-2D350iAT190,CT190..JPP;ST191..JPP..RHD..SED..GL199203-199402

HARSH ROAD PACKAGE

main48231-2D350iAT190,CT190..JPP;ST191..JPP..RHD..SED..GL199305-199402

HARSH ROAD PACKAGE OR W(*66) OR W(*66 & REAR DISC BRAKE)

main48231-2D380iAT190..JPP..RHD..MTM199209-199402

THAILAND SPEC

main48231-2D500iST191..JPP..LB199203-199402

sub48231-21100

main48231-2D610iST191..JPP..RHD..SED..GL199205-199209

THAILAND SPEC

main48231-2D610iCT190..JPP199203-199402

main48231-2D660iST191..JPP..SED..GL199203-199402

sub48231-2D610

main48231-2D660iST191..JPP..LHD199305-199402

W(ABS & REAR DISC BRAKE)

sub48231-2D610

main48231-2D660iAT190..JPP..RHD..MTM..GL199205-199209

THAILAND SPEC

sub48231-2D610

main48231-2D670iAT190..JPP..GL;AT190..JPP..LHD..XL199203-199702

sub48231-2B201

main48231-2D670iAT190..JPP..RHD..XL199205-199209

INDONESIA SPEC

sub48231-2B201

main48231-2G060iST191..JPP..LHD199412-199702

W(ABS) & MIDDLE EAST SPEC

main48231-2G060iST191..JPP..LHD199402-199412

W(ABS & REAR DISC BRAKE)

main48231-2G060iCT190,ST191..JPP..SED..GL199402-199805

main48231-2G190iCT190,ST191..JPP..SED..GL199402-199805

HARSH ROAD PACKAGE

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32010iAT190,CT190,ST191..JPP199203-199607

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32010iAT190,CT190,ST191..JPP199203-199805

main48258-32010iAT190..JPP..GL;CT190,ST191..JPP;AT190..JPP..LHD..XL199209-199402

THAILAND SPEC

main48258-32010iST191..JPP..XL;ST191..JPP..LB;AT190,CT190..JPP199402-199412

W(ABS) & MIDDLE EAST SPEC

main48258-32010iST191..JPP..RHD..SED..GL199402-199702

NEW ZEALAND SPEC;THAILAND SPEC;W(ABS)

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-20210iAT190..JPP..RHD..XL199209-199402

HARSH ROAD PACKAGE

main48341-20210iAT190,CT190..JPP199203-199711

main48341-32051iST191..JPP199203-199212

sub48341-32052

main48341-32052iST191..JPP199212-199606

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-20210iAT190..JPP..RHD..XL199209-199402

HARSH ROAD PACKAGE

main48341-20210iAT190,CT190..JPP199203-199711

main48341-32051iST191..JPP199203-199212

sub48341-32052

main48341-32052iST191..JPP199212-199606

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20730iAT190..JPP..RHD..XL199205-199209

INDONESIA SPEC

sub48530-2B310

main48530-20730iAT190..JPP..LHD..XL;AT190,CT190..JPP..GL199203-199402

sub48530-2B310

main48530-20760iAT190..JPP..RHD..MTM..GL199205-199607

THAILAND SPEC

main48530-20760iAT190..JPP..RHD..XL199203-199711

main48530-20760iAT190..JPP..RHD..MTM..GL199409-199702

INDONESIA SPEC OR THAILAND SPEC

main48530-20800iAT190,CT190..JPP199203-199711

HARSH ROAD PACKAGE

main48530-20820iST191..JPP..LHD199203-199805

HARSH ROAD PACKAGE

main48530-20820iST191..JPP..LHD199305-199402

HARSH ROAD PACKAGE OR W(*66) OR W(*66 & REAR DISC BRAKE)

main48530-29455iST191..JPP..LHD199408-199412

W(ABS & REAR DISC BRAKE)

sub48530-29765

main48530-29455iST191..JPP..LHD199412-199702

W(ABS) & MIDDLE EAST SPEC

sub48530-29765

main48530-29455iST191..JPP..SED..GL199408-199805

sub48530-29765

main48530-2B040iST191..JPP199203-199702

W(ABS & REAR DISC BRAKE)

sub48530-29765

main48530-2B070iST191..JPP..RHD..SED..GL199205-199702

THAILAND SPEC

sub48530-2B030

main48530-2B340iST191..JPP..SED..GL199402-199408

W(ABS & REAR DISC BRAKE)

sub48530-29765

main48530-2B470iAT190,CT190..JPP199402-199702

sub48530-2B310

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20730iAT190..JPP..LHD..XL;AT190,CT190..JPP..GL199203-199402

sub48540-2B310

main48540-20730iAT190..JPP..RHD..XL199205-199209

INDONESIA SPEC

sub48540-2B310

main48540-20760iAT190..JPP199203-199711

main48540-20760iAT190..JPP..RHD..MTM199205-199607

THAILAND SPEC

main48540-20760iAT190..JPP..RHD..MTM..GL199409-199702

INDONESIA SPEC OR THAILAND SPEC

main48540-20800iAT190,CT190..JPP199203-199711

HARSH ROAD PACKAGE

main48540-20820iST191..JPP..RHD..SED..GL199305-199402

HARSH ROAD PACKAGE OR W(*66 & REAR DISC BRAKE)

main48540-20820iST191..JPP..SED..GL199203-199805

HARSH ROAD PACKAGE

main48540-29155iST191..JPP..LHD199408-199412

W(ABS & REAR DISC BRAKE)

sub48540-29315

main48540-29155iST191..JPP..SED..GL199408-199805

sub48540-29315

main48540-29155iST191..JPP..LHD199412-199702

W(ABS) & MIDDLE EAST SPEC

sub48540-29315

main48540-2B040iST191..JPP..RHD..SED..GL199402-199702

NEW ZEALAND SPEC

sub48540-29315

main48540-2B040iST191..JPP..LHD199305-199402

W(ABS & REAR DISC BRAKE)

sub48540-29315

main48540-2B040iST191..JPP199203-199606

sub48540-29315

main48540-2B070iST191..JPP..RHD..SED..GL199205-199702

THAILAND SPEC

sub48540-2B030

main48540-2B340iST191..JPP..SED..GL199402-199408

W(ABS & REAR DISC BRAKE)

sub48540-2B040

main48540-2B470iAT190,CT190..JPP199402-199702

sub48540-2B310

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-20040iAT190..JPP..RHD..XL199209-199402

HARSH ROAD PACKAGE OR THAILAND SPEC,MARUYASU

main48559-20040iAT190,CT190,ST191..JPP199203-199711

MARUYASU

main48559-20040iST191..JPP199711

main48559-20060iAT190..JPP..RHD..XL199308-199402

TOYOGOMU

sub48559-20040

main48559-20060iAT190..JPP..GL;CT190,ST191..JPP;AT190..JPP..LHD..XL199308-199402

HARSH ROAD PACKAGE OR THAILAND SPEC,TOYOGOMU

sub48559-20040

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-20040iAT190,CT190,ST191..JPP199203-199711

MARUYASU

main48559-20040iAT190..JPP..GL;CT190,ST191..JPP;AT190..JPP..LHD..XL199209-199402

HARSH ROAD PACKAGE OR THAILAND SPEC,MARUYASU

main48559-20040iST191..JPP199711

main48559-20060iAT190..JPP..GL;CT190,ST191..JPP;AT190..JPP..LHD..XL199308-199402

TOYOGOMU

sub48559-20040

main48559-20060iAT190..JPP..GL;CT190,ST191..JPP;AT190..JPP..LHD..XL199308-199402

HARSH ROAD PACKAGE OR THAILAND SPEC,TOYOGOMU

sub48559-20040

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14019iAT190,CT190,ST191..JPP199203-199607

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-09001iAT190,ST191..JPP199203-199607

*14-1.50PX260-26,BODY SIDE

main90901-19001iAT190,ST191..JPP199203-199607

*14-1.50PX260-26,CARRIER SIDE

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017iAT190,CT190,ST191..JPP199203-199607

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-20030iAT190,ST191..JPP199601-199607

main48715-32010iAT190,CT190,ST191..JPP199203-199601

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20190iST191..JPP..RHD..SED..GL199205-199702

THAILAND SPEC

main48710-20230iAT190,ST191..JPP199203-199607

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20190iST191..JPP..RHD..SED..GL199205-199702

THAILAND SPEC

main48710-20230iAT190,CT190,ST191..JPP199203-199607

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-20160iST191..JPP..GL;AT190,CT190..JPP199203-199607

main48730-20170iST191..JPP..RHD..GL199203-199402

NEW ZEALAND SPEC

sub48730-20210

main48730-20170iST191..JPP..XL199203-199606

sub48730-20210

main48730-20170iST191..JPP..RHD..SED..GL199205-199702

NEW ZEALAND SPEC OR THAILAND SPEC

sub48730-20210

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT190,CT190,ST191..JPP199203-199607

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT190,CT190,ST191..JPP199203-199607

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-20050iAT190,CT190..JPP;ST191..JPP..SED..GL199203-199607

main48740-20060iST191..JPP..LB199203-199402

NEW ZEALAND SPEC

sub48730-20210

main48740-20060iST191..JPP..XL;ST191..JPP..LB199203-199606

sub48730-20210

main48740-20060iST191..JPP..RHD..SED..GL199205-199702

NEW ZEALAND SPEC OR THAILAND SPEC

sub48730-20210

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT190,CT190,ST191..JPP199203-199607

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT190,CT190,ST191..JPP199203-199607

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122iAT190,CT190,ST191..JPP199203-199607

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-20100iAT190,CT190,ST191..JPP199203-199708

sub48750-21020

main48750-21020iAT190,ST191..JPP199708

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAT190,CT190,ST191..JPP199203-199506

main94184-61400iAT190,CT190,ST191..JPP199506-199607

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iAT190,CT190,ST191..JPP199203-199407

sub90387-15027

main90387-15027iAT190,CT190,ST191..JPP199407-199607

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iAT190,CT190,ST191..JPP199203-199607

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iAT190,CT190,ST191..JPP199203-199607

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-20100iAT190,CT190,ST191..JPP199203-199708

sub48750-21020

main48750-21020iAT190,ST191..JPP199708

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAT190,CT190,ST191..JPP199203-199506

main94184-61400iAT190,CT190,ST191..JPP199506-199607

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iAT190,CT190,ST191..JPP199203-199407

sub90387-15027

main90387-15027iAT190,CT190,ST191..JPP199407-199607

48780AROD ASSY, STRUT, REAR

main48780-20080iAT190,CT190,ST191..JPP199203-199607

48780BBOLT(FOR STRUT ROD)

main90119-12131iAT190,ST191..JPP199203-199607

48780CNUT(FOR STRUT ROD)

main90179-12062iAT190,CT190,ST191..JPP199203-199407

CARRIER SIDE

main90179-12091iAT190,ST191..JPP199407-199607

CARRIER SIDE

main90179-12114iAT190,CT190,ST191..JPP199203-199607

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-05030iCT190,ST191..JPP..SED..GL199408-199702

(L)

main48812-20550iAT190..JPP..RHD..MTM..GL;ST191..JPP..RHD..SED..GL199402-199702

INDONESIA SPEC OR THAILAND SPEC

main48812-20550iAT190..JPP..RHD..XL;CT190,ST191..JPP..SED..GL199203-199711

main48812-20550iAT190..JPP..RHD..MTM..GL199205-199607

THAILAND SPEC

main48812-20700iST191..JPP..LHD199402-199702

(J)

main48812-20750iST191..JPP..LB199203-199402

main48812-20770iST191..JPP..XL;ST191..JPP..LB199402-199606

main48812-20770iST191..JPP..XL199203-199702

NEW ZEALAND SPEC

48818BUSH, STABILIZER, REAR

main48818-20260iCT190,ST191..JPP..SED..GL199402-199702

main48818-20280iAT190..JPP..RHD..XL;AT190..JPP..ATM..GL199205-199607

THAILAND SPEC

main48818-20280iAT190..JPP..RHD..XL;CT190,ST191..JPP..SED..GL199203-199711

main48818-20280iAT190..JPP..RHD199402-199702

INDONESIA SPEC OR THAILAND SPEC

main48818-20300iST191..JPP..LB199203-199402

main48818-20310iST191..JPP..XL199203-199702

NEW ZEALAND SPEC

main48818-20310iST191..JPP..XL;ST191..JPP..LB199402-199606

48830LINK ASSY, REAR STABILIZER

main48830-20010iST191..JPP..XL199205-199607

THAILAND SPEC

main48830-20010iST191..JPP..XL;ST191..JPP..LB199203-199711

main48830-20010iST191..JPP..RHD..SED..GL199205-199702

NEW ZEALAND SPEC OR THAILAND SPEC

main48830-20010iAT190..JPP..RHD..MTM..GL199409-199702

INDONESIA SPEC OR THAILAND SPEC

main48830-20010iST191..JPP..RHD..GL199203-199402

NEW ZEALAND SPEC

main48830-32010iCT190,ST191..JPP..GL199203-199402

sub48830-20010

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iCT190,ST191..JPP;AT190..JPP..RHD..XL199203-199702

main90179-10054iAT190..JPP..RHD..MTM..GL199205-199607

THAILAND SPEC

main90179-10054iAT190..JPP..RHD..MTM..GL199409-199702

INDONESIA SPEC OR THAILAND SPEC

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20080iAT190,ST191..JPP199203-199702

main48832-20080iAT190..JPP..RHD..MTM..GL199205-199607

THAILAND SPEC

main48832-20080iAT190..JPP..RHD..MTM..GL199409-199702

INDONESIA SPEC OR THAILAND SPEC

9046400480

main90464-00480

9095001453

main90950-01453

91611B0816

main91611-B0816

48 parts on this diagram · 1 diagram in section
