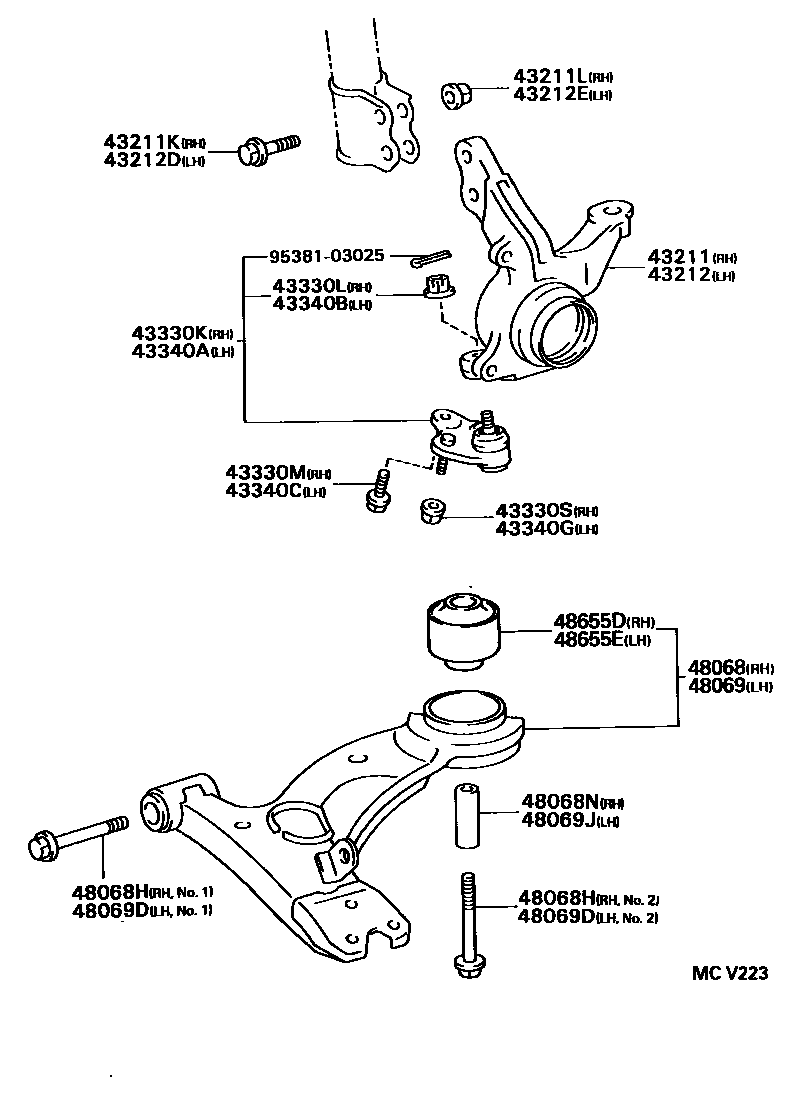

FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43211LNUT (FOR STEERING KNUCKLE RH)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43212ENUT (FOR STEERING KNUCKLE LH)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
ARM NO.1
ARM NO.2
48068NCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
ARM NO.1
ARM NO.2
48069JCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9538103025
main95381-03025
23 parts on this diagram · 2 diagrams in section
