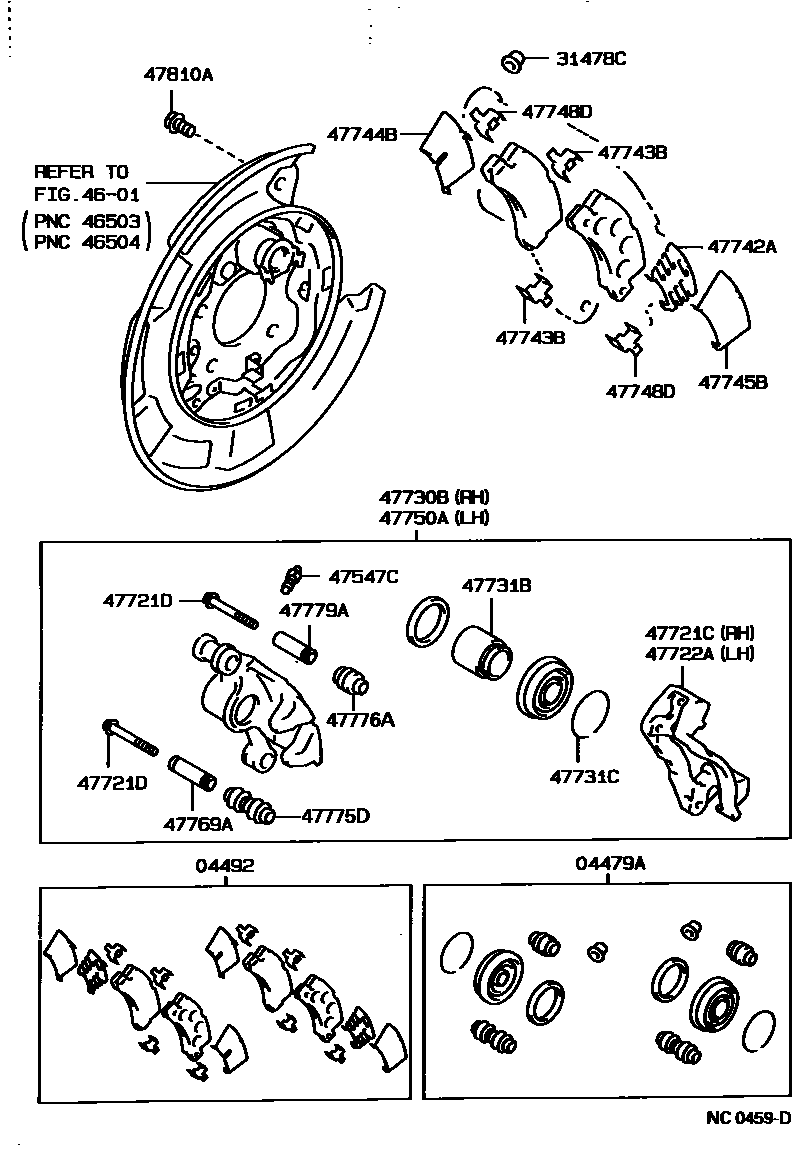

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090iST191..JPP¥2,400199203-199606

04492PAD KIT, DISC BRAKE, REAR

main04492-20080iST191..JPP¥10,300199203-199309

sub04492-20100¥9,600

main04492-20100iST191..JPP¥9,600199309-199402

sub04466-32010¥8,600

main04492-20140iST191..JPP¥9,100199402-199505

sub04466-20020¥7,500

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iST191..JPP¥160199203-199606

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iST191..JPP¥200199203-199606

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20310iST191..JPP¥3,920199203-199307

sub47721-20430¥3,950

main47721-20430iST191..JPP¥3,950199307-199606

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iST191..JPP¥500199203-199606

*8-1.25PX56-15

main90119-08431iST191..JPP¥220199203-199606

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20310iST191..JPP¥3,920199203-199307

sub47721-20430¥3,950

main47721-20430iST191..JPP¥3,950199307-199606

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20420iST191..JPP¥41,800199203-199606

47731BPISTON, REAR DISC BRAKE

main47731-20110iST191..JPP¥2,300199203-199606

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45001iST191..JPP¥170199203-199606

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32090iST191..JPP¥280199203-199402

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12060iST191..JPP¥500199203-199307

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12080iST191..JPP¥260199203-199402

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32090iST191..JPP¥280199203-199402

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12110iST191..JPP¥500199203-199307

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20420iST191..JPP¥41,800199203-199606

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iST191..JPP¥680199203-199606

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iST191..JPP¥780199203-199606

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iST191..JPP¥390199203-199606

sub47776-12020¥80

main47776-12020iST191..JPP¥80199606

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iST191..JPP¥870199203-199606

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iST191..JPP¥120199203-199606

22 parts on this diagram · 3 diagrams in section
