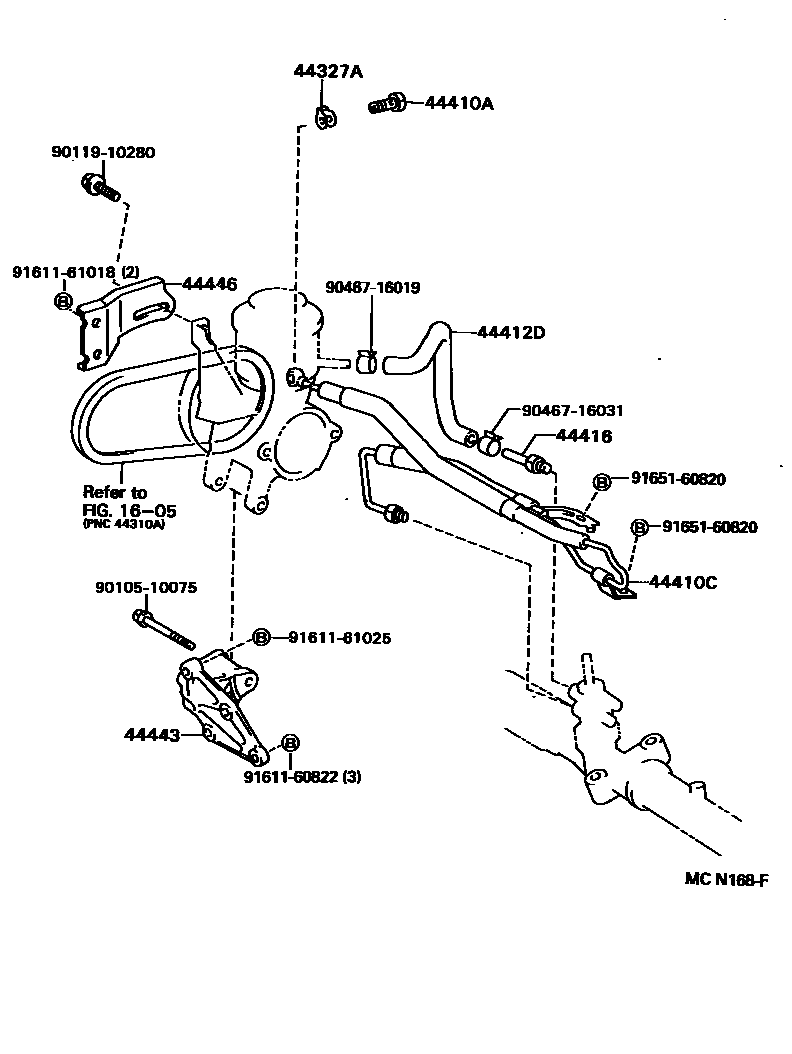

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1MIDDLE EAST SPEC

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT190,ST191..JPP..RHD199203-199606

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT190,CT190,ST191..JPP199203-199606

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20680iAT190..JPP..RHD199203-199402

main44410-20690iAT190..JPP..LHD199203-199601

main44410-20700iST191..JPP..RHD199606-199711

main44410-20710iST191..JPP..LHD199203

main44410-20760iCT190..JPP199203-199601

main44410-2B050iAT190..JPP199607-199711

sub91652-60820

main44410-2B070iAT190..JPP..LHD..MTM..XL199402-199601

MIDDLE EAST SPEC

44412DHOSE, RETURN, NO.1

main44412-20190iAT190..JPP..RHD199203-199607

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT190,ST191..JPP..RHD199606-199607

44443BRACKET, PUMP

main44443-12050iAT190..JPP199203-199607

main44443-20050iST191..JPP199606

44446STRUT, ADJUSTING

main44446-12060iAT190..JPP199607-199711

9010510075

main90105-10075

9011910280

main90119-10280

9046716019

main90467-16019

9046716031

main90467-16031

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

16 parts on this diagram · 6 diagrams in section
