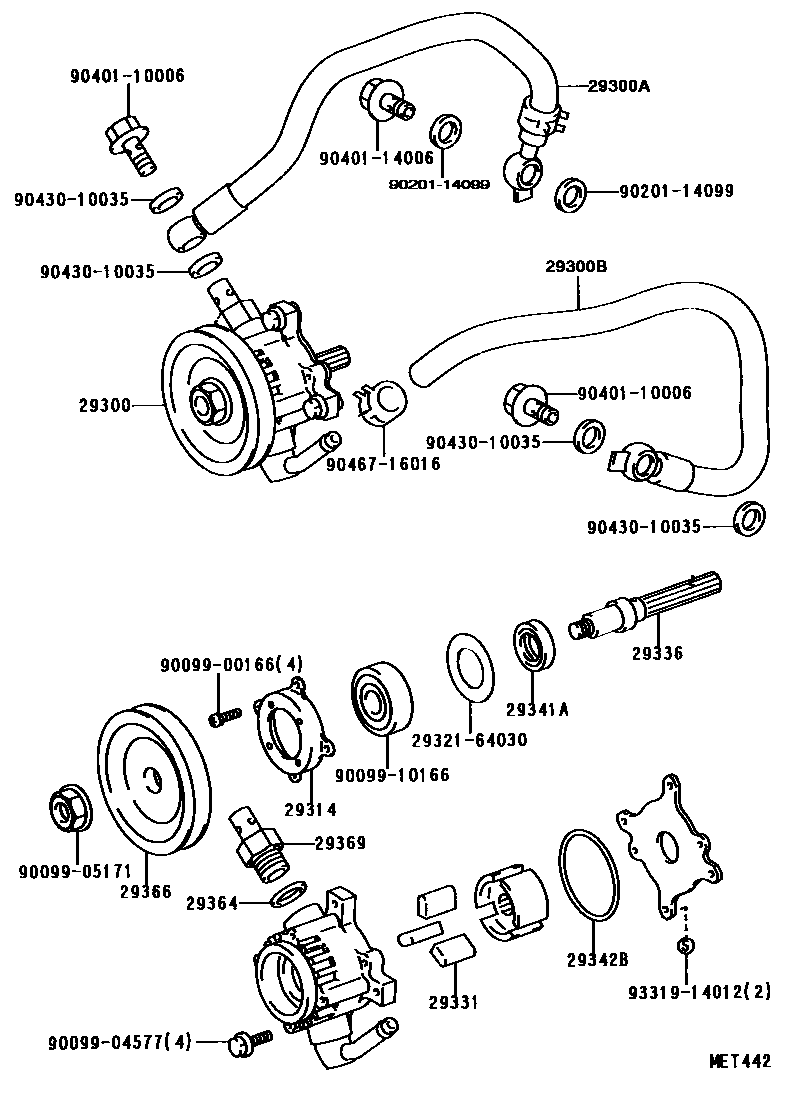

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-64070i2C..CT190..JPP199203-199212

main29300-64100i2C..CT190..JPP199212-199601

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02115i2C..CT190..JPP199203-199212

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-64020i2C..CT190..JPP199203-199212

29314RING, STOP

main29314-64030i2C..CT190..JPP199203-199212

29331BLADE, VACUUM PUMP, A

main29331-64030i2C..CT190..JPP199203-199212

29336SHAFT, VACUUM PUMP

main29336-64031i2C..CT190..JPP199203-199212

29341ASEAL, OIL

main29341-64030i2C..CT190..JPP199203-199212

29342BRING, O

main29342-64030i2C..CT190..JPP199203-199212

29364WASHER, VACUUM PUMP

main29364-66010i2C..CT190..JPP199203-199212

29366PULLEY, VACUUM PUMP

main29366-64070i2C..CT190..JPP199203-199212

29369VALVE SUB-ASSY, CHECK

main29369-64070i2C..CT190..JPP199203-199212

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009900166

main90099-00166

9009904577

main90099-04577

9009905171

main90099-05171

9009910166

main90099-10166

9020114099

main90201-14099

9040110006

main90401-10006

9040114006

main90401-14006

9043010035

main90430-10035

9046716016

main90467-16016

9331914012

main93319-14012

22 parts on this diagram · 2 diagrams in section
