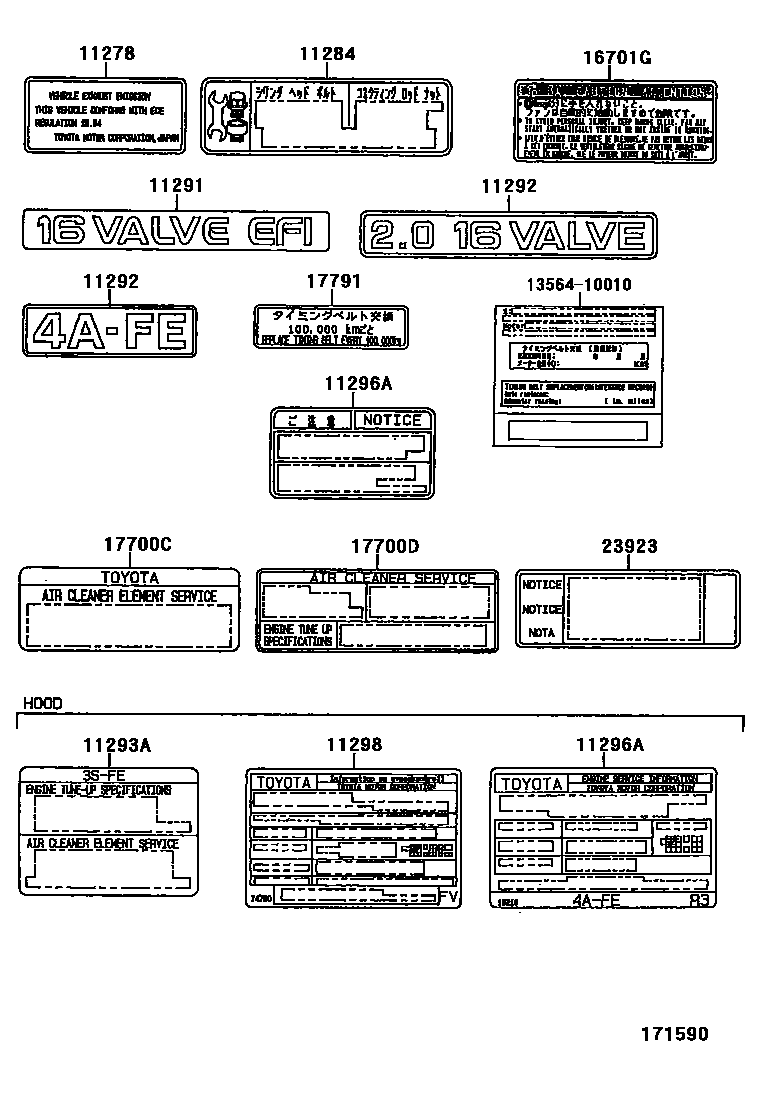

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-13010i4AFE,3SFE..AT190,ST191..JPP..RHD..SED..GL199203-199403

SINGAPORE SPEC

main11278-16040i4AFE,3SFE..AT190,ST191..JPP..RHD..SED..GL199403-199711

SINGAPORE SPEC

11284PLATE, ENGINE BOLT INFORMATION

main11284-16060i4AFE..AT190..JPP199203-199311

main11284-74040i3SFE..ST191..JPP199305-199403

main11284-74050i3SFE..ST191..JPP199203-199305

sub11284-74040

11291PLATE, ENGINE NAME

main11291-16080i4AFE..AT190..JPP199203-199711

main11291-74070i3SFE..ST191..JPP..RHD..SED..GL199203-199711

SINGAPORE SPEC OR THAILAND SPEC

11292PLATE, ENGINE NAME, NO.2

main11292-16020i4AFE..AT190..JPP199203-199711

main11292-74100i3SFE..ST191..JPP199203-199305

sub11292-74101

main11292-74101i3SFE..ST191..JPP199305-199606

11293APLATE, ENGINE CAUTION

main11293-74130i3SFE..ST191..JPP199203-199402

main11293-74260i3SFE..ST191..JPP..LHD199203

CHINA SPEC

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-16210i4AFE..AT190..JPP199203-199711

main11296-16310i4AFE..AT190..JPP..LHD199206-199601

CHINA SPEC

main11296-64010i2C..CT190..JPP199212-199601

11298PLATE, EMISSION CONTROL INFORMATION

main11298-74790i3SFE..ST191..JPP..LHD199203

PHILIPPINES SPEC

16701GLABEL, CAUTION

main88723-12100i2C..CT190..JPP199203-199702

main88723-20080i2C..CT190..JPP199511-199601

main88723-20081i4AFE,3SFE..AT190,ST191..JPP199702

sub16793-31070

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-74010i3SFE..ST191..JPP..LHD199203-199402

PHILIPPINES SPEC

main90917-07118i3SFE..ST191..JPP199402-199605

17700DPLATE, ENGINE CAUTION

main11296-55020i2C..CT190..JPP199203-199505

main11296-64020i2C..CT190..JPP199505-199601

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i2C..CT190..JPP199208-199601

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-64011i2C..CT190..JPP199203-199601

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

13 parts on this diagram · 1 diagram in section
