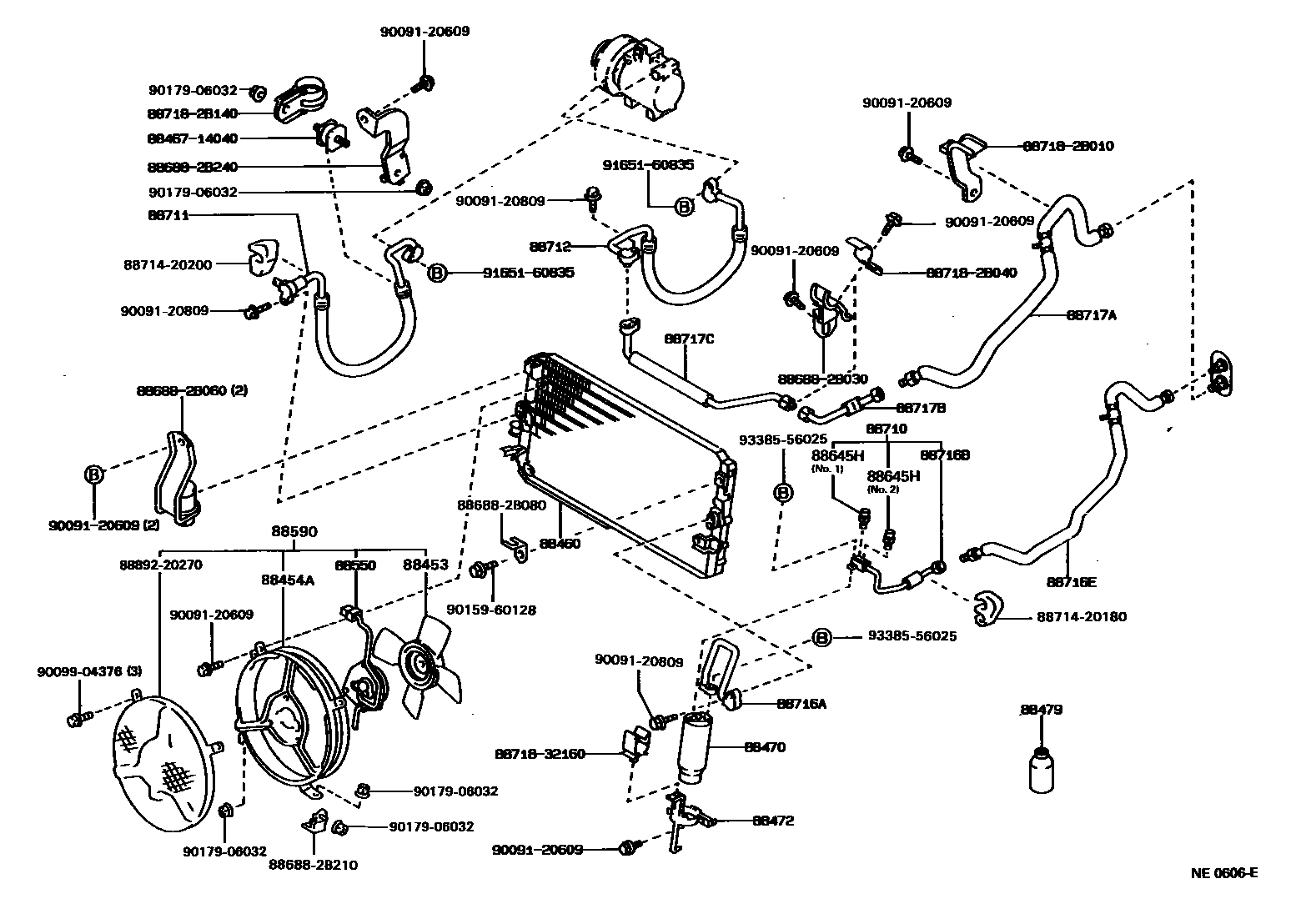

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1 0004 1DEALER OPTION 0005 1MAKER OPTION 0006 1 0007 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20030iAT17#..RHD198712-198911

main88453-32020iST171..RHD..GL..CBR199106-199208

88454ASHROUD, FAN

main88454-20060iAT171..RHD..XL199001-199208

main88454-20070iCT17#198712-199211

main88454-32030iST171..RHD..GL..CBR199106-199208

88460CONDENSER ASSY, COOLER

main88460-20250iST171..EFI;AT177,ST171..RHD..WG198911-199211

main88460-20260iAT17#,CT17#,ST171..LHD198712-199211

88470RECEIVER & DRYER ASSY, COOLER

main88471-12010iAT171,ST171..RHD..GL..CBR198911-199001

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-20040iAT17#,ST171..RHD..CBR198911-199211

MAKER OPTION

main88473-20060iAT177,ST171..RHD..WG198911-199001

DEALER OPTION

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iAT17#..RHD;ST171..RHD..(LB,SED)..CBR198712-198911

400G

sub90986-02005

main90986-02004×2iAT171..3FC..GEN;AT171,ST171..LHD..GL;AT17#,ST171..RHD..CBR198911-198912

250G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST171..RHD..(LB,SED)..CBR199001-199106

main88550-12120iAT17#198712-198911

main88550-20040iAT171..RHD..GL198911-199001

DEALER OPTION

88590BLOWER ASSY, W/SHROUD

main88590-20100iST171..RHD..GL..CBR198911-199001

main88590-20160iAT17#..RHD;AT171..LHD..GL;AT171..3FC..GEN198911-198912

MAKER OPTION

main88590-20170iCT17#198712-199211

main88590-20180iAT177..RHD199001-199211

88645HSWITCH, PRESSURE NO.1

main88645-20010iAT17#,CT17#;ST171..LB,SED198712-198911

NO.1

main88645-30280iAT17#,CT17#;ST171..LB,SED198712-198909

NO.2

main88645-30281iAT17#,CT17#;ST171..LB,SED198909-198911

NO.2

88710TUBE ASSY, AIR CONDITIONER

main88706-20010iAT171,ST171..RHD..GL..CBR198911-199001

main88706-20020iAT17#,CT17#,ST171..LHD198712-199211

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-20610iAT171..RHD..GL198911-199001

sub88711-2B200

main88711-20620iST171..WG;ST171..LHD..GL;CT17#,ST171..DSL,EFI198911-199211

sub88711-20680

main88711-20660iAT171..LHD..4F198712-199203

MIDDLE EAST SPEC

main88711-20670iST171..GCC198712-199203

MIDDLE EAST SPEC

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-20810iAT171..RHD..GL198911-199001

sub88712-2B680

main88712-20820iST171..RHD..GL..CBR198911-199001

sub88712-2B690

main88712-20830iAT17#..LHD..(3FC,5F)198712-199211

sub88712-2B700

main88712-20840iST171..LHD..XL198712-199203

sub88712-2B710

main88712-20850iCT17#198712-198911

sub88712-2B720

main88712-2B150iCT17#198911-199211

sub88712-2B660

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2B500iAT171,ST171..RHD..GL..CBR198911-199001

main88716-2B590iAT17#,CT17#,ST171..LHD198712-199211

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2B510iAT17#,ST171..RHD198911-199211

main88716-2B520iAT17#,CT17#,ST171..LHD198712-199211

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2B440iAT171..RHD..GL199001-199106

main88716-2B450iST171..RHD..SED..XL199001-199208

main88716-2B460iST171..LHD..(EXS,GT,GX,XL)198911-199203

main88716-2B470iCT17#198712-199211

main88716-2B600iST171..LHD..GL;AT171..LHD..(3FC,5F)..XL..GEN198912-199208

DEALER OPTION

main88716-2B640iAT177..LHD;AT171..GCC;AT171..LHD..4F;AT171..LHD..GL198912-199211

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-20730iAT171..RHD..GL198911-199001

DEALER OPTION

main88717-20740iST171..RHD..GL..CBR199106-199208

main88717-20750iAT17#,ST171..LHD198712-199211

main88717-20760iCT17#198712-199211

main88717-20850iAT17#..RHD198712-199211

MAKER OPTION

main88717-20860iST171..RHD..(LB,SED)..CBR198712-198911

MAKER OPTION

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-20790iAT17#..RHD;ST171..RHD..(LB,SED)..CBR198712-198911

MAKER OPTION

main88717-20880iAT177,ST171..RHD..WG198911-199001

DEALER OPTION

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-20870iAT171,ST171..RHD..GL..CBR198911-199001

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

886882B030BRACKET, COOLER DIAPHRAGM

main88688-2B030

886882B060BRACKET, COOLER DIAPHRAGM

main88688-2B060

886882B080BRACKET, COOLER DIAPHRAGM

main88688-2B080

886882B210BRACKET, COOLER DIAPHRAGM

main88688-2B210

886882B240BRACKET, COOLER DIAPHRAGM

main88688-2B240

8871420180HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20180

8871420200HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20200

887182B010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B010

887182B040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B040

887182B140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B140

8871832160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32160

8889220270BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20270

9009120609

main90091-20609

9009120809

main90091-20809

9009904376

main90099-04376

9015960128

main90159-60128

9017906032

main90179-06032

9165160835

main91651-60835

9338556025

main93385-56025

38 parts on this diagram · 7 diagrams in section
