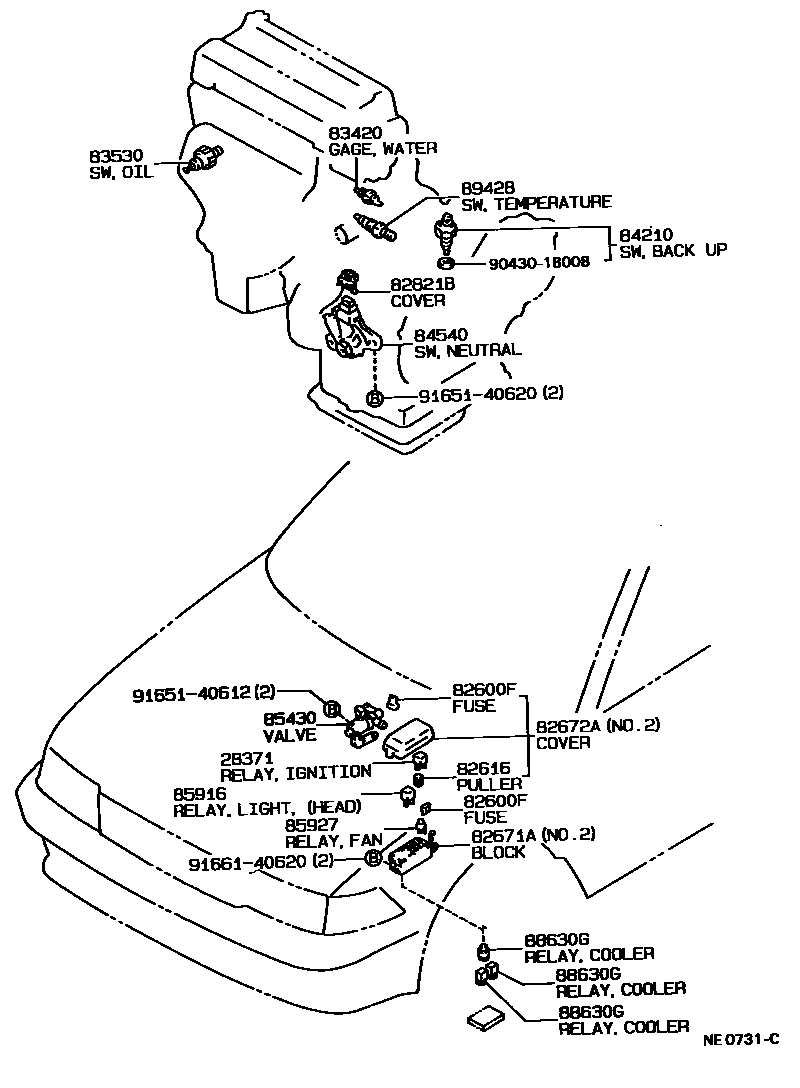

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.4
NO.1
NO.3
NO.3
NO.2
W(32C24L BATTERY),NO.2
NO.2
W(55D23L-MF OR 55D26L-MF BATTERY),NO.2
W(55D23L-MF OR 55D26L-MF BATTERY);W(55D23L-MF OR 55D26L-MF BATTERY),NO.2;W(55D23L-MF-OR 55D26L-MF BATTERY),NO.2
NO.2
82672ACOVER, JUNCTION BLOCK
NO.2,LWR
NO.3
NO.3
NO.1
NO.1
NO.2,UPR
NO.2,UPR
NO.2
NO.1
NO.2
NO.2,UPR
NO.2,UPR
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85430VALVE, OUTER VENT CONTROL
85916RELAY, LIGHT CONTROL
TAIL LAMP,MARUKO
TAIL LAMP,*ND
HEADLAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
MB4 TYPE
MB5 TYPE
M4 TYPE
89428SWITCH, TEMPERATURE DETECT, NO.2
ENGINE
ENGINE
9043018008
main90430-18008
9165140612
main91651-40612
9165140620
main91651-40620
9166140620
main91661-40620
19 parts on this diagram · 8 diagrams in section
