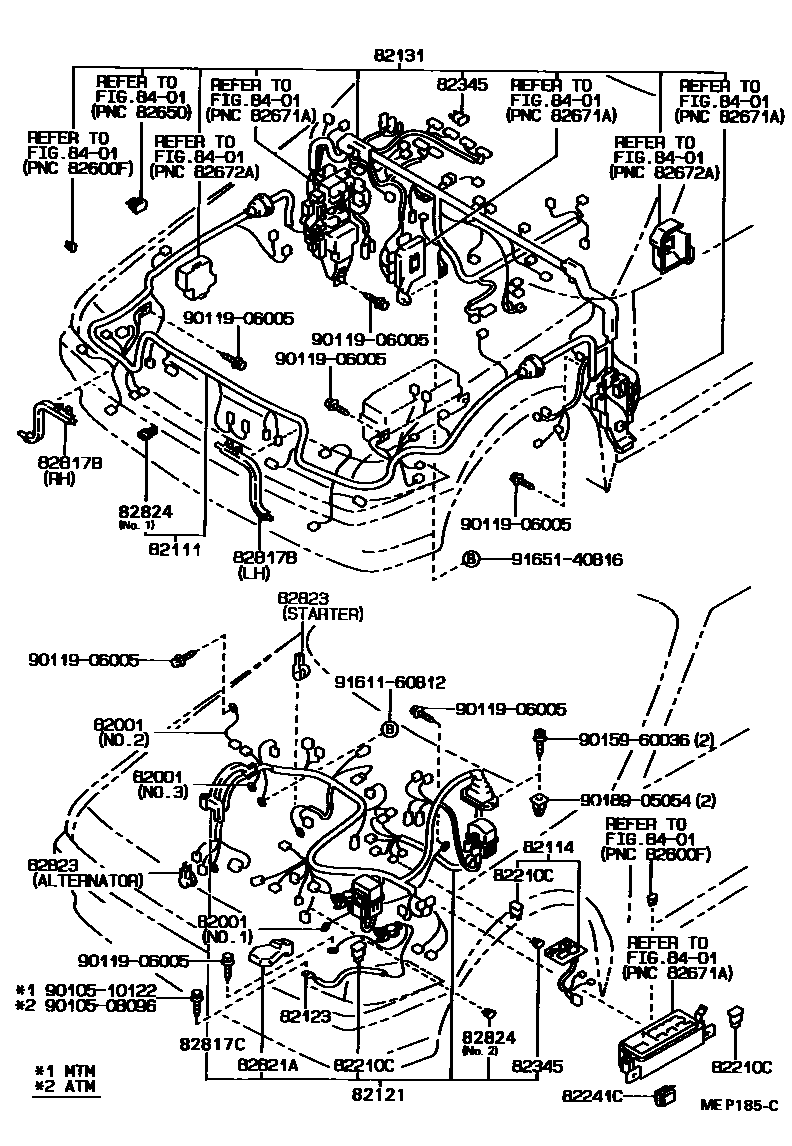

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.2
NO.1
NO.3
NO.3
82111WIRE, ENGINE ROOM MAIN
EXTERIOR PACKAGE
EXTERIOR PACKAGE
EXTERIOR PACKAGE
82114WIRE, ENGINE ROOM, NO.4
82121WIRE, ENGINE
82123WIRE, ENGINE, NO.3
NO.2
W(34B19L-MF BATTERY)
NO.1
82131WIRE, COWL
W(*EL) OR W(*MR)
W(TACHOMETER)
W(TACHOMETER)
W(DIGITAL METER)
W(PUSH TYPE HEATER CONTROL)
W(PUSH TYPE HEATER CONTROL & DIGITAL METER)
W(TACHOMETER)
W(TACHOMETER & *EL) OR W(TACHOMETER & *MR)
W(TACHOMETER)
W(DIGITAL METER)
W(PUSH TYPE HEATER CONTROL)
W(PUSH TYPE HEATER CONTROL & DIGITAL METER)
W(*EL) OR W(*MR)
W(TACHOMETER)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
60A,TERM.:FEMALE,YEL
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
L=100,0.3 PINK
82241CWIRE, RELAY
82345DIODE
NO.2
NO.4
NO.6
NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
NO.2
NO.1
82817BPROTECTOR, WIRING HARNESS, NO.3
RH
LH
82817CPROTECTOR, WIRING HARNESS, NO.4
82823CAP, TERMINAL, NO.1
ST
82824CONNECTOR, WIRING HARNESS
NO.1
NO.2
8401
9010508096
main90105-08096
9010610122
main90106-10122
9011906005
main90119-06005
9015960036
main90159-60036
9018905054
main90189-05054
9161160812
main91611-60812
9165140816
main91651-40816
