EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-20310iST171..WG;ST171..SED..EFI;AT171,ST171..GL..CBR198712-198911

NEW ZEALAND SPEC

main75311-20310iAT171,ST171..GL..CBR198911-199208

main75311-20350iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR198911-199211

EXTERIOR PACKAGE

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-20560iST171..SED..XL;AT17#,CT17#..XL198712-199211

TOYOTA

main75321-20580iST171..LB..GEN..CBR198712-198911

TOYOTA,NEW ZEALAND SPEC

main75321-20580iST171..LB..EFI198712-198911

TOYOTA

main75321-20630iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR198911-199211

TOYOTA,EXTERIOR PACKAGE

75441CPLATE, BACK DOOR NAME

main75441-20270iST171..LB..GEN198712-199208

TOYOTA

main75441-95503iAT177,CT177,ST171..WG198712-199211

TOYOTA

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-20270iAT171,CT170,ST171..SED198712-199208

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-20390iST171..GX198911-199203

GX

main75442-20410iST171..SED..EFI;AT171..RHD..5F..GL198712-199208

EX SALOON,INDONESIA SPEC

sub75442-20790

main75442-20410iST171..EXS198911-199203

EX SALOON

sub75442-20790

main75442-20450iST171..SED..GCC198903-198911

XL,XL PACKAGE

main75442-20450iAT171,CT170,ST171..SED..XL198712-199208

XL

main75442-20460iAT171,ST171..SED..GL..CBR198712-199208

GL

main75442-20470iST171..SED..EFI198712-199208

GLI

main75444-20730iST171..SED..EFI198712-199208

G,G,INDONESIA SPEC

75442APLATE, BACK DOOR NAME, NO.2

main75442-20460iST171..LB..GEN..CBR198712-199208

GL

main75442-20470iST171..LB..EFI198712-199203

GLI

main75442-20550-03iST171..GT198712-199011

2.0GT,LIGHT GRAY-GRAY,040 ,164 ,28H ,3E5 ,3H4 ,8E8

sub75442-20550

main75442-20550-03iST171..GT199011-199203

2.0GT,LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2 ,8G5

sub75442-20550

main75442-20550-13iST171..GT198712-199107

2.0GT,DARK GRAY-LIGHT GRAY,167 ,4H6 ,8E9

sub75442-20550

main75442-20550-13iST171..GT199107-199203

2.0GT,DARK GRAY-LIGHT GRAY,182 ,6K6

sub75442-20550

main75442-20560-03iST171..LB..GEN..CBR198911-199011

2.0GL,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,24P ,3H4 ,3J6 ,8G2 ,8G5

sub75442-20560

main75442-20560-03iST171..LB..GEN..CBR199011-199208

2.0GL,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2 ,8G5

sub75442-20560

main75442-20560-03iST171..LB..GEN..CBR198712-198911

2.0GL,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,164 ,28H ,3E5 ,3H4 ,8E8

sub75442-20560

main75442-20560-13iST171..LB..GEN..CBR199107-199208

2.0GL,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,6K6

sub75442-20560

main75442-20560-13iST171..LB..GEN..CBR198911-199107

2.0GL,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,4K1 ,6K6

sub75442-20560

main75442-20560-13iST171..LB..GEN..CBR198712-198911

2.0GL,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,167 ,4H6 ,8E9

sub75442-20560

main75442-20570iST171..LB..EFI198712-198911

2.0GLI,W(REAR SPOILER)

main75442-20570-03iST171..LB..EFI198911-199011

2.0GLI,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,24P ,3H4 ,3J6 ,8G2 ,8G5

sub75442-20570

main75442-20570-03iST171..LB..EFI199011-199203

2.0GLI,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2 ,8G5

sub75442-20570

main75442-20570-13iST171..LB..EFI199107-199203

2.0GLI,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,6K6

sub75442-20570

main75442-20570-13iST171..LB..EFI198911-199107

2.0GLI,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,4K1 ,6K6

sub75442-20570

main75442-95501iCT177198712-199211

2.0D

main75442-95502iST171..WG198810-199211

2.0

75443PLATE, BACK DOOR NAME, NO.3

main75443-20200iST171..LB..GEN198712-199208

2.0

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-20200iST171..SED198712-199208

2.0

main75443-20210iCT170198712-199203

2.0D

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-20090iAT171,CT170,ST171..SED198712-199208

CORONA

75445APLATE, BACK DOOR NAME, NO.5

main75445-20090iST171..LB..GEN198712-199208

CORONA

main75445-20120iST171..LB..EFI198712-198911

TOYOTA CORONA,W(REAR SPOILER)

main75445-20120-03iST171..LB..GEN..CBR198911-199011

TOYOTA CORONA,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,24P ,3H4 ,3J6 ,8G2 ,8G5

main75445-20120-03iST171..LB..GEN..CBR198712-198911

TOYOTA CORONA,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,164 ,28H ,3E5 ,3H4 ,8E8

main75445-20120-03iST171..LB..GEN..CBR199011-199208

TOYOTA CORONA,W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2 ,8G5

main75445-20120-13iST171..LB..GEN..CBR198712-198911

TOYOTA CORONA,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,167 ,4H6 ,8E9

main75445-20120-13iST171..LB..GEN..CBR198911-199107

TOYOTA CORONA,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,4K1 ,6K6

main75445-20120-13iST171..LB..GEN..CBR199107-199208

TOYOTA CORONA,W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,6K6

main75445-20190-03iST171..LB..GEN..CBR198911-199011

TOYOTA,EXTERIOR PACKAGE & W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,24P ,3H4 ,3J6 ,8G2,8G5

main75445-20190-03iST171..GT;ST171..LB..EFI199011-199203

TOYOTA,LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2 ,8G5

main75445-20190-03iST171..LB..GEN..CBR199011-199208

TOYOTA,EXTERIOR PACKAGE & W(REAR SPOILER),LIGHT GRAY-GRAY,040 ,175 ,3H4 ,3J6 ,8G2,8G5

main75445-20190-13iST171..LB..GEN..CBR198911-199107

TOYOTA,DARK GRAY-LIGHT GRAY,182 ,4K1 ,6K6

main75445-20190-13iST171..GT;ST171..LB..EFI199107-199203

TOYOTA,DARK GRAY-LIGHT GRAY,182 ,6K6

main75445-20190-13iST171..LB..GEN..CBR199107-199208

TOYOTA,EXTERIOR PACKAGE & W(REAR SPOILER),DARK GRAY-LIGHT GRAY,182 ,6K6

main75445-95501iAT177,CT177,ST171..WG198712-199211

CORONA

75485PLATE, BACK WINDOW NAME

main75485-20130iAT171,ST171..LB,SED198712-199208

16 VALVE

sub75485-20180

main75485-95500iAT177,ST171..WG198712-199211

16 VALVE

9356014012

main93560-14012

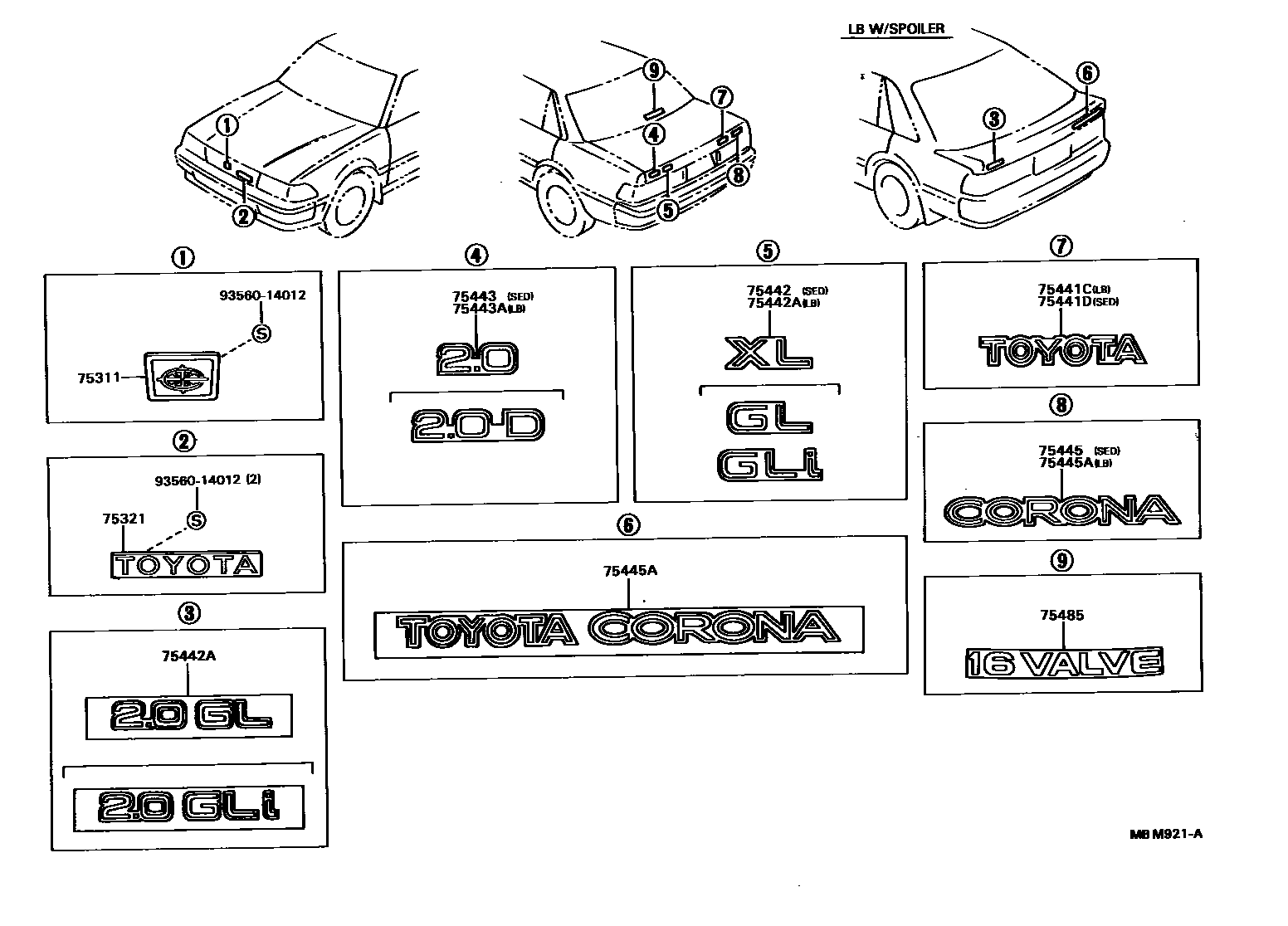

12 parts on this diagram · 4 diagrams in section
