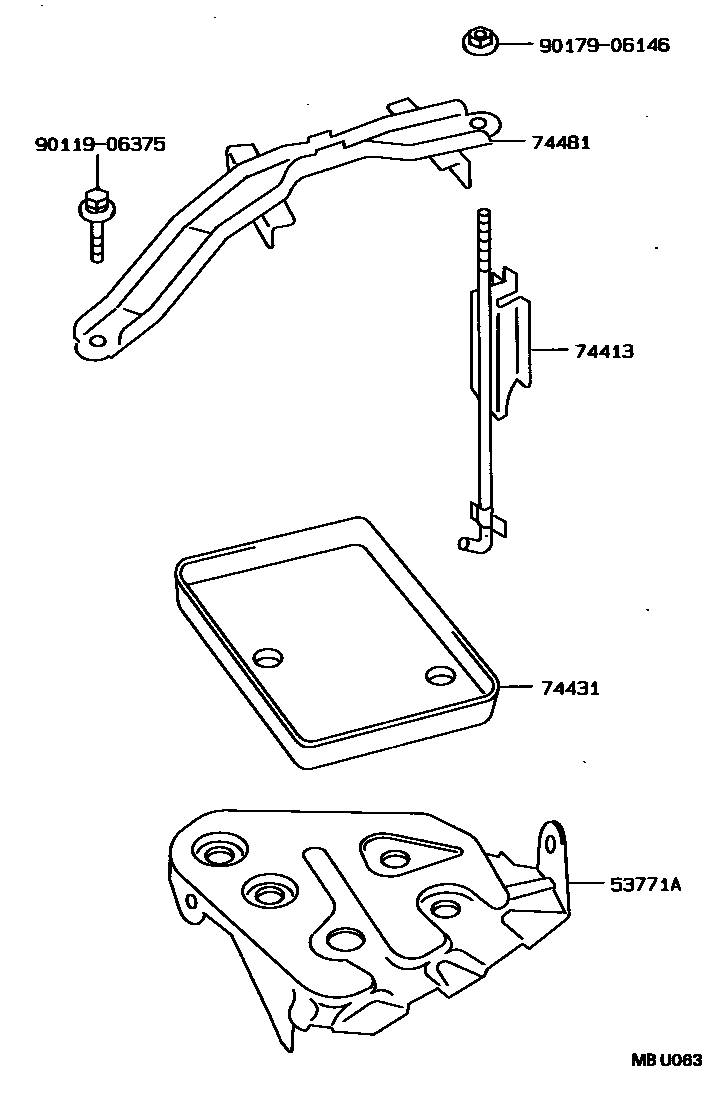

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20040iAT17#,CT17#,ST171198712-199008

74413BOLT, BATTERY CLAMP

main74407-20060iAT17#198712-199211

main74451-30060iCT17#,ST171198712-199211

74431TRAY, BATTERY

main74431-14010iST171..SED..EFI;AT17#,ST171..CBR198712-199211

sub74431-14050

main74431-14020iAT17#,ST171198712-199211

W(32C24L)

main74431-20010iST171..SED..EFI;AT17#,ST171..GEN..CBR198712-199211

W(55D23L-MF) OR W(55D26L-MF)

sub74431-26010

74481CLAMP, BATTERY HOLD DOWN

main74404-20250iST171..CBR;ST171..SED..EFI198712-199211

main74404-20260iST171198712-199211

W(32C24L)

main74404-20270iCT17#;ST171..LB..EFI198712-199211

W(55D23L-MF) OR W(55D26L-MF)

main74404-20290iAT17#198712-199211

main74404-20300iAT17#198712-199211

W(32C24L)

main74404-20310iAT17#..GEN198712-199211

W(55D23L-MF) OR W(55D26L-MF)

9011906375

main90119-06375

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
