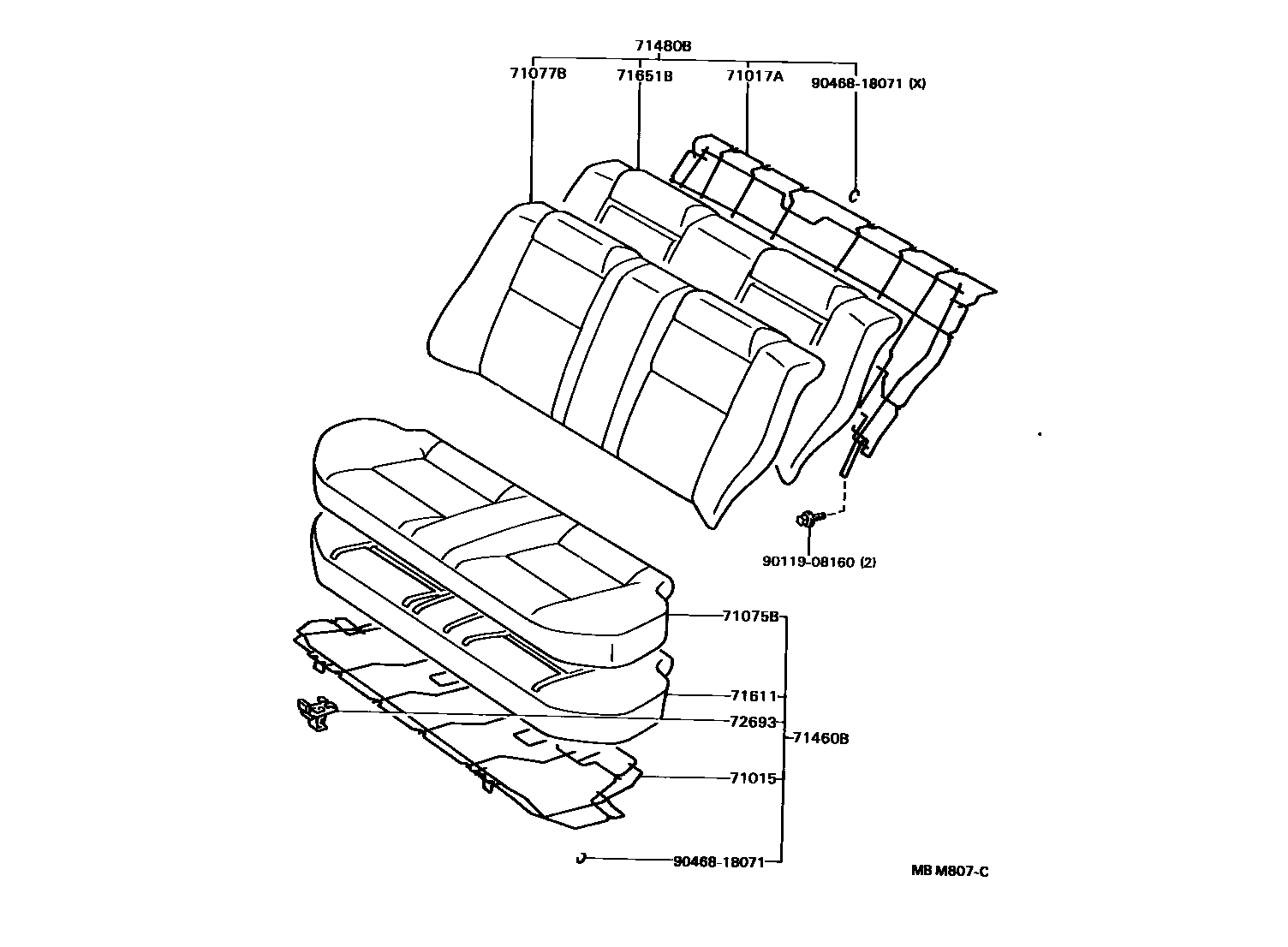

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20290iAT171,CT170,ST171..SED198712-198911

main71015-20291iAT171,CT170,ST171..SED198911-199208

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20310iST171..LB,WG198712-199211

main71017-20380iAT171,CT170,ST171..SED..XL..GEN198712-198911

main71017-20390iAT171,ST171..SED..GL..GEN198712-198911

W(FABRIC SEAT)

main71017-20391iAT171,CT170,ST171..SED..GEN198911-199208

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-13070iAT177,CT177198712-199211

main71017-20380iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(EXS,GX,XL)198712-199208

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20830-03iST171..SED..GCC198903-198911

XL PACKAGE,GRAY,TRIM1#

main71065-20830-03iAT171,CT170,ST171..SED..XL198712-198911

GRAY,TRIM1#

main71065-20830-04iST171..SED..GCC198903-198911

XL PACKAGE,BLUE,TRIM8#

main71065-20830-04iAT171,CT170,ST171..SED..XL198712-198911

BLUE,TRIM8#

main71065-20830-06iST171..SED..GCC198903-198911

XL PACKAGE,SABLE,TRIM4#

main71065-20830-06iAT171,CT170,ST171..SED..XL198712-198911

SABLE,TRIM4#

main71065-20831-03iAT171,CT170,ST171..SED..(GX,XL)198911-199011

GARY,TRIM1#

main71065-20831-04iAT171,CT170,ST171..SED..(GX,XL)198911-199011

DARK BLUE,TRIM8#

main71065-20831-06iAT171,CT170,ST171..SED..(GX,XL)198911-199011

SABLE,TRIM4#

main71065-20832-03iAT171,CT170,ST171..SED..(GX,XL)199011-199208

GRAY,TRIM1#

main71065-20832-04iAT171,CT170,ST171..SED..(GX,XL)199011-199208

DARK BLUE,TRIM8#

main71065-20832-06iAT171,CT170,ST171..SED..(GX,XL)199011-199208

SABLE,TRIM4#

main71065-20870-03iAT171,ST171..SED..GL198712-198911

GRAY,TRIM1#

main71065-20870-04iAT171,ST171..SED..GL198712-198911

BLUE,TRIM8#

main71065-20870-06iAT171,ST171..SED..GL198712-198911

SABLE,TRIM4#

main71065-20880-03iAT171,ST171..RHD..SED..GL198712-198911

W(LUXURY SEAT & SPLIT REAR SEAT),GRAY,TRIM1#

main71065-20880-04iAT171,ST171..RHD..SED..GL198712-198911

W(LUXURY SEAT & SPLIT REAR SEAT),BLUE,TRIM8#

main71065-20880-06iAT171,ST171..RHD..SED..GL198712-198911

W(LUXURY SEAT & SPLIT REAR SEAT),SABLE,TRIM4#

main71065-20881-03iAT171,ST171..RHD..SED..GL198911-199208

W(LUXURY SEAT & SPORT SEAT),GRAY,TRIM1#

main71065-20881-04iAT171,ST171..RHD..SED..GL198911-199208

W(LUXURY SEAT & SPORT SEAT),DARK BLUE,TRIM8#

main71065-20881-06iAT171,ST171..RHD..SED..GL198911-199208

W(LUXURY SEAT & SPORT SEAT),SABLE,TRIM4#

main71065-20890-03iST171..SED..EFI198712-198911

W(SPORT SEAT),GRAY,TRIM1#

main71065-20890-04iST171..SED..EFI198712-198911

W(SPORT SEAT),BLUE,TRIM8#

main71065-20890-06iST171..SED..EFI198712-198911

W(SPORT SEAT),SABLE,TRIM4#

main71065-20891-03iAT171,ST171..RHD..SED..GL198911-199208

W(SPORT SEAT),GARY,TRIM1#

main71065-95500-03iAT177,CT177198712-198911

GRAY,TRIM1#

main71065-95500-04iAT177,CT177198712-198911

BLUE,TRIM8#

main71065-95503-03iAT177,CT177198712-198911

W(FABRIC SEAT),GRAY,TRIM1#

main71065-95503-04iAT177,CT177198712-198911

W(FABRIC SEAT),BLUE,TRIM8#

main71065-95506-03iAT177,CT177198911-199011

W(FABRIC SEAT),GARY,TRIM1#

main71065-95506-04iAT177,CT177198911-199011

W(FABRIC SEAT),DARK BLUE,TRIM8#

main71065-95507-03iAT177,CT177198911-199211

GRAY,TRIM1#

main71065-95507-04iAT177,CT177198911-199211

DARK BLUE,TRIM8#

main71075-21200-B0iAT177,CT177199011-199211

W(FABRIC SEAT),GRAY,TRIM1#

main71075-21200-J0iAT177,CT177199011-199211

W(FABRIC SEAT),DARK BLUE,TRIM8#

main71075-2B171-03iST171..EXS198911-199208

GRAY,TRIM1#

main71075-2B171-04iST171..RHD..SED..GL198911-199208

DARK BLUE,TRIM8#

main71075-2B171-06iST171..EXS198911-199208

SABLE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-21190-03iAT177,CT177199011-199211

W(FABRIC SEAT),GRAY,TRIM1#

main71077-21190-04iAT177,CT177199011-199211

W(FABRIC SEAT),DARK BLUE,TRIM8#

main71077-2D070-03iST171..SED..GCC198903-198911

XL PACKAGE,GRAY,TRIM1#

main71077-2D070-03iAT171,CT170,ST171..SED..XL198712-198911

GRAY,TRIM1#

main71077-2D070-04iAT171,CT170,ST171..SED..XL198712-198911

BLUE,TRIM8#

main71077-2D070-04iST171..SED..GCC198903-198911

XL PACKAGE,BLUE,TRIM8#

main71077-2D070-06iAT171,CT170,ST171..SED..XL198712-198911

SABLE,TRIM4#

main71077-2D070-06iST171..SED..GCC198903-198911

XL PACKAGE,SABLE,TRIM4#

main71077-2D071-03iAT171,CT170,ST171..SED..(GX,XL)198911-199011

GARY,TRIM1#

main71077-2D071-04iAT171,CT170,ST171..SED..(GX,XL)198911-199011

DARK BLUE,TRIM8#

main71077-2D071-06iAT171,CT170,ST171..SED..(GX,XL)198911-199011

SABLE,TRIM4#

main71077-2D072-03iAT171,CT170,ST171..SED..(GX,XL)199011-199208

GRAY,TRIM1#

main71077-2D072-04iAT171,CT170,ST171..SED..(GX,XL)199011-199208

DARK BLUE,TRIM8#

main71077-2D072-06iAT171,CT170,ST171..SED..(GX,XL)199011-199208

SABLE,TRIM4#

main71077-2D130-03iST171..SED..GCC198712-198911

GRAY,TRIM1#

main71077-2D130-04iST171..SED..GCC198712-198911

BLUE,TRIM8#

main71077-2D130-06iST171..SED..GCC198712-198911

SABLE,TRIM4#

main71077-2D750-03iST171..EXS198911-199203

GRAY,TRIM1#

main71077-2D750-04iST171..EXS198911-199203

DARK BLUE,TRIM8#

main71077-2D750-06iST171..EXS198911-199203

SABLE,TRIM4#

main71077-95537-03iAT177,CT177198712-198911

GRAY,TRIM1#

main71077-95537-04iAT177,CT177198712-198911

BLUE,TRIM8#

main71077-95541-03iAT177,CT177198712-198911

W(FABRIC SEAT),GRAY,TRIM1#

main71077-95541-04iAT177,CT177198712-198911

W(FABRIC SEAT),BLUE,TRIM8#

main71077-95544-03iAT177,CT177198911-199011

W(FABRIC SEAT),GARY,TRIM1#

main71077-95544-04iAT177,CT177198911-199011

W(FABRIC SEAT),DARK BLUE,TRIM8#

main71077-95545-03iAT177,CT177198911-199211

GRAY,TRIM1#

main71077-95545-04iAT177,CT177198911-199211

DARK BLUE,TRIM8#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-21250-03iAT177,CT177199011-199211

***,W(FABRIC SEAT),GRAY,TRIM1#

main71460-21250-04iAT177,CT177199011-199211

***,W(FABRIC SEAT),DARK BLUE,TRIM8#

main71460-2B281-03iAT171,ST171..SED..(EXS,GL)198911-199208

***,GRAY,TRIM1#

main71460-2B281-04iAT171,ST171..SED..(EXS,GL)198911-199208

***,DARK BLUE,TRIM8#

main71460-2B281-06iAT171,ST171..SED..(EXS,GL)198911-199208

***,SABLE,TRIM4#

main71460-95531-03iAT177,CT177198712-198906

GRAY,TRIM1#

main71460-95531-04iAT177,CT177198712-198906

BLUE,TRIM8#

main71460-95534-03iAT177,CT177198712-198906

***,W(FABRIC SEAT),GRAY,TRIM1#

main71460-95534-04iAT177,CT177198712-198906

***,W(FABRIC SEAT),BLUE,TRIM8#

main71460-95537-03iAT177,CT177198911-199011

***,W(FABRIC SEAT),GARY,TRIM1#

main71460-95537-04iAT177,CT177198911-199011

***,W(FABRIC SEAT),DARK BLUE,TRIM8#

main71460-95538-03iAT177,CT177198906-198911

***,W(LUMBAR SUPPORT & VERTICAL ADJUSTER),GRAY,TRIM1#

main71460-95542-03iAT177,CT177198906-198911

***,W(FABRIC SEAT),GRAY,TRIM1#

main71460-95542-04iAT177,CT177198906-198911

***,W(FABRIC SEAT),BLUE,TRIM8#

main71460-95547-03iAT177,CT177198911-199211

***,GRAY,TRIM1#

main71460-95547-04iAT177,CT177198911-199211

***,DARK BLUE,TRIM8#

main71560-20770-03iST171..SED..GCC198903-198911

***,XL PACKAGE,GRAY,TRIM1#

main71560-20770-03iAT171,CT170,ST171..SED..XL198712-198911

***,GRAY,TRIM1#

main71560-20770-04iST171..SED..GCC198903-198911

***,XL PACKAGE,BLUE,TRIM8#

main71560-20770-04iAT171,CT170,ST171..SED..XL198712-198911

***,BLUE,TRIM8#

main71560-20770-06iAT171,CT170,ST171..SED..XL198712-198911

***,SABLE,TRIM4#

main71560-20770-06iST171..SED..GCC198903-198911

***,XL PACKAGE,SABLE,TRIM4#

main71560-20771-03iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,GARY,TRIM1#

main71560-20771-04iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,DARK BLUE,TRIM8#

main71560-20771-06iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,SABLE,TRIM4#

main71560-20772-03iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,GRAY,TRIM1#

main71560-20772-04iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,DARK BLUE,TRIM8#

main71560-20772-06iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,SABLE,TRIM4#

main71560-20810-03iAT171,ST171..SED..GL198712-198911

***,GRAY,TRIM1#

main71560-20810-04iAT171,ST171..SED..GL198712-198911

***,BLUE,TRIM8#

main71560-20810-06iAT171,ST171..SED..GL198712-198911

***,SABLE,TRIM4#

main71560-20820-03iAT171,ST171..RHD..SED..GL198712-198911

***,W(LUXURY SEAT),GRAY,TRIM1#

main71560-20820-04iAT171,ST171..RHD..SED..GL198712-198911

***,W(LUXURY SEAT),BLUE,TRIM8#

main71560-20820-06iAT171,ST171..RHD..SED..GL198712-198911

***,W(LUXURY SEAT),SABLE,TRIM4#

main71560-20821-03iAT171,ST171..RHD..SED..GL198911-199208

***,W(LUXURY SEAT),GRAY,TRIM1#

main71560-20821-04iAT171,ST171..RHD..SED..GL198911-199208

***,W(LUXURY SEAT),DARK BLUE,TRIM8#

main71560-20821-06iAT171,ST171..RHD..SED..GL198911-199208

***,W(LUXURY SEAT),SABLE,TRIM4#

main71560-20830-03iST171..SED..EFI198712-198911

***,W(SPORT SEAT),GRAY,TRIM1#

main71560-20831-03iAT171,ST171..RHD..SED..GL198911-199208

***,W(SPORT SEAT),GARY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-21280-03iAT177,CT177199011-199211

***,W(FABRIC SEAT),GRAY,TRIM1#

main71480-21280-04iAT177,CT177199011-199211

***,W(FABRIC SEAT),DARK BLUE,TRIM8#

main71480-2D070-03iAT171,CT170,ST171..SED..XL198712-198911

***,GRAY,TRIM1#

main71480-2D070-03iST171..SED..GCC198903-198911

***,XL PACKAGE,GRAY,TRIM1#

main71480-2D070-04iST171..SED..GCC198903-198911

***,XL PACKAGE,BLUE,TRIM8#

main71480-2D070-04iAT171,CT170,ST171..SED..XL198712-198911

***,BLUE,TRIM8#

main71480-2D070-06iST171..SED..GCC198903-198911

***,XL PACKAGE,SABLE,TRIM4#

main71480-2D070-06iAT171,CT170,ST171..SED..XL198712-198911

***,SABLE,TRIM4#

main71480-2D071-03iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,GARY,TRIM1#

main71480-2D071-04iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,DARK BLUE,TRIM8#

main71480-2D071-06iAT171,CT170,ST171..SED..(GX,XL)198911-199011

***,SABLE,TRIM4#

main71480-2D072-03iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,GRAY,TRIM1#

main71480-2D072-04iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,DARK BLUE,TRIM8#

main71480-2D072-06iAT171,CT170,ST171..SED..(GX,XL)199011-199208

***,SABLE,TRIM4#

main71480-2D120-03iST171..SED..GCC198712-198911

***,GRAY,TRIM1#

main71480-2D120-04iST171..SED..GCC198712-198911

***,BLUE,TRIM8#

main71480-2D120-06iST171..SED..GCC198712-198911

***,SABLE,TRIM4#

main71480-2G180-03iST171..EXS198911-199203

***,GRAY,TRIM1#

main71480-2G180-04iST171..EXS198911-199203

***,DARK BLUE,TRIM8#

main71480-2G180-06iST171..EXS198911-199203

***,SABLE,TRIM4#

main71480-95C01-03iAT177,CT177198712-198911

***,GRAY,TRIM1#

main71480-95C01-04iAT177,CT177198712-198911

***,BLUE,TRIM8#

main71480-95C04-03iAT177,CT177198712-198911

***,W(FABRIC SEAT),GRAY,TRIM1#

main71480-95C04-04iAT177,CT177198712-198911

***,W(FABRIC SEAT),BLUE,TRIM8#

main71480-95C09-03iAT177,CT177198911-199011

***,W(FABRIC SEAT),GARY,TRIM1#

main71480-95C09-04iAT177,CT177198911-199011

***,W(FABRIC SEAT),DARK BLUE,TRIM8#

main71480-95C10-03iAT177,CT177198911-199211

***,GRAY,TRIM1#

main71480-95C10-04iAT177,CT177198911-199211

***,DARK BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71611-20420iAT171,CT170,ST171..SED198712-198911

W(SPORT SEAT)

main71611-20421iAT171,ST171..RHD..SED..GL198911-199208

W(SPORT SEAT)

main71611-20440iAT171,ST171..RHD..SED..GL198712-198911

W(LUXURY SEAT)

main71611-20441iAT171,ST171..RHD..SED..GL198911-199208

W(LUXURY SEAT)

main71611-95507iAT177,CT177198712-199211

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-20470iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(EXS,GX,XL)198712-199208

main71651-95507iAT177,CT177198712-199211

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010iAT171,CT170,ST171..SED198712-199108

main72693-32030iAT171,CT170,ST171..SED199108-199208

9011908160

main90119-08160

9046818071

main90468-18071

12 parts on this diagram · 5 diagrams in section
