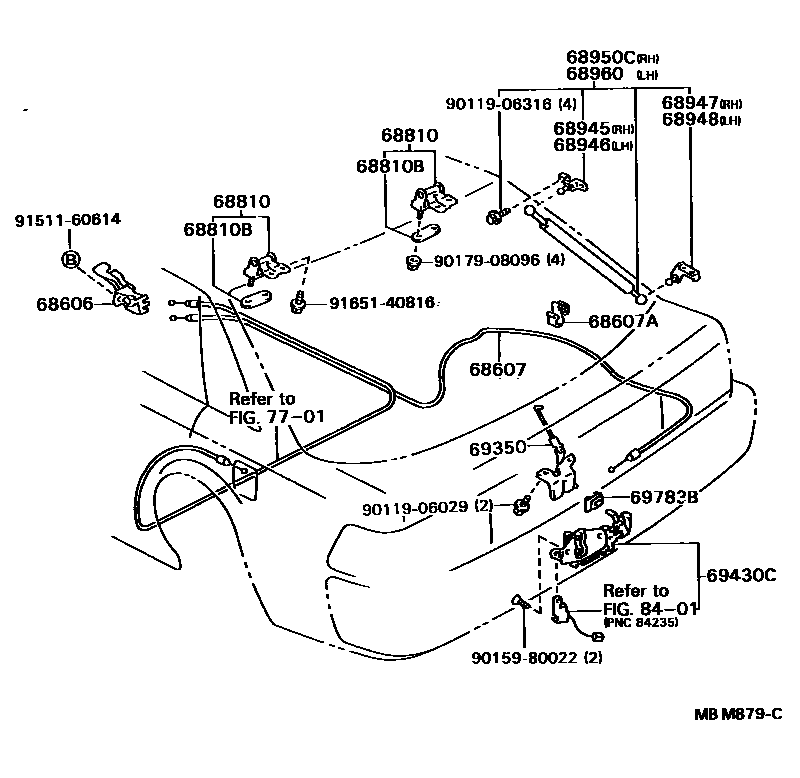

BACK DOOR LOCK & HANDLE

0001 1 0002 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20080iST171..LB..GEN198712-199208

sub64606-20081

main64606-20090iST171..LB..GCC198712-198911

sub64606-20091

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20430iST171..LB..GEN198712-199208

main64607-20440iST171..LB..GCC198712-199203

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iST171..LB198712-199208

68810HINGE ASSY, BACK DOOR, UPPER

main68801-20040×2iST171..LB198712-199208

main68810-95500×2iAT177,CT177,ST171..WG198712-199211

68810BPAD, BACK DOOR HINGE

main68838-20020×2iST171..LB198712-198902

main68838-20040×2iST171..LB198902-199208

T=0.5

main68838-95500×2iAT177,CT177,ST171..WG198712-199211

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-20010iST171..LB198712-199208

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-20010iST171..LB198712-199208

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-20010iST171..LB198712-199208

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-20010iST171..LB198712-199208

68950CSTAY ASSY, BACK DOOR, RH

main68950-29645iST171..LB..GEN198712-199202

main68950-29655iST171..LB..GCC198712-199202

W(REAR SPOILER)

main68950-29665iAT177,CT177,ST171..WG198712-198901

main68950-29675iAT177,CT177,ST171..WG198712-198901

W(REAR WIPER)

main68950-29865iAT177,CT177,ST171..WG198901-199202

main68950-29875iAT177,CT177,ST171..WG198901-199202

W(REAR WIPER)

68960STAY ASSY, BACK DOOR, LH

main68960-29455iST171..LB..GEN198712-199208

main68960-29465iST171..LB..GEN198712-199208

W(REAR SPOILER)

main68960-29475iAT177,CT177,ST171..WG198712-198901

main68960-29485iAT177,CT177,ST171..WG198712-198901

W(REAR WIPER)

main68960-29665iAT177,CT177,ST171..WG198901-199202

main68960-29675iAT177,CT177,ST171..WG198901-199202

W(REAR WIPER)

69350LOCK ASSY, BACK DOOR

main69350-20040iST171..LB198712-199208

main69350-95500iAT177,CT177,ST171..WG198712-199211

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20080iST171..LB198712-198911

main69430-20120iST171..LB198911-199208

main69430-95500iAT177,CT177,ST171..WG198712-199211

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-16010-03iST171..LB198712-199208

GRAY,TRIM1#

main69783-16010-06iST171..LB..GEN198712-199208

SABLE,TRIM4#

main69783-16010-14iST171..LB..GEN198712-198911

BLUE,TRIM8#

main69783-16010-24iST171..LB..GEN198911-199208

DARK BLUE,TRIM8#

7701

8401

9011906029

main90119-06029

9011906316

main90119-06316

9015980022

main90159-80022

9017908096

main90179-08096

9151160614

main91511-60614

9165140816

main91651-40816

22 parts on this diagram · 2 diagrams in section
