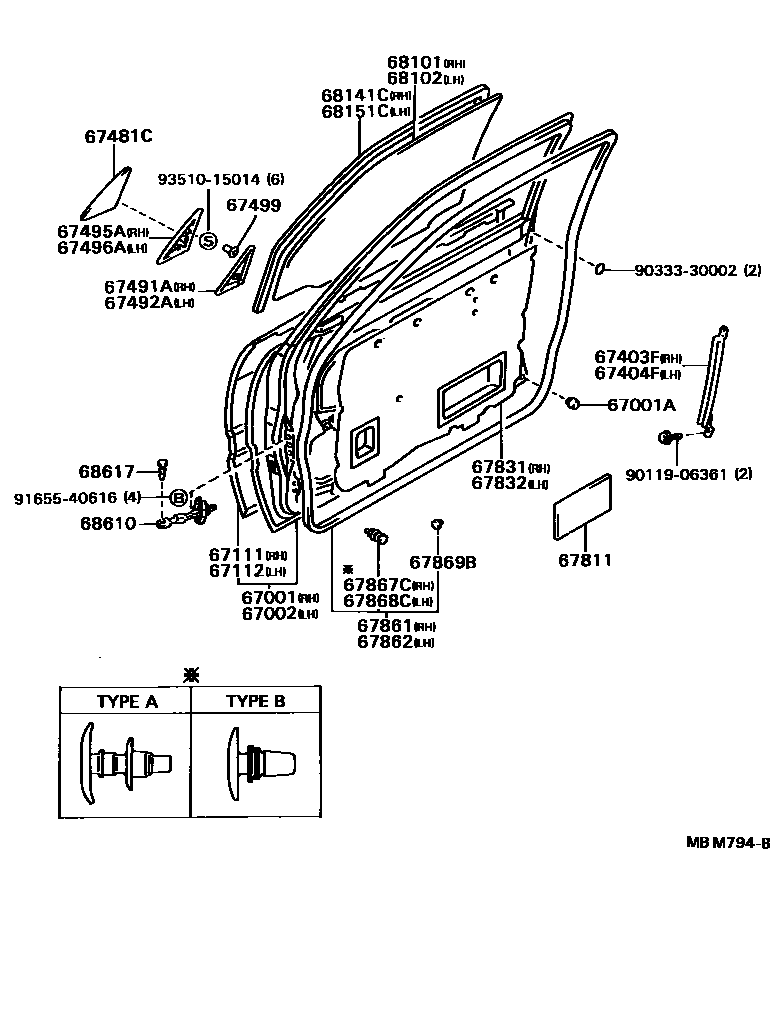

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W(POWER WINDOW OR *EL)
W(*EL)
W(POWER WINDOW OR *EL OR DOOR MIRROR(ELECT))
W(*EL OR DOOR MIRROR(ELECT))
W(*EL OR DOOR MIRROR(ELECT))
W(*EL)
W(POWER WINDOW OR *EL OR DOOR MIRROR(ELECT))
W(POWER WINDOW OR *EL)
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
W(POWER WINDOW OR *EL OR DOOR MIRROR(ELECT))
W(*EL)
W(POWER WINDOW OR *EL)
W(*EL OR DOOR MIRROR(ELECT))
W(*EL OR DOOR MIRROR(ELECT))
W(*EL)
W(POWER WINDOW OR *EL)
W(POWER WINDOW OR *EL OR DOOR MIRROR(ELECT))
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
W(DOOR MIRROR)
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(DOOR MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(DOOR MIRROR)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67811PAD, FRONT DOOR SILENCER
67832COVER, FRONT DOOR SERVICE HOLE, LH
W(POWER WINDOW)
sub67831-20250
sub67831-20250
sub67831-20250
sub67831-20250
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
9011906361
main90119-06361
9033330002
main90333-30002
9165540616
main91655-40616
9351015014
main93510-15014
31 parts on this diagram · 2 diagrams in section
