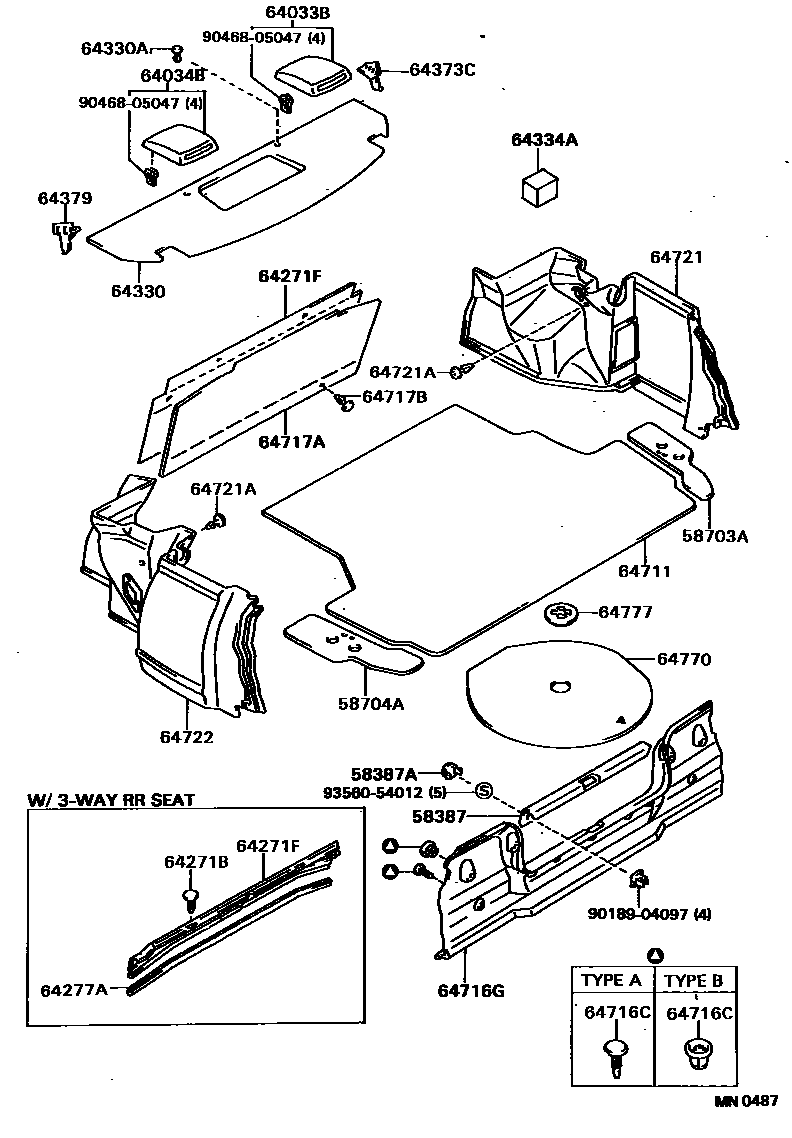

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20010-03iAT171,CT170,ST171..SED198911-199208

GRAY,TRIM1#,4#,8#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-B0iAT171,CT170,ST171..SED198911-199208

LIGHT GRAY,TRIM1#,4#,8#

sub90950-01503

main90950-01503-J0iAT171,ST171..SED..GL199203-199208

DARK BLUE,TRIM8#

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20100iAT171,CT170,ST171..SED198712-199208

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20100iAT171,CT170,ST171..SED198712-199208

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20120-03iAT171,ST171..RHD..SED..CBR198712-199208

GRAY,TRIM1#

main64033-20120-04iST171..SED..EFI;AT171,CT170,ST171..LHD..SED198712-198911

BLUE,TRIM8#

main64033-20120-06iAT171,ST171..RHD..SED..CBR198712-199208

SABLE,TRIM4#

main64033-20120-14iAT171,ST171..RHD..SED..CBR198911-199208

DARK BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20120-03iST171..SED..EFI;AT171,CT170,ST171..LHD..SED198712-199208

GRAY,TRIM1#

main64033-20120-04iAT171,ST171..RHD..SED..CBR198712-198911

BLUE,TRIM8#

main64033-20120-06iST171..SED..EFI;AT171,CT170,ST171..LHD..SED198712-199208

SABLE,TRIM4#

main64033-20120-14iAT171,ST171..RHD..SED..CBR198911-199208

DARK BLUE,TRIM8#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06016-33iAT171,CT170,ST171..SED..GEN198712-199208

GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-40iAT171,CT170,ST171..SED..GEN198712-198911

DARK BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-48iAT171,CT170,ST171..SED..GEN198911-199208

BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-57iAT171,CT170,ST171..SED..GEN198712-199208

SABLE,TRIM4#

sub90467-06016

sub90467-07049

main90467-06016-W3iAT171,CT170,ST171..SED..GEN199110-199202

DK.BLUE,TRIM8#

sub90467-06016

sub90467-07049

64271FTRIM, ROOM PARTITION

main64271-20160-B0iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(EXS,GX,XL)198712-199208

GRAY,TRIM1#

main64271-20160-E0iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(EXS,GX,XL)198712-199208

SABLE,TRIM4#

main64271-20160-J0iST171..SED..GCC;AT171,CT170,ST171..SED..XL198712-198911

BLUE,TRIM8#

main64271-20160-J1iAT171,CT170,ST171..SED..(EXS,GX,XL)198911-199208

DARK BLUE,TRIM8#

main64271-20170-03iAT171,CT170,ST171..SED..XL..GEN198712-199208

GRAY,TRIM1#

main64271-20170-03iAT171,CT170,ST171..SED..XL..GEN198712-199208

W(SPLIT REAR SEAT),GRAY,TRIM1#

main64271-20170-04iAT171,CT170,ST171..SED..XL..GEN198712-198911

W(SPLIT REAR SEAT),BLUE,TRIM8#

main64271-20170-04iAT171,CT170,ST171..SED..XL..GEN198712-198911

BLUE,TRIM8#

main64271-20170-06iAT171,ST171..SED..GL..GEN198712-199208

W(SPLIT REAR SEAT),SABLE,TRIM4#

main64271-20170-06iAT171,CT170,ST171..SED..XL..GEN198712-199208

SABLE,TRIM4#

main64271-20170-14iAT171,CT170,ST171..SED..XL..GEN198911-199208

W(SPLIT REAR SEAT),DARK BLUE,TRIM8#

main64271-20170-14iAT171,ST171..SED..GL198911-199208

DARK BLUE,TRIM8#

64277AMOULDING, ROOM PARTITION TRIM

main64277-20020-03iAT171,CT170,ST171..SED..GEN198911-199208

GRAY,TRIM1#

main64277-20020-03iAT171,CT170,ST171..SED..GEN198712-198911

GRAY,TRIM4#

main64277-20020-04iAT171,CT170,ST171..SED..GEN198712-198911

BLUE,TRIM8#

main64277-20020-06iAT171,CT170,ST171..SED..GEN198911-199208

SABLE,TRIM4#

main64277-20020-06iAT171,CT170,ST171..SED..GEN198712-198911

SABLE,TRIM1#

main64277-20020-14iAT171,CT170,ST171..SED..GEN198911-199208

DARK BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20830-03iAT171,CT170,ST171..SED..(GX,XL)198712-199208

GRAY,TRIM1#

sub64330-20830

main64330-20830-04iAT171,CT170,ST171..SED..XL198712-198911

BLUE,TRIM8#

sub64330-20830

main64330-20830-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#

sub64330-20830

main64330-20830-14iAT171,CT170,ST171..SED..(GX,XL)198911-199208

DARK BLUE,TRIM8#

sub64330-20830

main64330-20840-03iAT171,CT170,ST171..SED..XL..GEN198712-199208

W(SPLIT REAR SEAT),GRAY,TRIM1#

sub64330-20840

main64330-20840-03iAT171,ST171..SED..(EXS,GL)198712-199208

GRAY,TRIM1#

sub64330-20840

main64330-20840-04iAT171,ST171..SED..GL198712-198911

W(SPLIT REAR SEAT),BLUE,TRIM8#

sub64330-20840

main64330-20840-04iAT171,ST171..SED..GL198712-198911

BLUE,TRIM8#

sub64330-20840

main64330-20840-06iAT171,CT170,ST171..SED..XL..GEN198712-199208

W(SPLIT REAR SEAT),SABLE,TRIM4#

sub64330-20840

main64330-20840-06iAT171,ST171..SED..(EXS,GL)198712-199208

SABLE,TRIM4#

sub64330-20840

main64330-20840-14iAT171,ST171..SED..(EXS,GL)198911-199208

DARK BLUE,TRIM8#

sub64330-20840

main64330-20840-14iAT171,CT170,ST171..SED..XL..GEN198911-199208

W(SPLIT REAR SEAT),DARK BLUE,TRIM8#

sub64330-20840

main64330-20850-03iAT171,ST171..RHD..SED198712-199208

W(REAR SPEAKER),GRAY,TRIM1#

sub64330-20850

main64330-20850-04iAT171,ST171..RHD..SED198712-198911

W(REAR SPEAKER),BLUE,TRIM8#

sub64330-20850

main64330-20850-06iAT171,CT170,ST171..LHD..SED198712-199208

W(REAR SPEAKER),SABLE,TRIM4#

sub64330-20850

main64330-20850-14iAT171,CT170,ST171..LHD..SED198911-199208

W(REAR SPEAKER),DARK BLUE,TRIM8#

sub64330-20850

main64330-20860-03iAT171..RHD..XL;ST171..SED..XL198712-199208

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-20860

main64330-20860-04iAT171..RHD..XL;ST171..SED..XL198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64330-20860

main64330-20860-06iAT171,ST171..RHD..SED..XL198712-199208

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-20860

main64330-20860-14iAT171,ST171..RHD..SED..XL198911-199208

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64330-20860

main64330-20870-03iST171..SED..XL;AT171..RHD..(3FC,4F)..XL198712-199208

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-20870-03iAT171..RHD..5F..XL198712-198906

W(SPLIT REAR SEAT & REAR SPEAKER),GRAY,TRIM1#

main64330-20870-03iAT171,CT170..LHD..XL..GEN198712-198911

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-20870-04iAT171,CT170..LHD..XL..GEN198712-198911

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64330-20870-04iST171..SED..XL;AT171..RHD..(3FC,4F)..XL198712-198911

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64330-20870-04iST171..SED..XL;AT171..RHD..(3FC,4F)..XL198712-198906

W(SPLIT REAR SEAT & REAR SPEAKER),BLUE,TRIM8#

main64330-20870-06iST171..RHD..SED..XL;AT171..RHD..(4F,4FC)..XL198712-199208

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main64330-20870-06iAT171,CT170..LHD..XL..GEN198712-198911

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main64330-20870-06iST171..SED..XL;AT171..RHD..(3FC,4F)..XL198712-198906

W(SPLIT REAR SEAT & REAR SPEAKER),SABLE,TRIM4#

main64330-20870-14iAT171,CT170,ST171..LHD..XL..GEN198911-199208

W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main64330-2B040-03iAT171,CT170..LHD..XL..GEN198712-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

main64330-2B040-04iST171..RHD..SED..XL;AT171..RHD..(3FC,4F)..XL198712-198911

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),BLUE,TRIM8#

main64330-2B040-06iST171..RHD..SED..XL;AT171..RHD..(3FC,4F)..XL198712-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),SABLE,TRIM4#

main64330-2B040-14iAT171..RHD..5F..XL198911-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),DARK BLUE,TRIM8#

main64330-2B090-03iAT171,ST171..RHD..SED..GL198911-199208

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-2B090

main64330-2B090-04iAT171,ST171..RHD..SED..GL198911-199208

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub64330-2B090

main64330-2B090-06iAT171,ST171..RHD..SED..GL198911-199208

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-2B090

main64330-2B130-03iST171..SED..4FC..EFI198911-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

main64330-2B130-04iST171..SED..4FC..EFI198911-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),DARK BLUE,TRIM8#

main64330-2B130-06iST171..SED..4FC..EFI198911-199208

W(REAR 3-POINT SEAT BELT & REAR SPEAKER),SABLE,TRIM4#

main64330-2B250-03iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC,GARY,TRIM1#

main64330-2B250-04iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC,DARK BLUE,TRIM8#

main64330-2B250-06iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC,SABLE,TRIM4#

main64330-2B370-03iAT171,ST171..RHD..SED..5F..XL198906-198908

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main64330-2B370-04iAT171,ST171..RHD..SED..5F..XL198906-198908

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

main64330-2B380-03iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

main64330-2B380-03iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT & REAR SPEAKER),GRAY,TRIM1#

main64330-2B380-04iAT171,ST171..RHD..SED..5F..XL198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT & REAR SPEAKER),BLUE,TRIM8#

main64330-2B380-04iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT & REAR SPEAKER),BLUE,TRIM8#

main64330-2B380-06iAT171,ST171..RHD..SED..5F..XL198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT & REAR SPEAKER),SABLE,TRIM4#

main64330-2B380-06iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT & REAR SPEAKER),SABLE,TRIM4#

main64330-2B390-03iAT171,ST171..RHD..SED..5F..XL198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-2B390

main64330-2B390-03iAT171,ST171..RHD..SED..5F..XL198906-198908

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub64330-2B390

main64330-2B390-03iAT171..RHD..5F..XL;ST171..RHD..SED..XL198911-199208

NEWZEALAND SPEC,GRAY,TRIM1#

sub64330-2B390

main64330-2B390-04iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64330-2B390

main64330-2B390-04iAT171,ST171..RHD..SED..5F..XL198906-198908

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),BLUE,TRIM8#

sub64330-2B390

main64330-2B390-06iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198906-198911

NEWZEALAND SPEC & W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-2B390

main64330-2B390-06iAT171,ST171..RHD..SED..5F..XL198906-198908

NEWZEALAND SPEC & W(SPLIT REAR SEAT & REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub64330-2B390

main64330-2B390-06iAT171..RHD..5F..XL;ST171..RHD..SED..XL198911-199208

NEWZEALAND SPEC,SABLE,TRIM4#

sub64330-2B390

main64330-2B390-14iAT171..RHD..5F..XL;ST171..RHD..SED..XL198911-199208

NEWZEALAND SPEC,DARK BLUE,TRIM8#

sub64330-2B390

main64330-2B410-03iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC & W(REAR SPEAKER),GRAY,TRIM1#

sub64330-2B410

main64330-2B410-04iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC & W(REAR SPEAKER),DARK BLUE,TRIM8#

sub64330-2B410

main64330-2B410-06iST171..SED..4FC..EFI;ST171..RHD..SED..GL..CBR198911-199208

NEWZEALAND SPEC & W(REAR SPEAKER),SABLE,TRIM4#

sub64330-2B410

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-03iAT171,CT170,ST171..SED198712-199009

GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-24iAT171,CT170,ST171..SED198712-198807

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-26iAT171,CT170,ST171..SED198712-199208

SABLE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-34iAT171,CT170,ST171..SED198911-199208

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-B1iAT171,CT170,ST171..SED199009-199208

SHADOW GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-J0iAT171,CT170,ST171..SED198903-198911

LIGHT BLUE,TRIM8#

sub90467-08046

sub90467-08037

64334APAD, PACKAGE TRAY TRIM

main64334-20230iAT171..3FC,4F;ST171..LHD..(EXS,GX,XL);AT171,CT170..LHD..5F..XL198802-199208

64373CSTOPPER, PACKAGE TRAY TRIM, RH

main64373-20040iAT171,CT170,ST171..SED198712-198911

sub64373-20070

main64373-20070iAT171,CT170,ST171..SED198911-199208

64379STOPPER, PACKAGE TRAY TRIM, LH

main64379-20020iAT171,CT170,ST171..SED198712-198911

sub64379-20040

main64379-20040iAT171,CT170,ST171..SED198911-199208

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20450-03iST171..SED..GCC;AT171,CT170,ST171..SED..XL198712-198911

GRAY,TRIM1#,4#,8#

main64711-20460-03iAT171,ST171..SED..GL..GEN198712-198902

GRAY,TRIM1#,4#,8#

main64711-20460-03iAT171,CT170,ST171..SED..XL..GEN198806-198902

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

main64711-20540-03iAT171,CT170,ST171..XL..GEN198712-198806

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

main64711-20690-03iAT171,CT170,ST171..SED..(EXS,GX,XL)198902-199208

GRAY,TRIM1#,4#,8#

main64711-20700-03iAT171,ST171..SED..GL..GEN198902-199208

GRAY,TRIM1#,4#,8#

main64711-20700-03iAT171,CT170,ST171..SED..XL..GEN198902-199208

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iAT171,CT170,ST171..SED198712-198905

GRAY,TRIM1#,4#,8#,TYPE A

sub90467-05004

main90467-06083-03iAT171,CT170,ST171..SED198712-199208

GRAY,TRIM1#,4#,8#,TYPE B

main90467-07097-03iAT171,CT170,ST171..SED198905-199208

GRAY,TRIM1#,4#,8#,TYPE A

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20220-03iAT171,CT170,ST171..SED..XL198712-198911

GRAY,TRIM1#,4#,8#

sub64716-20230

main64716-20230-03iAT171,ST171..SED..GL198712-198911

GRAY,TRIM1#,4#,8#

main64716-20380-03iAT171,CT170,ST171..SED..(GX,XL)198911-199208

GRAY,TRIM1#,4#,8#

main64716-20390-03iAT171,ST171..SED..(EXS,GL)198911-199208

GRAY,TRIM1#,4#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20170-03iAT171,CT170,ST171..SED..(GX,XL)198712-199208

GRAY,TRIM1#,4#,8#

main64717-20230-03iST171..SED..(EXS,GL)..GCC198712-199203

GRAY,TRIM1#,4#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09066-B0iST171..SED..GL..GCC;AT171,CT170,ST171..SED..(EXS,GX,XL)198902-199208

GRAY,TRIM1#,4#,8#

sub90467-09066

main90467-09066-B1iST171..SED..GCC;AT171,CT170,ST171..SED..XL198712-198911

GRAY,TRIM4#

sub90467-09066

main90467-09066-B1iAT171,CT170,ST171..SED..(EXS,GX,XL)198911-199208

GRAY,TRIM1#

sub90467-09066

main90467-09066-E0iAT171,CT170,ST171..SED..(EXS,GX,XL)198911-199208

SABLE,TRIM4#

sub90467-09066

main90467-09066-E0iST171..SED..GCC;AT171,CT170,ST171..SED..XL198712-198912

SABLE,TRIM1#

sub90467-09066

main90467-09066-J0iST171..SED..XL;ST171..SED..GL..GCC;AT171,CT170..(3FC,4F,5F)..XL198712-198912

BLUE,TRIM8#

sub90467-09066

main90467-09066-W3iAT171,CT170,ST171..SED..(EXS,GX,XL)198911-199208

DARK BLUE,TRIM8#

sub90467-09066

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20150-03iAT171,CT170,ST171..SED..(GX,XL)198712-199208

GRAY,TRIM1#,4#,8#

sub64721-20170

main64721-20160-03iAT171,CT170,ST171..SED..XL..GEN198712-199208

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

sub64721-20180

main64721-20170-03iST171..SED..(EXS,GL)..GCC198712-199203

GRAY,TRIM1#,4#,8#

main64721-20180-03iAT171,ST171..SED..GL..GEN198712-199208

GRAY,TRIM1#,4#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03iAT171,CT170,ST171..SED198712-198807

GRAY,TRIM1#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-B0iAT171,CT170,ST171..SED198807-199208

LIGHT GRAY,TRIM1#,4#,8#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20120-03iAT171,CT170,ST171..SED..(GX,XL)198712-199208

GRAY,TRIM1#,4#,8#

sub64722-20140

main64722-20130-03iAT171,CT170,ST171..SED..XL..GEN198712-199208

W(SPLIT REAR SEAT),GRAY,TRIM1#,4#,8#

sub64722-20150

main64722-20140-03iST171..SED..(EXS,GL)..GCC198712-199203

GRAY,TRIM1#,4#,8#

main64722-20150-03iAT171,ST171..SED..GL..GEN198712-199208

GRAY,TRIM1#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64771-32040iAT171,CT170,ST171..SED198712-199208

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT171,CT170,ST171..SED198712-199208

9018904097

main90189-04097

9046805047

main90468-05047

9356054012

main93560-54012

27 parts on this diagram · 1 diagram in section
