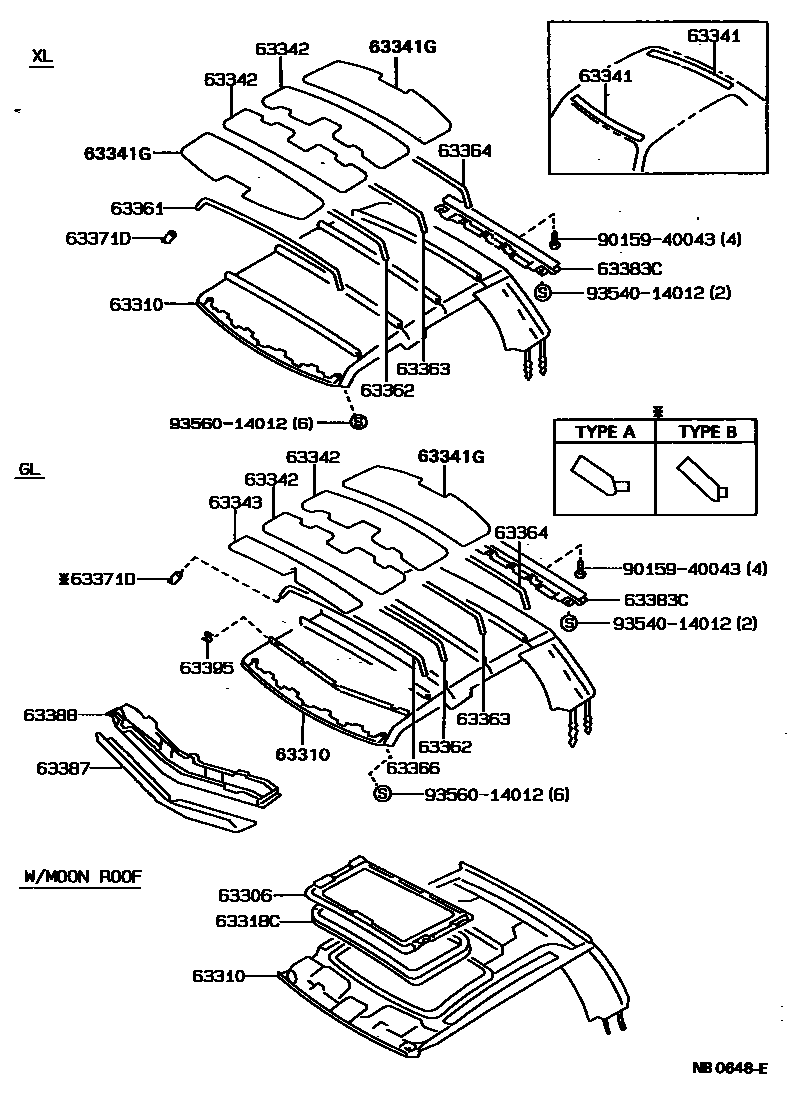

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1CKD SPEC 0003 1 0004 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-20020-03iAT171,CT170,ST171..(LB,SED)..(CBR,DSL)198712-199208

GRAY,TRIM1#

sub63306-20020

main63306-20020-04iST171..SED..GL..GCC;AT171,CT170..3FC,4F,5F;ST171..(LB,SED)..GEN..CBR198712-199005

BLUE,TRIM8#

sub63306-20020

main63306-20020-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN..CBR198712-199208

SABLE,TRIM4#

sub63306-20020

main63306-20020-14iAT171,CT170,ST171..SED..(CBR,DSL)198911-199208

DARK BLUE,TRIM8#

sub63306-20020

63310HEADLINING ASSY, ROOF

main63310-20700-03iAT171,CT170,ST171..SED..(GX,XL)198712-199208

GRAY,TRIM1#

sub63310-20700

main63310-20700-04iAT171,CT170,ST171..SED..XL198712-198911

BLUE,TRIM8#

sub63310-20700

main63310-20700-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#

sub63310-20700

main63310-20700-14iAT171,CT170,ST171..SED..(GX,XL)198911-199208

DARK BLUE,TRIM8#

sub63310-20700

main63310-20720-03iAT171,CT170,ST171..SED..(CBR,DSL)198712-199208

W(MOON ROOF),GRAY,TRIM1#

main63310-20720-04iAT171,CT170,ST171..SED..(CBR,DSL)198712-198911

W(MOON ROOF),BLUE,TRIM8#

main63310-20720-06iAT171,CT170,ST171..SED..(CBR,DSL)198712-199208

W(MOON ROOF),SABLE,TRIM4#

main63310-20720-14iAT171,CT170,ST171..SED..(CBR,DSL)198911-199208

W(MOON ROOF),DARK BLUE,TRIM8#

main63310-20730-03iAT171,ST171..SED..(EXS,GL)..CBR198712-199208

GRAY,TRIM1#

main63310-20730-04iAT171,ST171..SED..GL..CBR198712-198911

BLUE,TRIM8#

main63310-20730-06iAT171,ST171..SED..(EXS,GL)..CBR198712-199208

SABLE,TRIM4#

main63310-20730-14iAT171,ST171..SED..(EXS,GL)..CBR198911-199208

DARK BLUE,TRIM8#

main63310-20740-03iAT171..RHD..(4F,4FC)..XL198911-199208

CKD SPEC(LEATHER TYPE),GRAY,TRIM1#

sub63310-20740

main63310-20740-03iAT171..RHD..5F..XL;ST171..RHD..SED..XL198911-199208

CKD SPEC(LEATHER TYPE) OR NEW ZEALAND SPEC,GRAY,TRIM1#

sub63310-20740

main63310-20740-03iAT171..RHD..XL;ST171..SED..XL198712-198911

CKD SPEC,GRAY,TRIM1#

sub63310-20740

main63310-20740-04iAT171..RHD..XL;ST171..SED..XL198712-198911

CKD SPEC,BLUE,TRIM8#

sub63310-20740

main63310-20740-06iAT171..RHD..(4F,4FC)..XL198911-199208

CKD SPEC(LEATHER TYPE) OR NEW ZEALAND SPEC,SABLE,TRIM4#

sub63310-20740

main63310-20740-06iAT171..RHD..(4F,4FC)..XL198911-199208

CKD SPEC(LEATHER TYPE),SABLE,TRIM4#

sub63310-20740

main63310-20740-06iAT171..RHD..XL;ST171..SED..XL198712-198911

CKD SPEC,SABLE,TRIM4#

sub63310-20740

main63310-20740-14iAT171..RHD..5F..XL;ST171..RHD..SED..XL198911-199208

CKD SPEC(LEATHER TYPE) OR NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub63310-20740

main63310-20740-14iAT171..RHD..(4F,4FC)..XL198911-199208

CKD SPEC(LEATHER TYPE),DARK BLUE,TRIM8#

sub63310-20740

main63310-20750-03iAT171..RHD;ST171..SED..(4FC,5F)..GL..CBR198712-199208

CKD SPEC(FABRIC TYPE),GRAY,TRIM1#

main63310-20750-03iST171..SED..EFI198712-199208

GRAY,TRIM1#

main63310-20750-03iAT171,ST171..RHD..SED..GL..CBR198712-198911

CKD SPEC,GRAY,TRIM1#

main63310-20750-04iAT171..RHD..XL198712-198911

CKD SPEC,BLUE,TRIM4#

main63310-20750-04iAT171..RHD..XL198712-198911

CKD SPEC(FABRIC TYPE),BLUE,TRIM4#

main63310-20750-04iST171..SED..EFI198712-198911

BLUE,TRIM4#

main63310-20750-06iST171..SED..EFI198712-198911

CKD SPEC(FABRIC TYPE),SABLE,TRIM8#

main63310-20750-06iAT171..RHD;ST171..SED..(4FC,5F)..GL..CBR198911-199208

CKD SPEC(FABRIC TYPE),SABLE,TRIM4#

main63310-20750-06iST171..SED..EFI198712-198911

SABLE,TRIM8#

main63310-20750-06iST171..SED..EFI198712-198911

CKD SPEC,SABLE,TRIM8#

main63310-20750-06iST171..SED..EFI198911-199208

SABLE,TRIM4#

main63310-20750-14iAT171..RHD..GL;ST171..SED..(4FC,5F)..GL..CBR198911-199208

CKD SPEC(FABRIC TYPE),DARK BLUE,TRIM8#

main63310-20750-14iST171..SED..EFI198911-199208

DARK BLUE,TRIM8#

main63310-20780-03iST171..LB..CBR198712-199208

W(MOON ROOF),GRAY,TRIM1#

main63310-20780-04iST171..LB..GEN..CBR198712-198911

W(MOON ROOF),BLUE,TRIM8#

main63310-20780-06iST171..LB..GEN..CBR198712-199208

W(MOON ROOF),SABLE,TRIM4#

main63310-20780-14iST171..LB..GEN..CBR199001-199208

W(MOON ROOF),DARK BLUE,TRIM8#

main63310-20790-03iST171..LB..CBR198712-199208

GRAY,TRIM1#

main63310-20790-04iST171..LB..GEN..CBR198712-198911

BLUE,TRIM8#

main63310-20790-06iST171..LB..GEN..CBR198712-199208

BROWN,TRIM4#

main63310-20790-14iST171..LB..GEN..CBR198911-199208

DARK BLUE,TRIM8#

main63310-20800-03iST171..LB..EFI198712-199203

GRAY,TRIM1#

main63310-20800-03iST171..LB..GEN..CBR198712-198911

CKD SPEC,GRAY,TRIM1#

main63310-20800-03iST171..LB..GEN..CBR198911-199208

CKD SPEC(FABRIC TYPE),GRAY,TRIM1#

main63310-20800-04iST171..LB..GEN..CBR198712-198911

CKD SPEC,BLUE,TRIM8#

main63310-20800-04iST171..LB..GEN..CBR198712-198911

BLUE,TRIM8#

main63310-20800-06iST171..LB..GEN..CBR198712-198911

CKD SPEC,SABLE,TRIM4#

main63310-20800-06iST171..LB..EFI198712-199203

SABLE,TRIM4#

main63310-20800-06iST171..LB..GEN..CBR198911-199208

CKD SPEC(FABRIC TYPE),SABLE,TRIM4#

main63310-20800-14iST171..LB..EFI198911-199203

DARK BLUE,TRIM8#

main63310-20800-14iST171..LB..GEN..CBR198911-199208

CKD SPEC(FABRIC TYPE),DARK BLUE,TRIM8#

main63310-2B190-03iAT171,ST171..LHD..GL198911-199208

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub63310-20770

main63310-2B190-04iAT171,ST171..LHD..GL198911-199208

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

sub63310-20770

main63310-2B190-06iAT171,ST171..RHD..SED..GL..CBR198911-199208

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

sub63310-20770

main63310-2B210-03iAT171..RHD..GL198911-199208

NEW ZEALAND SPEC OR W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main63310-2B210-03iAT171..RHD..GL198911-199208

CKD SPEC OR NEW ZEALAND SPEC OR THAILAND SPEC,GRAY,TRIM1#

main63310-2B210-03iAT171..RHD..GL198911-199208

CKD SPEC & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main63310-2B210-03iST171..SED..5F..EFI198911-199208

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main63310-2B210-03iST171..LHD..5F..GL199009-199208

CKD SPEC(FABRIC TYPE) & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main63310-2B210-04iST171..SED..4FC..EFI198911-199208

NEW ZEALAND SPEC OR W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main63310-2B210-04iST171..SED..4FC..EFI198911-199208

CKD SPEC & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main63310-2B210-04iST171..RHD..SED..GL..CBR198911-199208

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main63310-2B210-04iST171..RHD..SED..GL..CBR198911-199208

CKD SPEC OR NEW ZEALAND SPEC OR THAILAND SPEC,DARK BLUE,TRIM8#

main63310-2B210-04iST171..LHD..5F..GL199009-199208

CKD SPEC(FABRIC TYPE) & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main63310-2B210-06iST171..RHD..SED..GL..CBR198911-199208

CKD SPEC OR NEW ZEALAND SPEC OR THAILAND SPEC,SABLE,TRIM4#

main63310-2B210-06iST171..SED..5F..EFI198911-199208

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main63310-2B210-06iST171..SED..5F..EFI198911-199208

NEW ZEALAND SPEC OR W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main63310-2B210-06iST171..SED..5F..EFI198911-199208

CKD SPEC & W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main63310-2B210-06iST171..LHD..5F..GL199009-199208

CKD SPEC(FABRIC TYPE) & W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main63310-2B220-03iAT171,ST171..SED..GL..CBR198911-199208

W(MOON ROOF) & W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

main63310-2B220-04iAT171,ST171..SED..GL..CBR198911-199208

W(MOON ROOF) & W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

main63310-2B220-06iAT171,ST171..SED..GL..CBR198911-199208

W(MOON ROOF) & W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

main63310-95523-03iAT177,CT177..LHD198712-198803

GRAY,TRIM1#

sub63310-95531

main63310-95523-04iAT177,CT177..LHD198712-198803

BLUE,TRIM8#

sub63310-95531

main63310-95524-03iAT177..RHD..5F198712-198803

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

sub63310-95530

main63310-95524-03iAT177..RHD..3FC198712-198803

GRAY,TRIM1#

sub63310-95530

main63310-95524-06iAT177..RHD..5F198712-198802

SABLE,TRIM8#

sub63310-95530

main63310-95524-06iAT177..RHD..5F198712-198802

W(REAR 3-POINT SEAT BELT),SABLE,TRIM8#

sub63310-95530

main63310-95528-03iAT177..RHD..3FC198712-198803

CKD SPEC,GRAY,TRIM1#

main63310-95528-04iAT177..RHD..3FC198712-198803

CKD SPEC,BLUE,TRIM8#

main63310-95530-03iAT177..RHD198803-198911

GRAY,TRIM1#

sub63310-95530

main63310-95530-03iAT177,CT177198911-199211

W(FRONT SEAT BELT),GRAY,TRIM1#

sub63310-95530

main63310-95530-04iAT177..RHD198803-198911

BLUE,TRIM8#

sub63310-95530

main63310-95530-14iAT177,CT177198911-199211

W(FRONT SEAT BELT),DARK BLUE,TRIM8#

sub63310-95530

main63310-95531-03iAT177,CT177..LHD198803-199211

GRAY,TRIM1#

sub63310-95531

main63310-95531-04iAT177,CT177..LHD198803-198911

BLUE,TRIM8#

sub63310-95531

main63310-95531-14iAT177,CT177198911-199211

DARK BLUE,TRIM8#

sub63310-95531

main63310-95532-03iST171..WG198810-199211

GRAY,TRIM1#

sub63310-95532

main63310-95532-04iST171..WG198810-198911

BLUE,TRIM8#

sub63310-95532

main63310-95532-14iST171..WG198911-199211

DARK BLUE,TRIM8#

sub63310-95532

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-20070-03iAT171,CT170,ST171..(LB,SED)..(CBR,DSL)198712-199208

GRAY,TRIM1#

main63318-20070-04iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN..CBR198712-198911

BLUE,TRIM8#

main63318-20070-06iAT171,CT170,ST171..(LB,SED)..(EXS,GL,GX,XL)..(CBR,DSL)198712-199208

SABLE,TRIM4#

main63318-20070-24iAT171,CT170,ST171..SED..(CBR,DSL)198911-199208

DARK BLUE,TRIM8#

63341PAD, ROOF SILENCER, NO.1

main63341-95502iAT177,CT177,ST171..WG198712-199211

sub63341-22H92

63341GPAD, ROOF SILENCER

main63341-20170iAT171,CT170,ST171..SED..(GX,XL)198712-199208

FRONT

sub63341-22H92

main63341-32020iAT171,CT170,ST171..SED..(GX,XL)198712-199007

REAR

sub63341-22H92

main63341-32020iAT171..RHD..XL198712-198911

CKD SPEC(FABRIC TYPE)

sub63341-22H92

main63341-32020iAT171..RHD..XL198911-199007

sub63341-22H92

main63341-32040iAT171,ST171..EXS,GL,GT199007-199208

REAR

sub63341-22H92

main63341-95503iAT177,CT177,ST171..WG198712-199211

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63342-32010iAT171,CT170,ST171..LB,SED198712-199007

sub63341-22H92

main63342-32040iAT171,CT170,ST171..LB,SED199007-199208

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63343-20080iAT171,ST171..GL198712-199208

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-20130iAT17#,CT17#,ST171198712-199211

L=1031

main63361-20140iAT17#,CT17#,ST171198712-199211

L=1028

main63361-20150iAT17#,CT17#,ST171198712-199211

L=1034

main63361-95503iAT177,CT177198712-198809

L=1031

sub63361-20130

main63361-95504iAT177,CT177198712-198809

L=1028

sub63361-20140

main63361-95505iAT177,CT177198712-198809

L=1034

sub63361-20150

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-20130iAT171,CT170,ST171..LB,SED198712-199208

L=1023

main63362-20140iAT171,CT170,ST171..LB,SED198712-199208

L=1020

main63362-20150iAT171,CT170,ST171..LB,SED198712-199208

L=1026

main63362-95505iAT177,CT177,ST171..WG198712-199211

L=1024

main63362-95506iAT177,CT177,ST171..WG198712-199211

L=1030

main63362-95506iAT177,CT177,ST171..WG199207-199211

L=1027

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-20050iAT171,CT170,ST171..LB,SED198712-199208

L=1017

main63363-20060iAT171,CT170,ST171..LB,SED198712-199208

L=1014

main63363-20070iAT171,CT170,ST171..LB,SED198712-199208

L=1020

main63363-95502iAT177,CT177,ST171..WG198712-199211

L=1018

sub63363-95504

main63363-95503iAT177,CT177,ST171..WG198712-199211

L=1015

sub63363-95504

main63363-95504iAT177,CT177,ST171..WG198712-199211

L=1021

63364SUPPORT, ROOF HEADLINING, NO.4

main63364-20040iAT171,CT170,ST171..LB,SED198712-199208

L=1011

main63364-20050iAT171,CT170,ST171..LB,SED198712-199208

L=1008

main63364-20060iAT171,CT170,ST171..LB,SED198712-199208

L=1014

main63364-95501iAT177,CT177,ST171..WG198911-199211

L=1021

main63364-95501iAT177,CT177,ST171..WG198712-198911

L=1007

main63364-95502iAT177,CT177,ST171..WG198712-198911

L=1004

main63364-95502iAT177,CT177,ST171..WG198911-199211

L=1007

main63364-95503iAT177,CT177,ST171..WG198712-199211

L=1010

sub63364-95502

63366SUPPORT, ROOF HEADLINING, NO.6

main63366-20010iAT171..RHD..XL198712-198911

CKD SPEC(FABRIC TYPE),L=1018

main63366-20010iAT171,ST171..GL198712-199208

L=1018

main63366-20020iAT171,ST171..GL198712-198911

CKD SPEC(FABRIC TYPE),L=1015

main63366-20020iAT171..RHD..XL198712-199208

L=1015

main63366-20030iAT171..RHD;AT171..LHD..GL;ST171..EXS,GL,GT198712-199208

L=1021

main63366-20030iAT171,ST171..GL198712-198911

CKD SPEC(FABRIC TYPE),L=1021

63371DRETAINER, ROOF HEADLINING SUPPORT

main63371-20020iAT171,CT170,ST171..SED..(GX,XL)198712-199208

TYPE A

sub63371-30060

main63371-20020iAT171..RHD..XL198712-199208

CKD SPEC(FABRIC TYPE),TYPE A

sub63371-30060

main63371-20020iAT177,CT177,ST171..WG198712-199211

sub63371-30060

main63371-30050iAT171..RHD..XL198712-199208

CKD SPEC(FABRIC TYPE),TYPE B

main63371-30050iAT171,ST171..EXS,GL,GT198712-199208

TYPE B

63383CRETAINER, ROOF HEADLINING TRIM, REAR

main63383-20100iAT171,CT170,ST171..SED198712-198908

sub63383-20130

main63383-20130iAT171,CT170,ST171..SED198712-199208

63387PAD, ROOF HEADLINING FORMING

main63387-20010iAT171,ST171..GL198712-199208

63388FRAME, ROOF HEADLINING FORMING

main63385-20080iAT171,ST171..GL198712-199208

63395CLIP, ROOF HEADLINING TRIM

main63395-30010iAT171..RHD;AT171..LHD..GL;ST171..EXS,GL,GT198712-199208

9015940043

main90159-40043

9354014012

main93540-14012

9356014012

main93560-14012

20 parts on this diagram · 4 diagrams in section
