MAT & CARPET

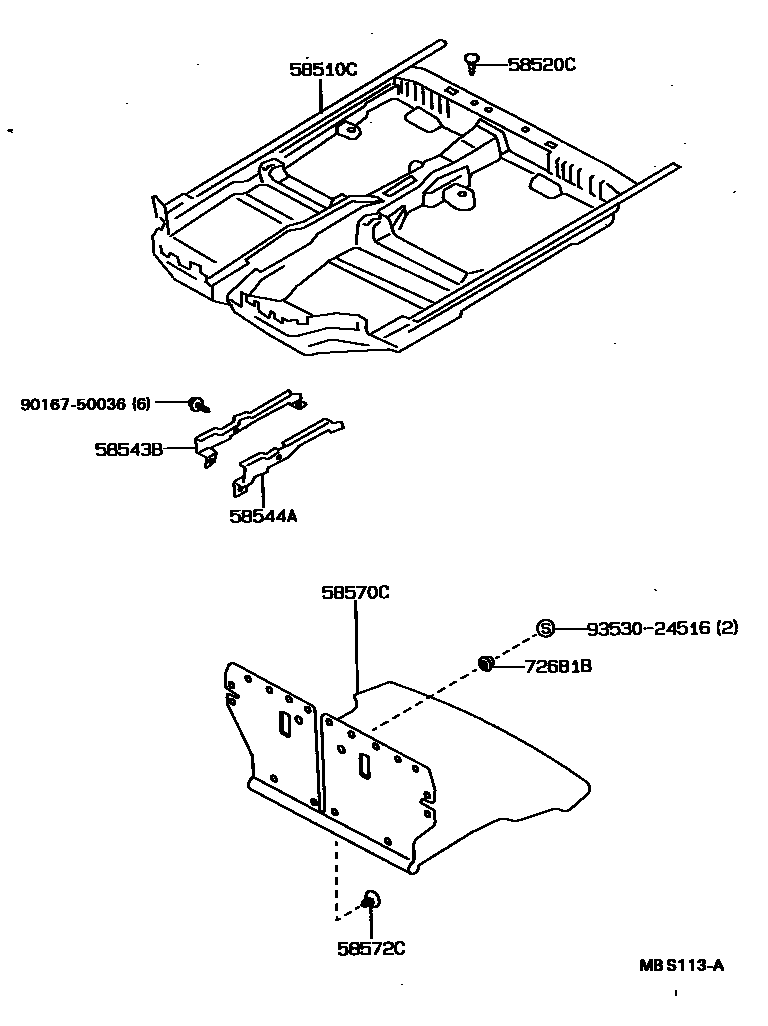

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-2B270-03i198712-199203
GRAY,TRIM1#
main58510-2B270-04i198812-198911
W(FRONT SEAT BELT),BLUE,TRIM8#
main58510-2B270-04i198712-198812
BLUE,TRIM8#
main58510-2B270-06i198812-199203
W(FRONT SEAT BELT),SABLE,TRIM4#
main58510-2B270-06i198712-198812
SABLE,TRIM4#
main58510-2B270-14i198911-199203
DARK BLUE,TRIM8#
main58510-2B280-03i198712-198911
GRAY,TRIM1#
main58510-2B280-04i198812-198911
W(FRONT SEAT BELT),BLUE,TRIM8#
main58510-2B280-04i198712-198812
BLUE,TRIM8#
main58510-2B280-06i198812-198911
W(FRONT SEAT BELT),SABLE,TRIM4#
main58510-2B280-06i198712-198812
SABLE,TRIM4#
main58510-2B281-03i198911-199208
W(FRONT SEAT BELT),GRAY,TRIM1#
main58510-2B281-03i198911-199203
GRAY,TRIM1#
main58510-2B281-04i198911-199203
DARK BLUE,TRIM8#
main58510-2B281-04i198911-199208
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main58510-2B281-06i198911-199203
SABLE,TRIM4#
main58510-2B281-06i198911-199208
W(FRONT SEAT BELT),SABLE,TRIM4#
main58510-2B310-03i198812-199208
GRAY,TRIM1#
main58510-2B310-04i198812-198911
BLUE,TRIM8#
main58510-2B310-06i198812-199208
SABLE,TRIM4#
main58510-2B310-14i198911-199208
DARK BLUE,TRIM8#
main58510-2B320-03i198812-199208
W(LUGGAGE OPENER CANCEL MECHANISM),GRAY,TRIM1#
sub58510-2B310
main58510-2B320-04i198812-198911
W(LUGGAGE OPENER CANCEL MECHANISM),BLUE,TRIM8#
sub58510-2B310
main58510-2B320-06i198812-199208
W(LUGGAGE OPENER CANCEL MECHANISM),SABLE,TRIM4#
sub58510-2B310
main58510-2B320-14i198911-199208
W(LUGGAGE OPENER CANCEL MECHANISM),DARK BLUE,TRIM8#
sub58510-2B310
main58510-2B330-03i198712-198911
GRAY,TRIM1#
main58510-2B330-04i198812-198911
W(FRONT SEAT BELT),BLUE,TRIM8#
main58510-2B330-04i198712-198812
BLUE,TRIM8#
main58510-2B330-06i198812-198911
W(FRONT SEAT BELT),SABLE,TRIM4#
main58510-2B330-06i198712-198812
SABLE,TRIM4#
main58510-2B331-03i198911-199208
W(FRONT SEAT BELT),GRAY,TRIM1#
sub58510-2B811
main58510-2B331-03i198911-199203
GRAY,TRIM1#
sub58510-2B811
main58510-2B331-04i198911-199208
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
sub58510-2B811
main58510-2B331-04i198911-199203
DARK BLUE,TRIM8#
sub58510-2B811
main58510-2B331-06i198911-199208
W(FRONT SEAT BELT),SABLE,TRIM4#
sub58510-2B811
main58510-2B331-06i198911-199203
SABLE,TRIM4#
sub58510-2B811
main58510-2B360-03i198712-198911
GRAY,TRIM1#
main58510-2B361-03i198911-199203
GRAY,TRIM1#
main58510-2B440-03i198812-198911
GRAY,TRIM1#
main58510-2B440-04i198812-198911
BLUE,TRIM8#
main58510-2B440-06i198812-198911
SABLE,TRIM4#
main58510-2B441-03i198911-199208
GRAY,TRIM1#
main58510-2B441-04i198911-199208
DARK BLUE,TRIM8#
main58510-2B441-06i198911-199208
SABLE,TRIM4#
main58510-2B450-03i198812-199208
W(FRONT SEAT BELT),GRAY,TRIM1#
sub58510-2B310
main58510-2B450-03i198712-198812
GRAY,TRIM1#
sub58510-2B310
main58510-2B450-04i198712-198812
BLUE,TRIM8#
sub58510-2B310
main58510-2B450-04i198812-198911
W(FRONT SEAT BELT),BLUE,TRIM8#
sub58510-2B310
main58510-2B450-06i198812-199208
W(FRONT SEAT BELT),SABLE,TRIM4#
sub58510-2B310
main58510-2B450-06i198712-198812
SABLE,TRIM4#
sub58510-2B310
main58510-2B450-14i198911-199208
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
sub58510-2B310
main58510-2B460-03i198712-198812
GRAY,TRIM1#
main58510-2B460-03i198812-198911
W(FRONT SEAT BELT),GRAY,TRIM1#
main58510-2B460-04i198712-198812
BLUE,TRIM8#
main58510-2B460-04i198812-198911
W(FRONT SEAT BELT),BLUE,TRIM8#
main58510-2B460-06i198812-198911
W(FRONT SEAT BELT),SABLE,TRIM4#
main58510-2B460-06i198712-198812
SABLE,TRIM4#
main58510-2B461-03i198911-199208
W(FRONT SEAT BELT),GRAY,TRIM1#
sub58510-2B441
main58510-2B461-04i198911-199208
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
sub58510-2B441
main58510-2B461-06i198911-199208
W(FRONT SEAT BELT),SABLE,TRIM4#
sub58510-2B441
main58510-2B590-03i198812-199208
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),GRAY,TRIM1#
sub58510-2B310
main58510-2B590-03i198712-198812
W(LUGGAGE OPENER CANCEL MECHANISM),GRAY,TRIM1#
sub58510-2B310
main58510-2B590-04i198712-198812
W(LUGGAGE OPENER CANCEL MECHANISM),BLUE,TRIM8#
sub58510-2B310
main58510-2B590-04i198812-198911
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),BLUE,TRIM8#
sub58510-2B310
main58510-2B590-06i198812-199208
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),SABLE,TRIM4#
sub58510-2B310
main58510-2B590-06i198712-198812
W(LUGGAGE OPENER CANCEL MECHANISM),SABLE,TRIM4#
sub58510-2B310
main58510-2B590-14i198911-199208
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),DARK BLUE,TRIM8#
sub58510-2B310
main58510-2B600-03i198812-199203
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),GRAY,TRIM1#
sub58510-2B270
main58510-2B600-03i198712-198812
W(LUGGAGE OPENER CANCEL MECHANISM),GRAY,TRIM1#
sub58510-2B270
main58510-2B600-04i198812-198911
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),BLUE,TRIM8#
sub58510-2B270
main58510-2B600-04i198712-198812
W(LUGGAGE OPENER CANCEL MECHANISM),BLUE,TRIM8#
sub58510-2B270
main58510-2B600-06i198712-199203
W(LUGGAGE OPENER CANCEL MECHANISM),SABLE,TRIM4#
sub58510-2B270
main58510-2B600-14i198911-199203
W(LUGGAGE OPENER CANCEL MECHANISM & FRONT SEAT BELT),DARK BLUE,TRIM8#
sub58510-2B270
main58510-2B780-03i198812-199203
GRAY,TRIM1#
main58510-2B780-04i198812-198911
BLUE,TRIM8#
main58510-2B780-06i198812-199203
SABLE,TRIM4#
main58510-2B780-14i198911-199203
DARK BLUE,TRIM8#
main58510-2B790-03i198812-199203
W(LUGGAGE OPENER CANCEL MECHANISM),GRAY,TRIM1#
sub58510-2B801
main58510-2B790-04i198812-198911
W(LUGGAGE OPENER CANCEL MECHANISM),BLUE,TRIM8#
sub58510-2B801
main58510-2B790-06i198812-199203
W(LUGGAGE OPENER CANCEL MECHANISM),SABLE,TRIM4#
sub58510-2B801
main58510-2B790-14i198911-199203
W(LUGGAGE OPENER CANCEL MECHANISM),DARK BLUE,TRIM8#
sub58510-2B801
main58510-2B800-03i198812-198911
GRAY,TRIM1#
main58510-2B800-04i198812-198911
BLUE,TRIM8#
main58510-2B800-06i198812-198911
SABLE,TRIM4#
main58510-2B801-03i198911-199208
GRAY,TRIM1#
main58510-2B801-04i198911-199208
DARK BLUE,TRIM8#
main58510-2B801-06i198911-199208
SABLE,TRIM4#
main58510-2B810-03i198812-198911
GRAY,TRIM1#
main58510-2B810-04i198812-198911
BLUE,TRIM8#
main58510-2B810-06i198812-198911
SABLE,TRIM4#
main58510-2B811-03i198911-199208
GRAY,TRIM1#
main58510-2B811-04i198911-199208
DARK BLUE,TRIM8#
main58510-2B811-06i198911-199208
SABLE,TRIM4#
main58510-95502-03i198712-199211
GRAY,TRIM1#
main58510-95502-04i198712-198911
BLUE,TRIM8#
main58510-95502-14i198911-199211
DARK BLUE,TRIM8#
main58510-95504-03i198810-199011
GRAY,TRIM1#
main58510-95504-04i198810-198911
BLUE,TRIM8#
main58510-95504-14i199011-199211
DARK BLUE,TRIM8#
main58510-95509-03i198712-199211
GRAY,TRIM1#
main58510-95509-04i198712-198911
BLUE,TRIM8#
main58510-95509-14i198911-199211
DARK BLUE,TRIM8#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-05021-04i198712-198911
BLUE,TRIM8#
sub90467-05021
sub90467-06177
main90467-05021-13i198712-199211
GRAY,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-14i198911-199211
DARK BLUE,TRIM8#
sub90467-05021
sub90467-06177
main90467-06016-33i198712-199208
GRAY,TRIM1#
sub90467-06016
sub90467-07049
main90467-06016-40i198712-198911
DARK BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-48i198911-199208
BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-57i198712-199208
SABLE,TRIM4#
sub90467-06016
sub90467-07049
main90467-06016-W3i199110-199203
DK.BLUE,TRIM8#
sub90467-06016
sub90467-07049
58543BBRACKET, FLOOR CARPET, RH
main58543-20010i198712-199211
58544ABRACKET, FLOOR CARPET, LH
main58544-20010i198712-199211
58570CCARPET ASSY, REAR FLOOR
main58571-20090-03i198712-198901
GRAY,TRIM1#
main58571-20090-04i198712-198901
BLUE,TRIM8#
main58571-20090-06i198712-198901
SABLE,TRIM4#
main58571-20120-03i198901-198911
GRAY,TRIM1#
main58571-20120-04i198901-198911
BLUE,TRIM8#
main58571-20120-06i198901-198911
SABLE,TRIM4#
main58571-20121-03i198911-199208
GRAY,TRIM1#
main58571-20121-04i198911-199208
DARK BLUE,TRIM8#
main58571-20121-06i198911-199208
SABLE,TRIM4#
main58571-95500-03i198810-199211
GRAY,TRIM1#
main58571-95500-04i198810-198911
BLUE,TRIM8#
main58571-95500-14i198911-199211
DARK BLUE,TRIM8#
main58571-95501-03i198712-199211
GRAY,TRIM1#
main58571-95501-04i198712-198911
BLUE,TRIM8#
main58571-95501-14i198911-199211
DARK BLUE,TRIM8#
58572CCLIP, REAR FLOOR MAT SET
main90467-06016-33i198712-199211
GRAY,TRIM1#
sub90467-06016
sub90467-07049
main90467-06016-40i198712-198911
DARK BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-48i198911-199211
BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-57i198712-198911
SABLE,TRIM4#
sub90467-06016
sub90467-07049
main90467-06016-W3i199110-199211
DK.BLUE,TRIM8#
sub90467-06016
sub90467-07049
72681BHOOK, REAR SEATBACK LOCK, LOWER
main72681-16010-33i198712-198901
GRAY,TRIM1#
sub72681-16010
main72681-16010-34i198712-198811
DARK BLUE,TRIM8#
sub72681-16010
main72681-16010-36i198712-198811
SABLE,TRIM4#
sub72681-16010
main72681-16010-J1i198811-198901
DARK BLUE,TRIM8#
sub72681-16010
main72681-20010-03i198901-199208
GRAY,TRIM1#
sub72681-20010
main72681-20010-04i198901-198911
BLUE,TRIM8#
sub72681-20010
main72681-20010-06i198901-199208
SABLE,TRIM4#
sub72681-20010
main72681-20010-14i198911-199202
DARK BLUE,TRIM8#
sub72681-20010
9016750036
main90167-50036
9353024516
main93530-24516

9 parts on this diagram · 2 diagrams in section
