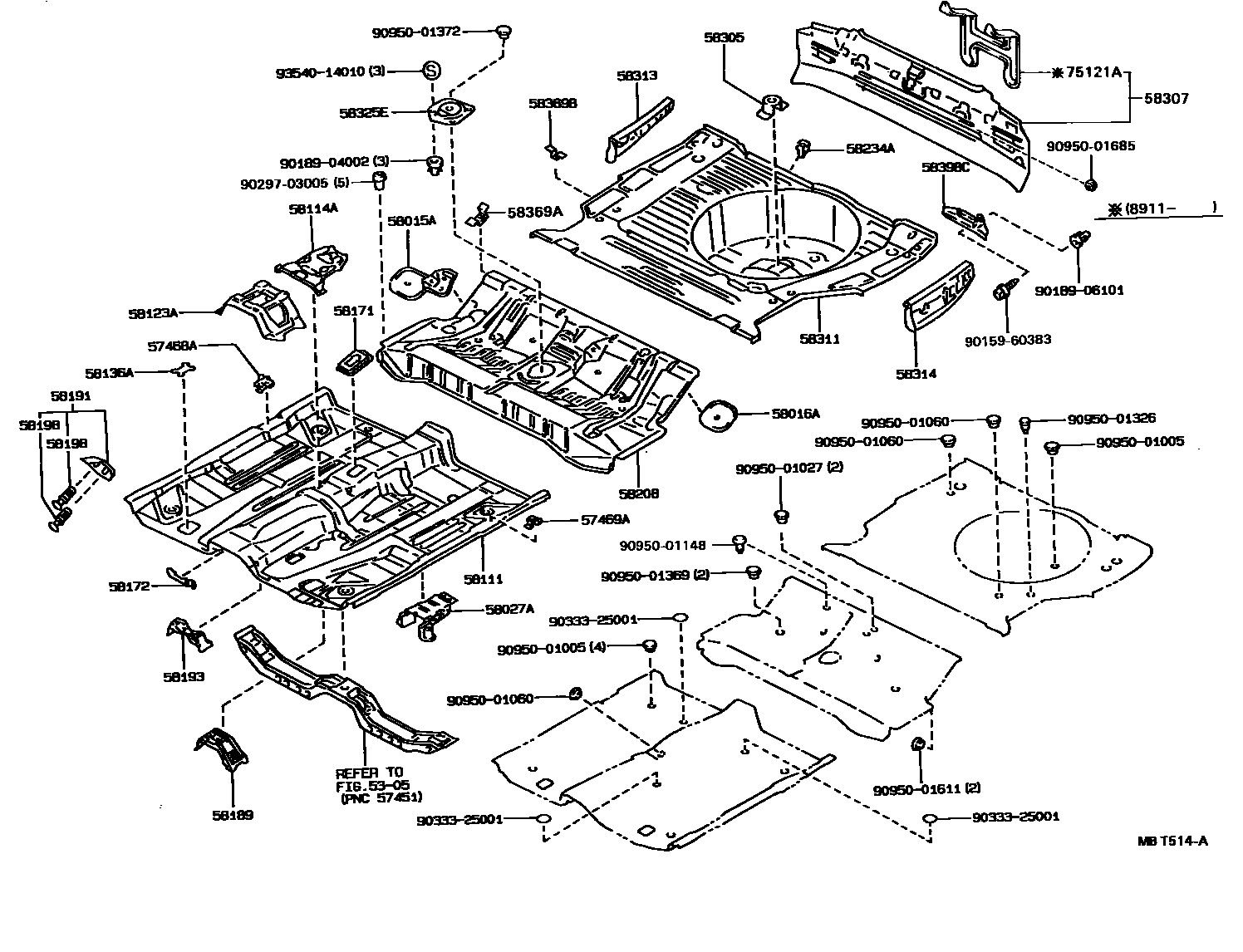

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

5305

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-20030iAT17#,CT17#,ST171198712-199211

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-20030iAT17#,CT17#,ST171198712-199211

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-32030iAT171,CT170,ST171198712-199211

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32020iAT171,CT170,ST171198712-199211

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20070iAT17#,CT17#,ST171198712-199211

58111PAN, FRONT FLOOR

main58111-20120iAT17#,CT17#,ST171198712-199211

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20040iAT17#,CT17#,ST171198712-199211

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20040iAT17#,CT17#,ST171198712-199211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20010×2iAT17#,CT17#,ST171198712-199211

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT17#,CT17#,ST171198911-198912

main58107-20080iAT17#,CT17#,ST171198712-198803

main58171-20100iAT17#,CT17#,ST171198912-199211

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-20040iAT17#,CT17#,ST171198712-199211

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-20020iAT17#,CT17#,ST171198712-199211

58191FOOTREST, FRONT FLOOR

main58191-20040iAT17#,ST171..RHD198712-199211

main58192-20020iAT17#,CT17#,ST171..LHD198712-199211

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-20090iAT17#,CT17#,ST171198712-199211

58198CLIP, FOOTREST

main58198-20020iAT17#,ST171..RHD198712-199211

L=97.1

main58198-20030iAT17#,ST171..RHD198712-199211

L=89.1

main58198-20040iAT17#,CT17#,ST171..LHD198712-199211

L=34.6

main58198-20050iAT17#,CT17#,ST171..LHD198712-199211

L=44.8

58208PAN, CENTER FLOOR

main58211-32050iAT171,CT170,ST171198712-198804

main58211-32051iAT171,ST171..XL199203-199211

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32020iAT171,CT170,ST171..LB,SED198712-199208

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAT171,CT170,ST171..LB,SED198712-199208

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20630iAT171,CT170,ST171..SED198712-198807

main58307-20631iAT171,CT170,ST171..SED198807-198907

sub90467-07097

main58307-20632iAT171,CT170,ST171..SED198907-198910

sub90950-01685

main58307-20633iAT171,CT170,ST171..SED198910-198911

main58307-20640iST171..LB198712-198807

main58307-20641iST171..LB198807-198910

sub90950-01685

main58307-20642iST171..LB..GEN..CBR198911-199208

main58307-20850iAT171,CT170,ST171..SED..GEN..(CBR,DSL)198911-199208

EXTERIOR PACKAGE

main58307-20860iST171..GT;ST171..LB..EFI198911-199203

main58307-95516iST171..WG198810-199211

main58307-95517iAT177,CT177198712-199211

58311PAN, REAR FLOOR

main58311-32090iAT171,CT170,ST171..LB,SED198712-199208

58313PANEL, REAR FLOOR SIDE, RH

main58313-20210iAT171,CT170,ST171..SED198712-199208

main58313-20240iST171..LB198712-199208

58314PANEL, REAR FLOOR SIDE, LH

main58314-20190iAT171,CT170,ST171..SED198712-199208

main58314-20220iST171..LB198712-199208

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAT177,CT177198712-199211

main58325-32020iAT171,CT170,ST171198712-199211

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010×2iAT171,CT170,ST171198712-199211

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010×2iAT171,CT170,ST171..LB,SED198712-199208

58398CCOVER, BODY LOWER BACK, LH

main58398-20050iAT171,CT170,ST171..LB,SED198712-199208

75121ABRACKET, REAR LICENSE PLATE

main75121-20150iST171..EFI;AT171,ST171..GCC198911-199208

EXTERIOR PACKAGE

9015960383

main90159-60383

9018904002

main90189-04002

9018906101

main90189-06101

9029703005

main90297-03005

9033325001

main90333-25001

9095001005

main90950-01005

9095001027

main90950-01027

9095001060

main90950-01060

9095001148

main90950-01148

9095001326

main90950-01326

9095001369

main90950-01369

9095001372

main90950-01372

9095001611

main90950-01611

9095001685

main90950-01685

9354014010

main93540-14010

43 parts on this diagram · 4 diagrams in section
