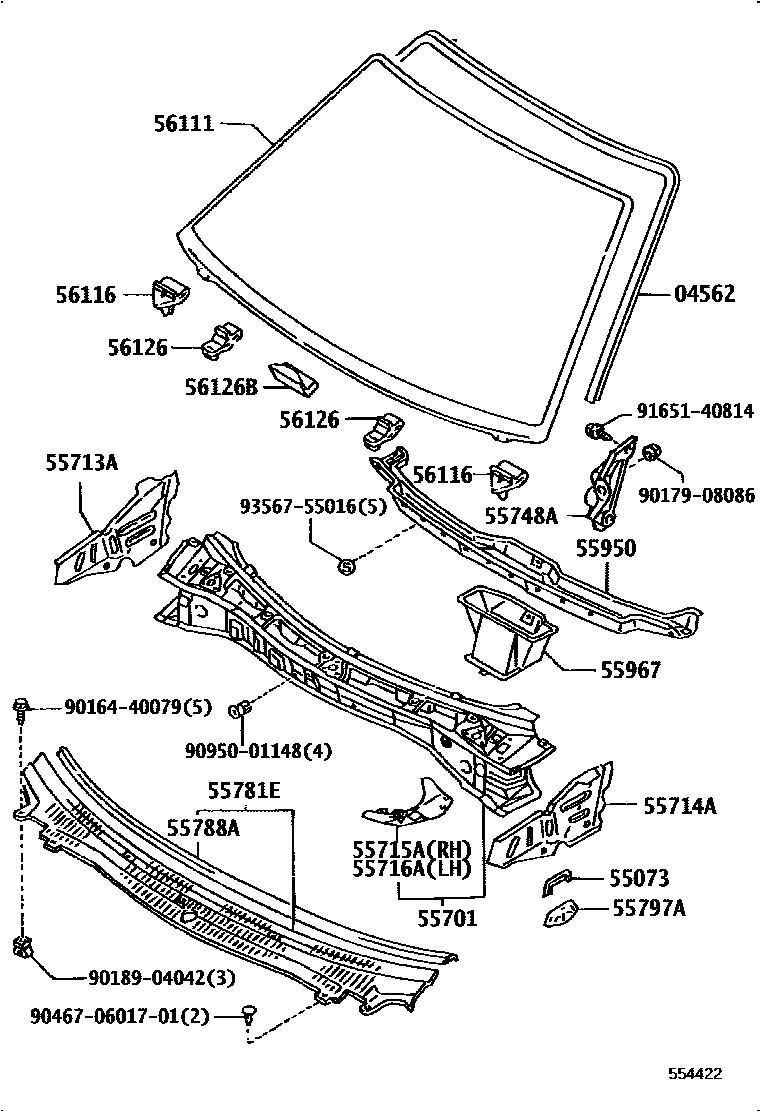

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-20020iAT17#,CT17#,ST171198712-199211

sub04562-30040

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020×2iAT17#,CT17#,ST171198712-199211

55701PANEL SUB-ASSY, COWL

main55700-20670iAT17#,CT17#,ST171..LHD198712-199211

main55700-20700iAT17#..RHD198712-198903

main55700-20710iST171..RHD..CBR198712-199211

sub55700-20800

sub90333-20001

main55700-20770iAT17#..RHD;ST171..EFI198903-199211

55713APANEL, COWL TOP SIDE, RH

main55713-20100iAT17#,CT17#,ST171198712-199211

55714APANEL, COWL TOP SIDE, LH

main55714-20100iAT17#,CT17#,ST171198712-199211

55715ABRACE, COWL TOP TO APRON, RH

main55715-20090iAT17#,CT17#,ST171198712-199211

55716ABRACE, COWL TOP TO APRON, LH

main55716-20060iAT17#,CT17#,ST171198712-199211

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-20100iAT17#,ST171..RHD198712-199211

main55748-20110iAT17#,CT17#,ST171..LHD198712-199211

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20040iAT17#,ST171..RHD198712-199211

main55708-20050iAT17#,CT17#,ST171..LHD198712-199211

sub55708-20090

main55708-20080iST171..SED..EFI;AT171..RHD..5F..GL199002-199208

INDONESIA SPEC

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-20080iAT17#,CT17#,ST171198712-199211

55797ASEAL, COWL WATER EXTRACT

main55797-20030×2iAT17#,CT17#,ST171198712-199211

55950NOZZLE ASSY, DEFROSTER

main55951-20120iAT17#,ST171..RHD198712-199211

main55951-20130iAT17#,CT17#,ST171..LHD198712-199211

55967NOZZLE, DEFROSTER, LOWER

main55967-20020iAT17#,ST171..RHD198712-199211

main55967-20030iAT17#,CT17#,ST171..LHD198712-199211

56111GLASS, WINDSHIELD

main56111-20560iAT17#,CT17#..GEN;ST171..(LB,SED)..GEN..CBR198712-199211

*TT,T=5.0,BLUE

main56111-20570iAT171,ST171..GCC198712-199203

*TL,T=5.3,BLUE

main56111-20580iAT17#,CT17#;ST171..LB,SED198712-198911

*TL,T=5.3,BLUE,W(TOP SHADE)

main56111-20581iAT17#,CT17#;ST171..LB,SED198911-199211

*TL,T=5.3,BLUE,W(TOP SHADE)

main56111-20610iAT171,ST171..RHD..(LB,SED)..CBR198911-199208

*LAM,T=5.3,CKD SPEC

main56111-20621iAT171,ST171..RHD..(LB,SED)..CBR198911-199208

*LAM,T=5.3,CKD SPEC,W(TOP SHADE)

56116SPACER, WINDSHIELD GLASS

main56116-20050×2iAT17#,CT17#,ST171198712-199211

WHITE

main56116-20070×2iAT17#,CT17#,ST171199009-199211

BLUE

main56116-20080×2iST171..WG;ST171..EFI198911-199008

BLACK

main56116-20090×2iAT17#,CT17#,ST171198712-199009

RED

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-20010×2iAT17#,CT17#,ST171198712-199211

56126BSPACER, WINDSHIELD GLASS, NO.2

main56126-20020iAT17#,CT17#,ST171198712-199211

9016440079

main90164-40079

9017908086

main90179-08086

9018904042

main90189-04042

904670601701

main90467-0601701

9095001148

main90950-01148

9165140814

main91651-40814

9356755016

main93567-55016

24 parts on this diagram · 2 diagrams in section
