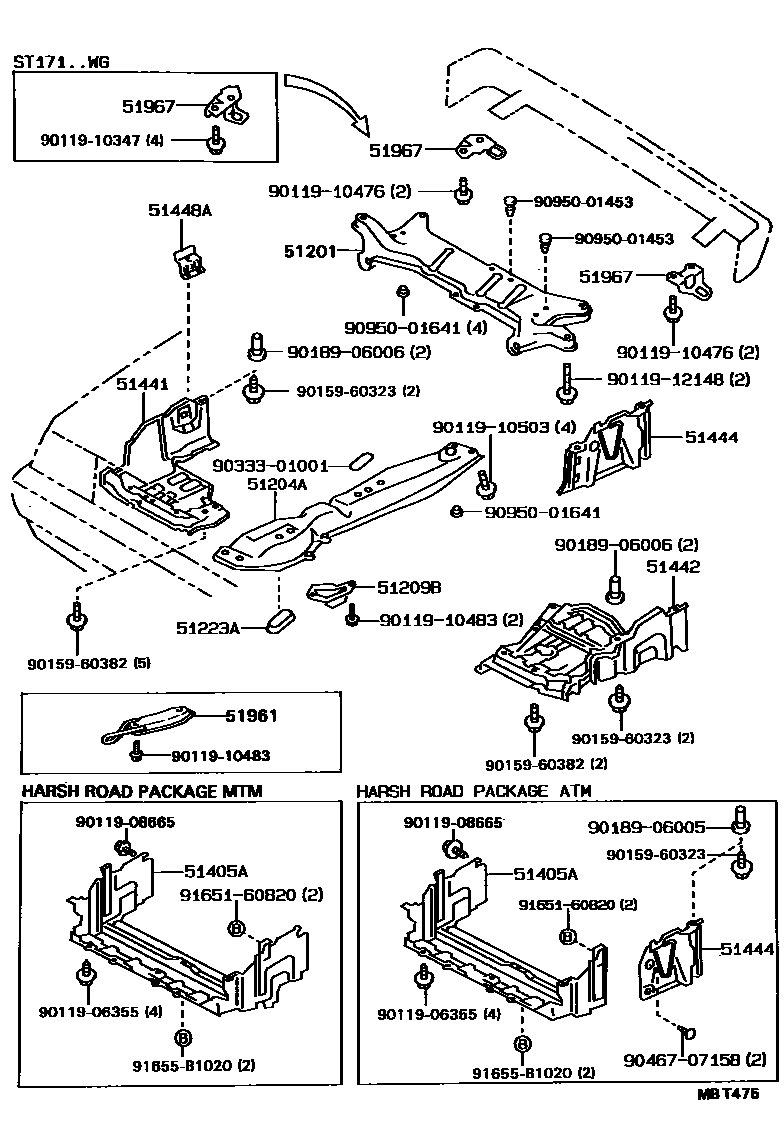

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20210iAT17#,ST171..RHD198712-199211

main51201-20220iAT17#,CT17#,ST171..LHD198712-199211

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20070iAT17#,CT17#,ST171198712-199211

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAT17#,CT17#,ST171198712-199211

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAT17#,CT17#,ST171198712-199211

sub51223-20030

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-20020iAT17#,CT17#;ST171..SED..5F..EFI;ST171..(LB,SED)..(3FC,5F)..CBR198712-199211

HARSH ROAD PACKAGE 2

main51405-20030iST171..4FC..CBR;ST171..SED..4FC..EFI198712-199208

HARSH ROAD PACKAGE 2

51441COVER, ENGINE UNDER, NO.1

main51441-20150iAT17#,CT17#,ST171198712-199211

51442COVER, ENGINE UNDER, NO.2

main51442-20090iAT17#,CT17#,ST171..MTM198712-199211

main51442-20110iAT17#..ATM;ST171..3FC198712-199211

main51442-20120iST171..4FC198712-199208

51444COVER, ENGINE UNDER, REAR LH

main51444-20050iST171..4FC198712-199208

main51444-20070iST171..4FC..CBR;ST171..SED..4FC..EFI198712-199208

HARSH ROAD PACKAGE 2

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT17#,CT17#,ST171198712-199211

51961HOOK, NO.1

main51960-20010iAT171,ST171..GL198911-199208

51967HOOK, TRANSPORT, REAR

main51095-20070iAT171,CT170,ST171..LB,SED198712-199208

RH

main51967-95501iST171..WG198810-199211

RH

main51968-20030iAT171,CT170,ST171..LB,SED198712-199208

LH

main51968-95501iST171..WG198810-199211

LH

9011906355

main90119-06355

9011908665

main90119-08665

9011910347

main90119-10347

9011910476

main90119-10476

9011910483

main90119-10483

9011910503

main90119-10503

9011912148

main90119-12148

9015960323

main90159-60323

9015960382

main90159-60382

9018906005

main90189-06005

9018906006

main90189-06006

9033301001

main90333-01001

9046707158

main90467-07158

9095001453

main90950-01453

9095001641

main90950-01641

9165160820

main91651-60820

91655B1020

main91655-B1020

28 parts on this diagram · 2 diagrams in section
