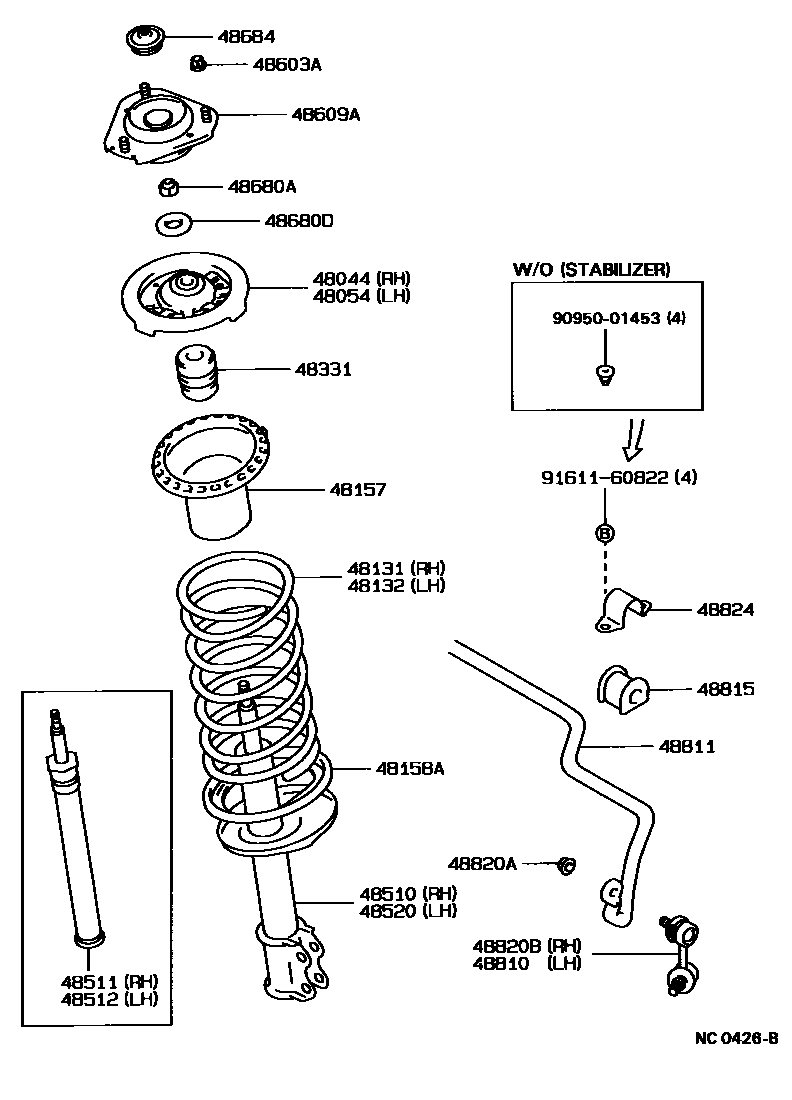

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-20020iAT17#,CT17#,ST171198712-199211

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48054-20010iAT17#,CT17#,ST171198712-199211

48131SPRING, FRONT COIL, RH

main48131-2G200iAT177..5F198712-198805

W(STABILIZER BAR)

sub48131-2G190

main48131-2G220iAT171..RHD..ATM198712-199208

W(STABILIZER BAR)

main48131-2G220iAT177..ATM198712-199211

main48131-2G250iAT171..RHD..MTM198712-199208

HARSH ROAD PACKAGE & W(STABILIZER BAR)

main48131-2G250iAT177..5F198712-199211

HARSH ROAD PACKAGE

main48131-2G280iAT171..RHD..ATM198712-199208

HARSH ROAD PACKAGE & W(STABILIZER BAR)

main48131-2G280iAT177..ATM198712-199211

HARSH ROAD PACKAGE

main48131-2G670iAT171..ATM198712-199208

main48131-2G690iST171..WG198911-199211

NEW ZEALAND SPEC

main48131-2G690iCT17#,ST171..5F..(CBR,DSL)198712-198911

main48131-2G800iST171..ATM..CBR198712-199208

main48131-2G800iAT171..MTM198712-199208

HARSH ROAD PACKAGE

main48131-2G810iAT171..3FC198712-198805

HARSH ROAD PACKAGE

sub48131-2G820

main48131-2G820iAT171..ATM198805-199208

HARSH ROAD PACKAGE

main48131-2G820iST171..SED..4FC..EFI198805-198911

main48131-2G840iCT17#;ST171..(LB,SED)..5F..CBR198712-199211

HARSH ROAD PACKAGE

main48131-2G860iST171..ATM..CBR;ST171..SED..5F..EFI198712-199208

HARSH ROAD PACKAGE

main48131-2G870iST171..SED..4FC..EFI198712-199208

HARSH ROAD PACKAGE

main48131-2H040iAT171..MTM198712-199208

main48131-2L760iST171..WG198911-199211

main48131-2L780iST171..SED..5F..EFI198911-199208

main48131-2L800iST171..SED..4FC..EFI198911-199208

48132SPRING, FRONT COIL, LH

main48131-2G200iAT171..RHD..3FC198712-198805

W(STABILIZER BAR)

sub48131-2G190

main48131-2G220iAT177..LHD..3FC198712-199211

main48131-2G230iAT171..RHD..MTM198712-199208

HARSH ROAD PACKAGE & W(STABILIZER BAR)

main48131-2G230iAT177..RHD..5F198712-199211

HARSH ROAD PACKAGE

main48131-2G250iAT171..RHD..ATM198712-199208

HARSH ROAD PACKAGE & W(STABILIZER BAR)

main48131-2G250iAT177..LHD..5F;AT177..RHD..ATM198712-199211

HARSH ROAD PACKAGE

main48131-2G280iAT177..LHD..3FC198712-199211

HARSH ROAD PACKAGE

main48131-2G630iAT177..RHD..5F198712-199211

main48131-2G630iAT171..RHD..MTM198712-199208

W(STABILIZER BAR)

main48131-2G670iAT171..LHD..3FC;ST171..RHD..5F..CBR198712-199208

main48131-2G670iST171..WG198911-199211

NEW ZEALAND SPEC

main48131-2G690iAT171..RHD..MTM198712-199208

HARSH ROAD PACKAGE

main48131-2G690iST171..5F..EFI;ST171..4FC..GEN..CBR;CT17#,ST171..LHD..5F198712-199211

main48131-2G800iST171..LHD..ATM198712-199203

main48131-2G800iAT171..RHD..ATM;AT171..LHD..MTM198712-199208

HARSH ROAD PACKAGE

main48131-2G810iAT171..LHD..3FC;ST171..RHD..5F..CBR198712-198805

HARSH ROAD PACKAGE

sub48131-2G820

main48131-2G820iAT171..LHD..3FC;ST171..RHD..(LB,SED)..5F..CBR198805-199208

HARSH ROAD PACKAGE

main48131-2G840iST171..SED..5F..EFI;ST171..4FC..GEN..CBR;CT17#,ST171..LHD..5F198712-199211

HARSH ROAD PACKAGE

main48131-2G860iST171..LHD..ATM;ST171..SED..4FC..EFI198712-199208

HARSH ROAD PACKAGE

main48131-2H010iAT171..RHD..MTM198712-199208

main48131-2H040iAT171..RHD..ATM;AT171..LHD..MTM198712-199208

main48131-2L750iST171..WG198911-199211

main48131-2L760iST171..SED..5F..EFI198911-199208

main48131-2L780iST171..SED..4FC..EFI198911-199208

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20070iAT17#,CT17#,ST171198712-199211

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iAT17#,CT17#,ST171198712-199008

main48158-20060iAT17#,CT17#,ST171199009-199211

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAT17#198712-199106

sub48331-12120

main48331-12120iAT17#199106-199211

main48331-12130iCT17#,ST171198712-199211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20471iCT17#,ST171198712-199211

sub48510-20392

main48510-20480iST171..(LB,SED)..CBR;CT17#,ST171..(SED,WG)..(DSL,EFI)198712-199211

HARSH ROAD PACKAGE

sub48510-20392

main48510-20511iAT17#198712-199211

sub48510-2B220

main48510-20520iAT17#198712-199211

HARSH ROAD PACKAGE

sub48510-2B230

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20240iCT17#,ST171..EXS,GL,GT,XL198712-199211

*90

sub48511-20290

main48511-20250iCT17#,ST171..(SED,WG)..(DSL,EFI);ST171..(LB,SED)..(EXS,GL,GT,XL)..CBR198712-199211

*90,HARSH ROAD PACKAGE

main48511-20270iAT17#198712-199211

main48511-20280iAT17#198712-199211

*90,HARSH ROAD PACKAGE

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20240iCT17#,ST171..EXS,GL,GT,XL198712-199211

*90

sub48511-20290

main48511-20250iCT17#,ST171..(SED,WG)..(DSL,EFI);ST171..(LB,SED)..(EXS,GL,GT,XL)..CBR198712-199211

*90,HARSH ROAD PACKAGE

main48511-20270iAT17#198712-199211

main48511-20280iAT17#198712-199211

*90,HARSH ROAD PACKAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20471iCT17#,ST171198712-199211

sub48520-20382

main48520-20480iST171..(LB,SED)..CBR;CT17#,ST171..(SED,WG)..(DSL,EFI)198712-199211

HARSH ROAD PACKAGE

sub48520-20382

main48520-20511iAT17#198712-199211

sub48520-2B220

main48520-20520iAT17#198712-199211

HARSH ROAD PACKAGE

sub48520-2B230

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iAT17#,CT17#,ST171198712-199211

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-20140iAT171,ST171..CBR198712-198911

sub48609-20210

main48609-20160iST171..EFI;AT177,CT17#198712-198911

W(POWER STEERING)

sub48609-20220

main48609-20210iAT171,ST171..CBR198911-199211

main48609-20220iST171..EFI;AT177,CT17#198911-199211

W(POWER STEERING)

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAT17#,CT17#,ST171198712-199211

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT17#,CT17#,ST171198712-199211

48684COVER, BEARING DUST

main48684-32010iAT17#,CT17#,ST171198712-199211

48810LINK ASSY, FRONT STABILIZER, LH

main48810-20010iAT171..RHD;CT17#,ST171198712-199211

48811BAR, STABILIZER, FRONT

main48811-20420iST171..LB..GEN..CBR;ST171..SED..4FC..EFI;ST171..RHD..SED..5F..XL198712-199208

NEW ZEALAND SPEC

main48811-20420iST171..SED..5F..EFI198805-198911

THAILAND SPEC

main48811-20420iST171..RHD..SED..GL..CBR198805-199208

NEW ZEALAND SPEC & THAILAND SPEC

main48811-20420iST171..WG;ST171..EFI198810-199211

main48811-20450iCT17#;AT171..RHD..(4F,4FC);ST171..(LB,SED)..CBR198712-199211

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30060iAT171..RHD;CT17#,ST171198712-199211

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAT171..RHD;CT17#,ST171198712-199211

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20030iAT171..RHD;CT17#,ST171198712-199211

48824BRACKET, STABILIZER, FRONT

main48824-12040iAT171..RHD;CT17#,ST171198712-199211

9095001453

main90950-01453

9161160822

main91611-60822

24 parts on this diagram · 1 diagram in section
