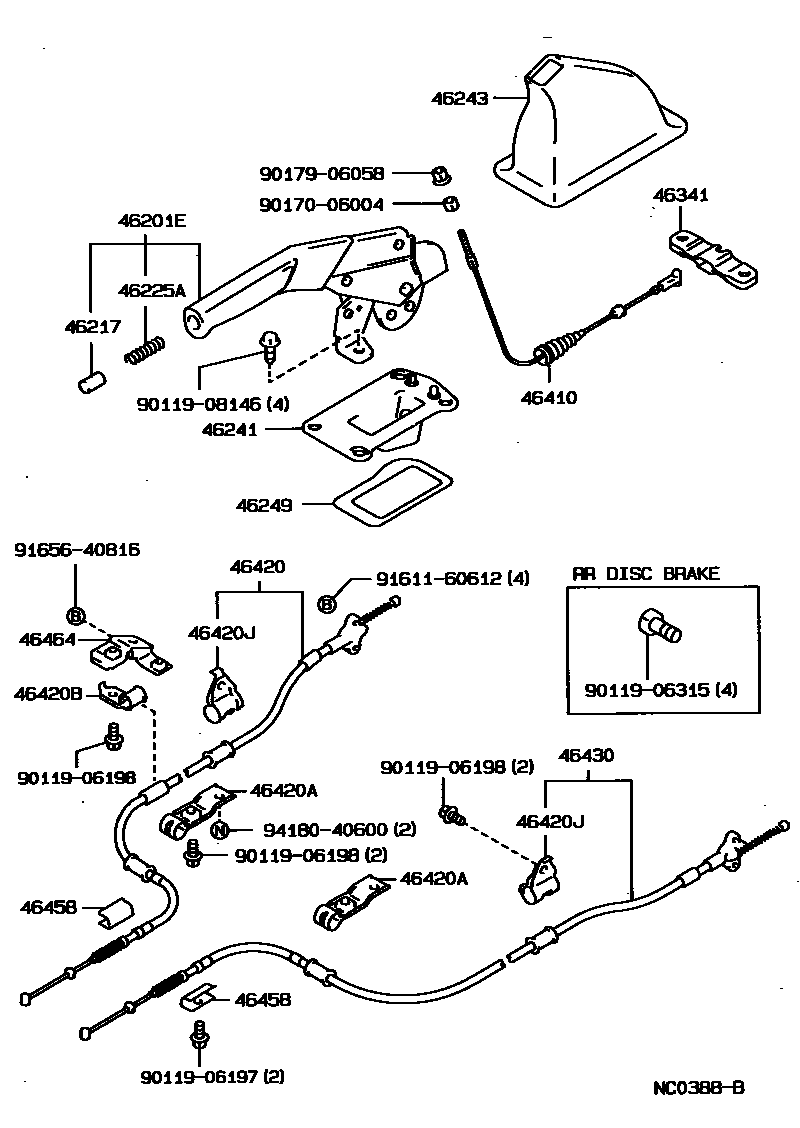

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20190-03iAT17#,CT17#,ST171198712-198801

GRAY,TRIM1#

sub46201-20191

main46201-20190-04iST171..GEN;AT17#,CT17#;ST171..SED..GCC198712-198801

BLUE,TRIM8#

sub46201-20191

main46201-20190-06iST171..GEN;AT171,CT170;ST171..SED..GCC198712-198801

SABLE,TRIM4#

sub46201-20191

main46201-20191-03iAT17#,CT17#;ST171..LB,SED198801-199211

GRAY,TRIM1#

sub46201-20191

main46201-20191-04iAT17#,CT17#;ST171..SED..GCC;ST171..(LB,SED)..GEN198801-198911

BLUE,TRIM8#

sub46201-20191

main46201-20191-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198801-199208

SABLE,TRIM4#

sub46201-20191

main46201-20191-14iAT17#,CT17#;ST171..(LB,SED)..(EXS,GL,GX,XL)198911-199211

DARK BLUE,TRIM8#

sub46201-20191

main46201-20201-03iST171..WG198810-199211

GRAY,TRIM1#

sub46201-20201

main46201-20201-04iST171..WG198810-198911

BLUE,TRIM1#,8#

sub46201-20201

main46201-20201-14iST171..WG198911-199211

DARK BLUE,TRIM8#

sub46201-20201

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iST171..GT199009-199203

sub46217-16030

main46217-12020-03iAT17#,CT17#,ST171198801-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-06iAT171,CT170;ST171..SED..GCC;ST171..(LB,SED)..GEN198801-199208

SABLE,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-24iAT17#,CT17#,ST171..EXS,GL,GX,XL198911-199110

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-J0iST171..GEN;AT17#,CT17#;ST171..SED..GCC198801-198911

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-J1iAT17#,CT17#,ST171..EXS,GL,GX,XL199110-199211

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-20020-43iAT17#,CT17#,ST171198712-198801

SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-46iST171..GEN;AT171,CT170;ST171..SED..GCC198712-198801

SABLE,TRIM4#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT17#,CT17#,ST171198712-199211

46241BOOT, PARKING BRAKE LEVER

main46241-20030iST171..WG198810-199211

main46241-20050iAT17#,CT17#;ST171..LB,SED198712-199211

46243COVER, PARKING BRAKE LEVER

main46243-20030-03iAT17#,CT17#..XL;ST171..SED..(GX,XL)198712-199211

GRAY,TRIM1#

sub46243-20030

main46243-20030-04iST171..SED..XL;AT17#,CT17#..XL198712-198911

BLUE,TRIM8#

sub46243-20030

main46243-20030-06iAT171,CT170,ST171..SED..(GX,XL)198712-199208

SABLE,TRIM4#

sub46243-20030

main46243-20030-14iAT17#,CT17#..XL;ST171..SED..(GX,XL)198911-199211

DARK BLUE,TRIM8#

sub46243-20030

46249SHIELD, PARKING BRAKE HOLE

main46249-20020iAT17#,CT17#,ST171198712-199211

46341EQUALIZER, PARKING BRAKE

main46341-20040iAT17#,CT17#,ST171198712-199211

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20300iAT17#,CT17#,ST171198809-199211

main46410-20310iAT17#,CT17#,ST171198712-198809

sub46410-20300

main46410-20400iAT17#,CT17#;ST171..LB,SED199110-199211

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20240iAT177,CT177198712-199211

main46420-29035iAT171,CT170,ST171..CBR,DSL198712-199211

main46420-29035iST171..SED..EFI199002-199208

W(13INCHES DISC WHEEL)

main46420-29045iST171..EFI199002-199208

main46420-29045iST171..SED..5F..EFI199002-199008

NEW ZEALAND SPEC

main46420-29045iST171..EFI198712-199002

W(14INCHES DISC WHEEL)

main46420-29045iST171..SED..4FC..EFI199002-199008

THAILAND SPEC OR MALAYSIA SPEC

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01016iAT177,CT177198712-199211

main90949-01331iAT171,CT170,ST171198712-198906

RH

sub90949-01605

main90949-01475iAT171,CT170,ST171198712-198909

LH

main90949-01605iAT171,CT170,ST171198906-198909

RH

main90949-01605iAT171,CT170,ST171198909-199211

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015iAT177,CT177198712-199106

main90949-01606iAT171,CT170,ST171198712-199211

main90949-01746iAT177,CT177199106-199211

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01604iAT171,CT170,ST171198712-199211

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20330iAT177,CT177198712-199211

main46430-29045iST171..SED..EFI199002-199208

W(13INCHES DISC WHEEL)

main46430-29045iAT171,CT170,ST171198712-199211

main46430-29055iST171..SED..5F..EFI199002-199008

THAILAND SPEC OR MALAYSIA SPEC

main46430-29055iST171..SED..4FC..EFI199002-199008

NEW ZEALAND SPEC

main46430-29055iST171..EFI199002-199208

main46430-29055iST171..EFI198712-199002

W(14INCHES DISC WHEEL)

46458RETAINER, CABLE

main46458-28010iAT17#,CT17#,ST171199109-199211

main46458-50010iAT17#,CT17#,ST171198712-199109

46464PLATE, CABLE CLAMP SUPPORT

main46464-32020iAT171,CT170,ST171198712-199211

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9165640816

main91656-40816

9418040600

main94180-40600
