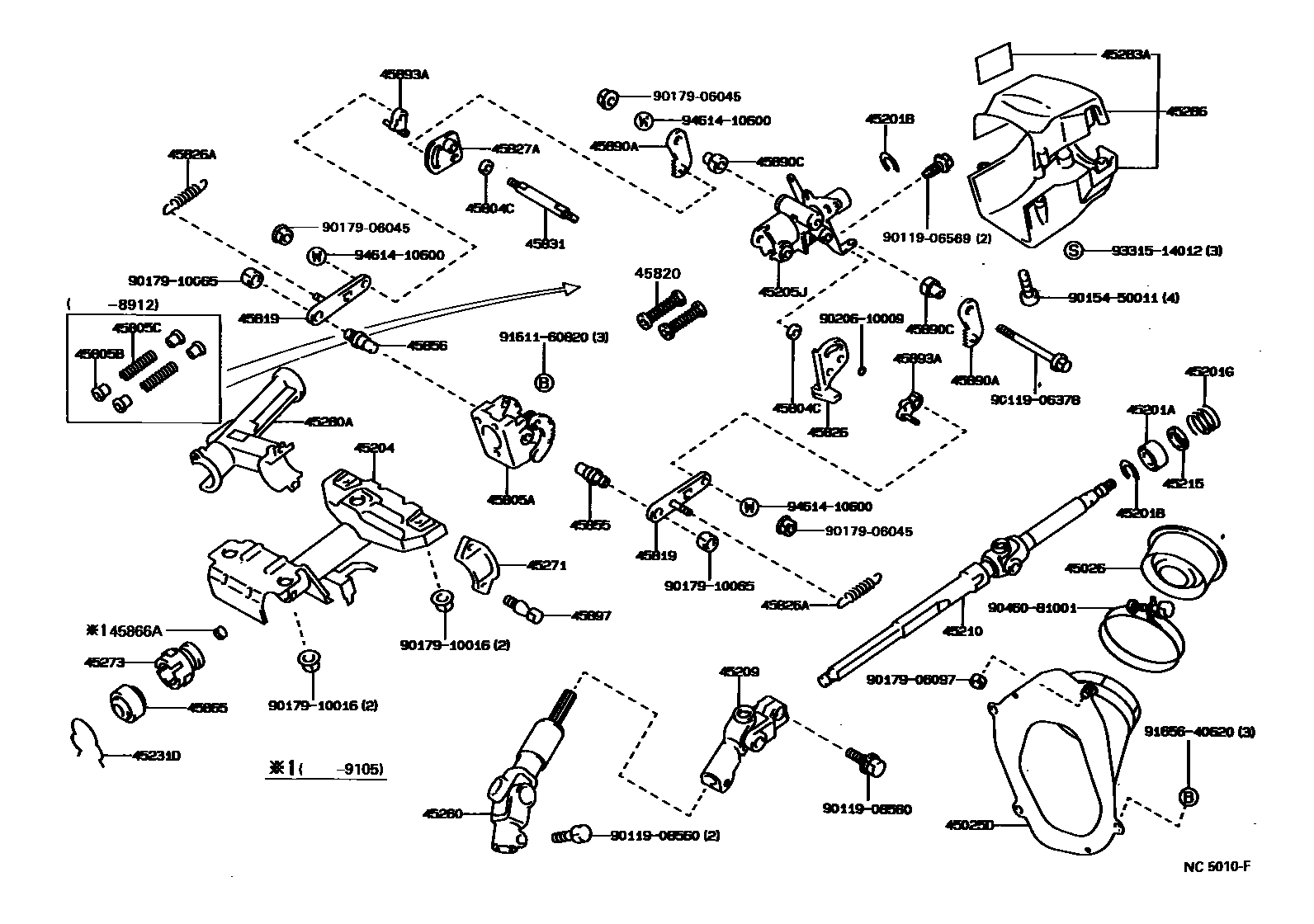

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20180iAT17#,ST171..RHD..CBR198712-199211

main45025-20190iAT17#,ST171..LHD198712-199211

main45025-20200iST171..EFI198712-199208

main45025-20200iAT17#,ST171..RHD..CBR198712-199211

W(POWER STEERING)

main45025-20210iCT17#198712-199211

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45025-20220iAT17#,CT17#,ST171198712-199211

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAT17#,CT17#,ST171198712-198809

sub90363-18005

main90363-18005iAT17#,CT17#,ST171198809-199211

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT177,CT177,ST171199208-199211

T=1.20,W(TILT STEERING)

main90520-17042iAT17#,CT17#,ST171198712-199208

T=1.20

main90520-17196iAT17#,CT17#,ST171198712-199211

T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAT17#,CT17#,ST171198712-199211

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-20120iAT17#,CT17#,ST171198712-198905

sub45204-20121

main45204-20121iAT17#,CT17#,ST171198905-199007

sub45204-20122

sub45273-22020

main45204-20122iAT17#,CT17#,ST171199007-199211

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAT17#,ST171..RHD198712-198809

sub45205-12251

main45205-12251iAT17#,ST171..RHD198809-199211

main45205-12260iAT17#,CT17#,ST171..LHD198712-198809

sub45205-12261

main45205-12261iAT17#,CT17#,ST171..LHD198809-199211

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAT17#,CT17#,ST171198712-199211

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12400iAT17#,CT17#,ST171198806-199211

W(TILT STEERING)

sub45210-12560

main45210-20260iAT17#,ST171..RHD..CBR198712-199211

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAT17#,CT17#,ST171198712-199211

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAT17#,CT17#,ST171198712-199007

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20070iAT17#,ST171..RHD..CBR198712-199211

main45260-20080iAT17#,ST171..LHD198712-199211

main45260-20090iST171..EFI198712-198911

W(POWER STEERING)

sub45260-20220

main45260-20100iAT17#,ST171..LHD198712-199211

W(POWER STEERING)

main45260-20220iST171..EFI198911-199208

main45260-20220iAT17#,ST171..RHD..CBR198911-199211

W(POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAT17#,CT17#,ST171198712-199211

main45271-12060iAT17#,CT17#,ST171198712-199211

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAT17#,CT17#,ST171198712-199211

main45273-22020iAT17#,CT17#,ST171199007-199211

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAT17#,CT17#,ST171198712-198808

sub45280-12110

main45280-12110iAT17#,CT17#,ST171198712-198808

W(*EL)

main45280-12120iAT17#,ST171..CBR198712-198808

W(TILT STEERING)

sub45280-12130

main45280-12120iCT17#,ST171..DSL,EFI198712-198808

W(POWER STEERING & TILT STEERING)

sub45280-12130

main45280-12130iAT17#,ST171..CBR198712-198808

W(TILT STEERING) OR W(TILT STEERING & *EL)

main45280-12130iCT17#,ST171..DSL,EFI198712-198808

W(TILT STEERING & *EL)

main45280-20430iAT17#,CT17#,ST171198808-199211

sub45280-20440

main45280-20440iAT17#,CT17#,ST171198808-199211

W(*EL)

main45280-20450iAT17#,ST171..CBR198808-199211

W(TILT STEERING)

sub45280-20460

main45280-20450iAT17#,ST171..CBR198808-198911

W(POWER STEERING & TILT STEERING)

sub45280-20460

main45280-20460iAT17#,ST171..CBR198808-199211

W(TILT STEERING & *EL)

main45280-20460iCT17#,ST171..DSL,EFI198808-198911

W(TILT STEERING) OR W(TILT STEERING & *EL)

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAT17#,ST171..RHD198712-199211

45286COVER, STEERING COLUMN

main45286-20931-03iAT17#,ST171..RHD..XL198712-199211

GRAY,TRIM1#

sub45286-20932

sub45286-20931

main45286-20931-04iAT17#,ST171..RHD..XL198712-198911

BLUE,TRIM8#

sub45286-20932

sub45286-20931

main45286-20931-06iAT171,ST171..RHD..SED..XL198712-199208

SABLE,TRIM4#

sub45286-20932

sub45286-20931

main45286-20931-14iAT17#,ST171..RHD..XL198911-199211

DARK BLUE,TRIM8#

sub45286-20932

sub45286-20931

main45286-20932-03iAT171,ST171..RHD..GL198712-199208

GRAY,TRIM1#

sub45286-20932

main45286-20932-04iAT171,ST171..RHD..GL198712-198911

BLUE,TRIM8#

sub45286-20932

main45286-20932-06iAT171,ST171..RHD..GL198712-199208

SABLE,TRIM4#

sub45286-20932

main45286-20932-14iAT171,ST171..RHD..GL198911-199208

DARK BLUE,TRIM8#

sub45286-20932

main45286-20933-03iAT17#,ST171..RHD..XL198712-199211

W(TILT STEERING),GRAY,TRIM1#

sub45286-20934

sub45286-20933

main45286-20933-04iAT17#,ST171..RHD..XL198712-198911

W(TILT STEERING),BLUE,TRIM8#

sub45286-20934

sub45286-20933

main45286-20933-06iAT171,ST171..RHD..SED..XL198712-199208

W(TILT STEERING),SABLE,TRIM4#

sub45286-20934

sub45286-20933

main45286-20933-14iAT17#,ST171..RHD..XL198911-199211

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-20934

sub45286-20933

main45286-20934-03iAT171,ST171..RHD..GL198712-199208

W(TILT STEERING),GRAY,TRIM1#

sub45286-20934

main45286-20934-04iAT171,ST171..RHD..GL198712-198911

W(TILT STEERING),BLUE,TRIM8#

sub45286-20934

main45286-20934-06iAT171,ST171..RHD..GL198712-199208

W(TILT STEERING),SABLE,TRIM4#

sub45286-20934

main45286-20934-14iAT171,ST171..RHD..GL198911-199208

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-20934

main45286-20935-03iAT17#,CT17#,ST171..LHD..(GX,XL)198712-199211

GRAY,TRIM1#

sub45286-20936

sub45286-20935

main45286-20935-04iAT17#,CT17#,ST171..LHD..XL198712-198911

BLUE,TRIM8#

sub45286-20936

sub45286-20935

main45286-20935-06iAT171,CT170,ST171..LHD..(GX,XL)198712-199203

SABLE,TRIM4#

sub45286-20936

sub45286-20935

main45286-20935-14iAT17#,CT17#,ST171..LHD..(GX,XL)198911-199211

DARK BLUE,TRIM8#

sub45286-20936

sub45286-20935

main45286-20936-03iAT171,ST171..LHD..(EXS,GL,GT)198712-199208

GRAY,TRIM1#

sub45286-20936

main45286-20936-04iAT171,ST171..LHD..SED..GL198712-198911

BLUE,TRIM8#

sub45286-20936

main45286-20936-06iAT171,ST171..LHD..SED..(EXS,GL)198712-199208

SABLE,TRIM4#

sub45286-20936

main45286-20936-14iAT171,ST171..LHD..(EXS,GL)198911-199208

DARK BLUE,TRIM8#

sub45286-20936

main45286-20937-03iAT17#,CT17#,ST171..LHD..(GX,XL)198712-199211

W(TILT STEERING),GRAY,TRIM1#

sub45286-20938

sub45286-20937

main45286-20937-04iAT17#,CT17#,ST171..LHD..XL198712-198911

W(TILT STEERING),BLUE,TRIM8#

sub45286-20938

sub45286-20937

main45286-20937-06iAT171,CT170,ST171..LHD..(GX,XL)198712-199203

W(TILT STEERING),SABLE,TRIM4#

sub45286-20938

sub45286-20937

main45286-20937-14iAT17#,CT17#,ST171..LHD..(GX,XL)198911-199211

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-20938

sub45286-20937

main45286-20938-03iAT171,ST171..LHD..(EXS,GL,GT)198712-199208

W(TILT STEERING),GRAY,TRIM1#

sub45286-20938

main45286-20938-04iAT171,ST171..LHD..SED..GL198712-198911

W(TILT STEERING),BLUE,TRIM8#

sub45286-20938

main45286-20938-06iAT171,ST171..LHD..SED..(EXS,GL)198712-199208

W(TILT STEERING),SABLE,TRIM4#

sub45286-20938

main45286-20938-14iAT171,ST171..LHD..(EXS,GL)198911-199208

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-20938

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iAT17#,CT17#,ST171198712-199211

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAT17#,CT17#,ST171198712-199211

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iAT17#,CT17#,ST171198712-198912

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iAT17#,CT17#,ST171198712-198912

sub45820-12010

45819RETAINER, TILT LEVER

main45819-12010iAT17#,CT17#,ST171198712-199105

sub45819-12020

main45819-12020iAT17#,CT17#,ST171199105-199211

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iAT17#,CT17#,ST171198912-199211

45826LEVER, STEERING TILT

main45826-12020iAT17#,CT17#,ST171198712-198905

main45826-12021iAT17#,CT17#,ST171198905-199211

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iAT17#,CT17#,ST171198712-199211

45827ALEVER, STEERING TILT SUB

main45827-12010iAT17#,CT17#,ST171198712-198905

main45827-12011iAT17#,CT17#,ST171198905-199105

main45827-12020iAT17#,CT17#,ST171199105-199211

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAT17#,CT17#,ST171198712-199211

45855BOLT, TILT STEERING, NO.1

main45855-12010iAT17#,CT17#,ST171198712-199105

OD=9.989-9.998

main45855-12020iAT17#,CT17#,ST171198712-199105

OD=9.998-10.007

main45855-12030iAT17#,CT17#,ST171199105-199211

OD=9.989-9.998

main45855-12040iAT17#,CT17#,ST171199105-199211

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAT17#,CT17#,ST171198712-199105

OD=9.989-9.998

main45856-12020iAT17#,CT17#,ST171198712-199105

OD=9.998-10.007

main45856-12030iAT17#,CT17#,ST171199105-199211

OD=9.989-9.998

main45856-12040iAT17#,CT17#,ST171199105-199211

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAT17#,CT17#,ST171198712-199105

sub45865-12060

main45865-12060iAT17#,CT17#,ST171199105-199211

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAT17#,CT17#,ST171198712-199105

45890APAWL ASSY, TILT STEERING

main45890-12020iAT17#,CT17#,ST171198712-198905

LH

sub45890-12H00

main45890-12021iAT17#,CT17#,ST171198905-199211

LH

main45890-12030iAT17#,CT17#,ST171198712-198905

RH

sub45890-12H00

main45890-12031iAT17#,CT17#,ST171198905-199211

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAT17#,CT17#,ST171198712-199211

MARK 0

main90389-07005iAT17#,CT17#,ST171198712-199211

MARK 2

main90389-07006iAT17#,CT17#,ST171198712-199211

MARK 3

main90389-07007iAT17#,CT17#,ST171198712-199211

MARK 4

main90389-07008iAT17#,CT17#,ST171198712-199211

MARK A

main90389-07009iAT17#,CT17#,ST171198712-199211

MARK 6

main90389-07010iAT17#,CT17#,ST171198712-199211

MARK 7

main90389-07011iAT17#,CT17#,ST171198712-199211

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAT17#,CT17#,ST171198712-198905

LH

main45893-12021iAT17#,CT17#,ST171198905-199211

MARK A,LH

main45893-12070iAT17#,CT17#,ST171198712-198905

RH

main45893-12071iAT17#,CT17#,ST171198905-199211

MARK F OR 11,RH

main45893-12120iAT17#,CT17#,ST171198905-199211

MARK B,LH

main45893-12130iAT17#,CT17#,ST171198905-199211

MARK C,LH

main45893-12140iAT17#,CT17#,ST171198905-199211

MARK D,LH

main45893-12150iAT17#,CT17#,ST171198905-199211

MARK E,LH

main45893-12160iAT17#,CT17#,ST171198905-199211

MARK G OR 12,RH

main45893-12170iAT17#,CT17#,ST171198905-199211

MARK H OR 13,RH

main45893-12180iAT17#,CT17#,ST171198905-199211

MARK I OR 14,RH

main45893-12190iAT17#,CT17#,ST171198905-199211

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020iAT17#,CT17#,ST171198712-199211

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9015450011

main90154-50011

9017906045

main90179-06045

9017906097

main90179-06097

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9046081001

main90460-81001

9161160820

main91611-60820

9165640620

main91656-40620

9331514012

main93315-14012

9461410600

main94614-10600

49 parts on this diagram · 2 diagrams in section
