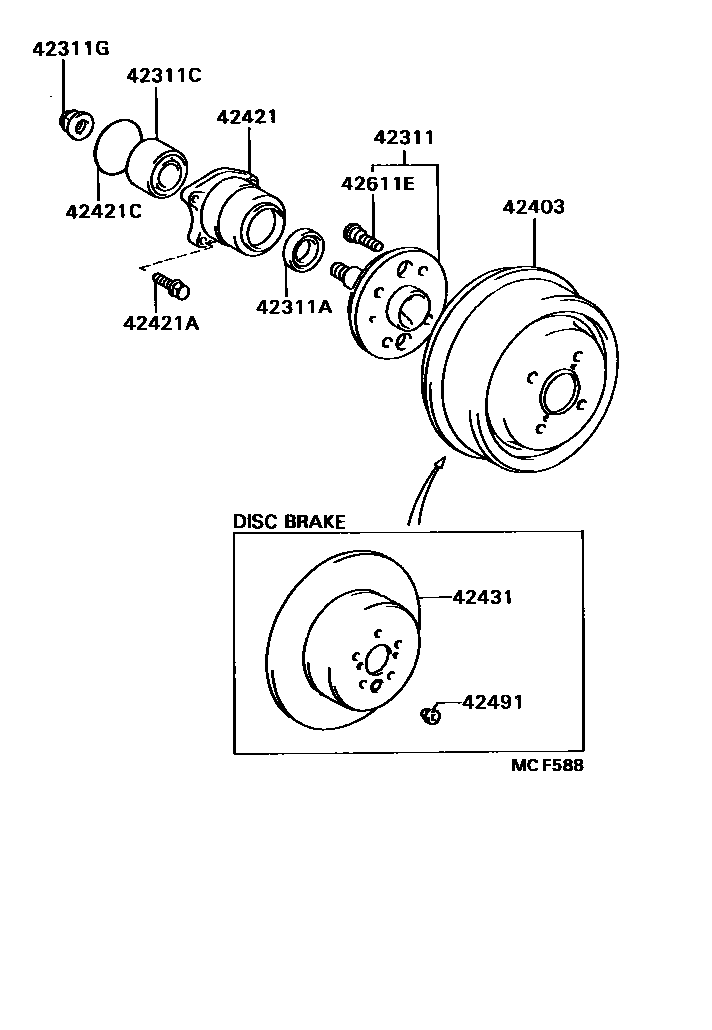

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42301-20080iST171..SED..EFI199006-199208

W(13INCHES DISC WHEEL)

sub42410-20130

main42301-20080iST171198712-199211

sub42410-20130

main42301-32031iST171..LHD..GL198712-199208

W(14INCHES DISC WHEEL)

sub42410-20140

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iST171..SED..EFI;AT171,CT170,ST171..CBR,DSL198712-199211

main90311-48001iAT177,CT177198712-199211

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT171,CT170,ST171..CBR,DSL198712-199211

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003iST171..RHD..GL..CBR198712-198809

main90179-20017iAT171..RHD..5F..XL198809-199211

42403DRUM SUB-ASSY, REAR BRAKE

main42403-20040iAT177,CT177198712-199211

main42431-20080iST171..RHD..GL..CBR199002-199208

NEWZEALAND SPEC

main42431-20080iST171..SED..EFI;AT171,CT170,ST171..CBR,DSL198712-199211

main42431-32020iST171..(EXS,GL,GT)..CBR198712-199208

W(14INCHES DISC WHEEL)

42421CASE, REAR AXLE BEARING

main42421-20020iAT171..RHD..5F..XL198712-199211

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iAT171..RHD..5F..GL198712-199211

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iAT171,CT170,ST171198712-199211

sub90301-63006

42431DISC, REAR

main42431-20090iST171..EFI198712-199208

sub42431-20160

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST171..EFI198712-199208

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iST171..RHD..SED..GL..CBR198808-199211

main90942-02047iAT17#,CT17#,ST171198712-198911

W(14INCHES DISC WHEEL)

11 parts on this diagram · 2 diagrams in section
