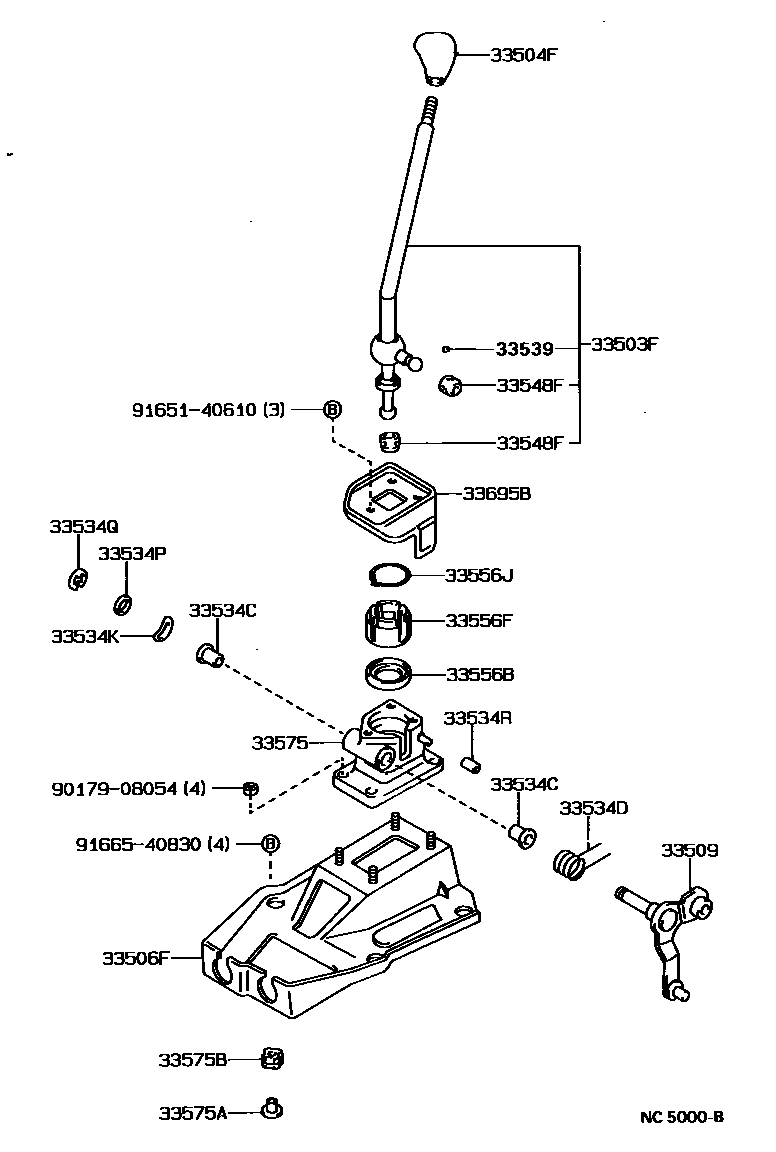

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-20390iAT17#,ST171..RHD..MTM198712-198911

main33503-20400iAT17#,CT17#,ST171..LHD..MTM198712-198911

main33503-20450iAT17#,ST171..RHD..ATM198712-199211

main33503-20460iAT17#,ST171..LHD..ATM198712-199211

main33503-20480iAT17#,ST171..RHD..MTM198911-199211

main33503-20490iAT17#,CT17#,ST171..LHD..MTM198911-199211

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20080-03iAT171,ST171..5F..GL198911-199208

LEATHER,GRAY,TRIM1#

main33504-20080-04iST171..5F..EFI198712-198911

LEATHER,BLUE,TRIM8#

main33504-20080-06iST171..5F..EFI198712-198911

LEATHER,SABLE,TRIM4#

main33504-20080-14iAT171,ST171..5F..GL198911-199208

LEATHER,DARK BLUE,TRIM8#

main33504-20090-03iAT171..4F198712-199208

GRAY,TRIM1#

main33504-20090-04iAT171..4F198712-198911

BLUE,TRIM8#

main33504-20090-06iAT171..4F198712-199208

SABLE,TRIM4#

main33504-20090-14iAT171..4F198911-199208

DARK BLUE,TRIM8#

main33504-20100-03iAT17#,CT17#,ST171..5F198712-199211

GRAY,TRIM1#

sub33504-24010

main33504-20100-04iST171..5F..GEN;AT17#,CT17#..5F;ST171..SED..5F..GCC198712-198911

BLUE,TRIM8#

sub33504-24010

main33504-20100-06iAT171,CT170..5F;ST171..SED..5F..GCC;ST171..(LB,SED)..5F..GEN198712-199208

SABLE,TRIM4#

sub33504-24010

main33504-20100-14iAT17#,CT17#,ST171..5F..(EXS,GL,GX,XL)198911-199211

DARK BLUE,TRIM8#

sub33504-24010

main33542-20080-03iAT17#,ST171..RHD..ATM198712-199211

GRAY,TRIM1#

sub33542-20081

main33542-20080-04iAT17#,ST171..RHD..ATM198712-198911

BLUE,TRIM8#

sub33542-20081

main33542-20080-06iAT171,ST171..RHD..ATM198712-199208

SABLE,TRIM4#

sub33542-20081

main33542-20080-34iAT17#,ST171..4FC..GEN198911-199211

DARK BLUE,TRIM8#

sub33542-20081

main33542-20090-03iAT17#,ST171..LHD..ATM198712-199009

GRAY,TRIM1#

main33542-20090-04iAT17#,ST171..LHD..(SED,WG)..ATM198712-198911

BLUE,TRIM8#

main33542-20090-06iAT171,ST171..LHD..SED..ATM198712-199203

SABLE,TRIM4#

main33542-20090-24iAT17#,ST171..LHD..(SED,WG)..ATM198911-199211

DARK BLUE,TRIM8#

main33542-20090-B1iAT17#,ST171..LHD..ATM199009-199203

SHADOW GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20220iAT17#,CT17#,ST171..MTM198712-199211

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060iAT17#,CT17#,ST171..MTM198712-198908

main33509-12080iAT17#,CT17#,ST171..MTM198908-199211

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034×2iAT17#,CT17#,ST171..MTM198712-199211

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iAT17#,CT17#,ST171..MTM198712-199211

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iAT17#,CT17#,ST171..MTM198712-199211

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iAT17#,CT17#,ST171..MTM198712-199211

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iAT17#,CT17#,ST171..MTM198712-199211

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iAT17#,CT17#,ST171..MTM198712-199211

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010×2iAT17#,CT17#,ST171..MTM198911-199211

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021×2iAT17#,CT17#,ST171..MTM198712-198911

main33548-12040×2iAT17#,CT17#,ST171..MTM198911-199211

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iAT17#,CT17#,ST171..MTM198712-199211

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iAT17#,CT17#,ST171..MTM198712-199211

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-34002iAT17#,CT17#,ST171..MTM198712-199211

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-16040iAT17#,CT17#,ST171..MTM198712-198908

main33575-20390iAT17#,CT17#,ST171..MTM198908-199211

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031×4iAT17#,CT17#,ST171..MTM198712-199211

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10020×4iAT17#,CT17#,ST171..MTM198712-199211

33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)

main33695-20010iAT17#,CT17#,ST171..MTM198712-199211

9017908054

main90179-08054

9165140610

main91651-40610

9166540830

main91665-40830

22 parts on this diagram · 6 diagrams in section
