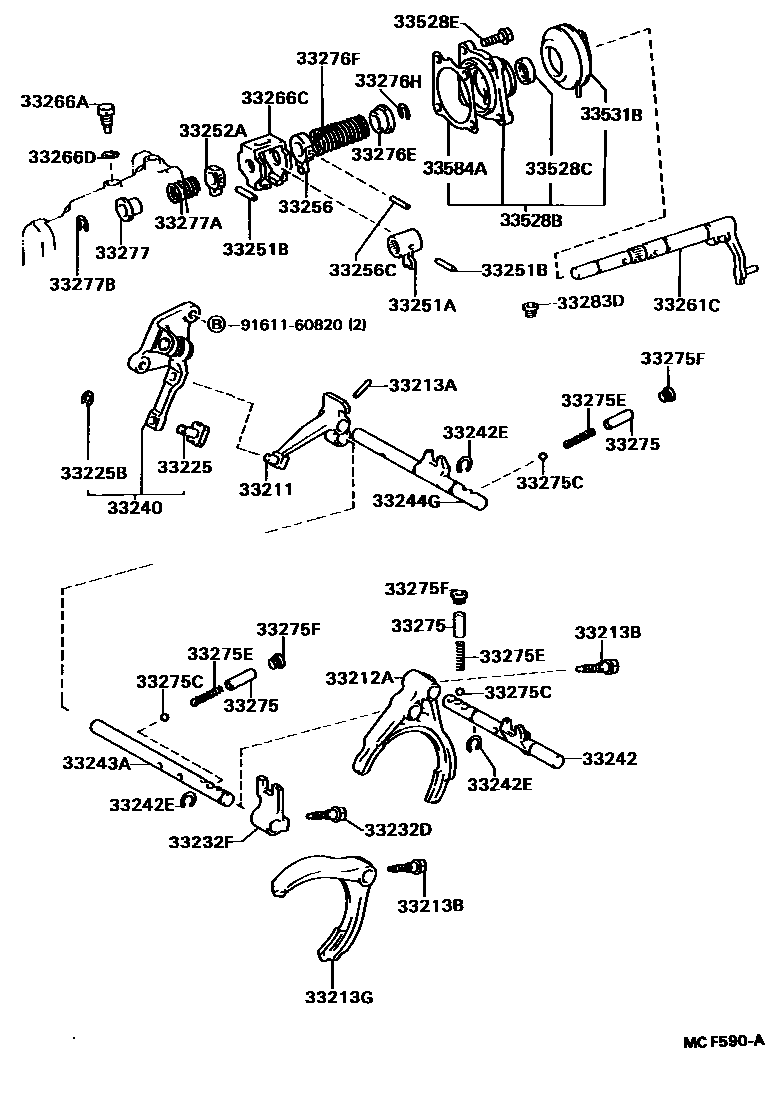

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212AFORK, GEAR SHIFT, NO.1
sub33210-32H00
sub33210-32021
sub33210-32022
sub33210-32023
sub33212-10012
sub33212-10013
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
NO.3 SHIFT FORK
SINGAPORE SPEC
NO.1 & NO.2 FORK
33213GFORK, GEAR SHIFT, NO.2
sub33213-10022
sub33220-32020
sub33220-32021
sub33220-32022
sub33220-32023
sub33220-32024
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232DBOLT (FOR SHIFT HEAD SET)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
SINGAPORE SPEC
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
main91611-60820
40 parts on this diagram · 4 diagrams in section
