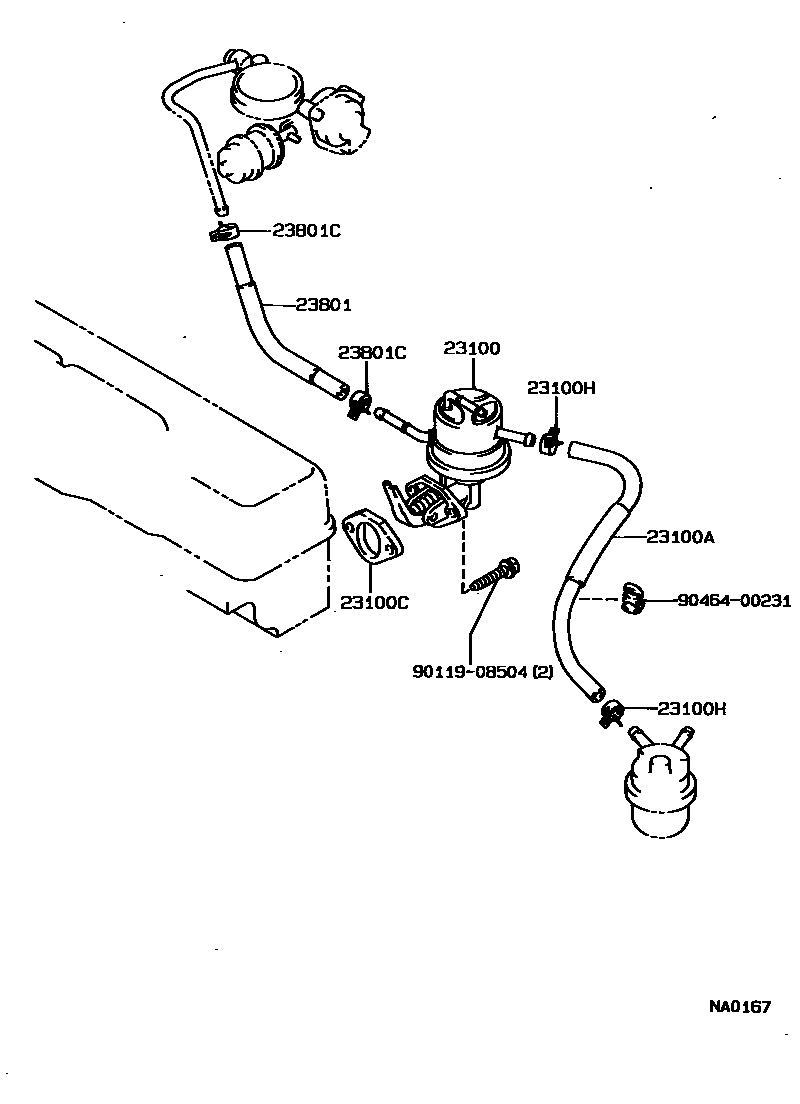

FUEL PUMP & PIPE

0001 1 0003 1 0004 1

23100PUMP ASSY, FUEL

main23100-15080i4AF..AT17#198712-198801

main23100-15081i4AF..AT17#198801-199211

sub23100-15082

23100AHOSE, FUEL

main23271-15230i4AF..AT17#198712-199211

main90447-12075i3SF..ST171198712-199211

23100CINSULATOR, FUEL PUMP

main23915-16010i4AF..AT17#198912-199211

main23915-63020i4AF..AT17#198911-198912

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i4AF..AT17#198712-199211

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-74010i3SF..ST171198712-199211

main95333-06020i4AF..AT17#198712-199211

L=200

sub95337-06020

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i4AF..AT17#198712-199211

sub96132-51100

9011908504

main90119-08504

9046400231

main90464-00231

8 parts on this diagram · 3 diagrams in section
