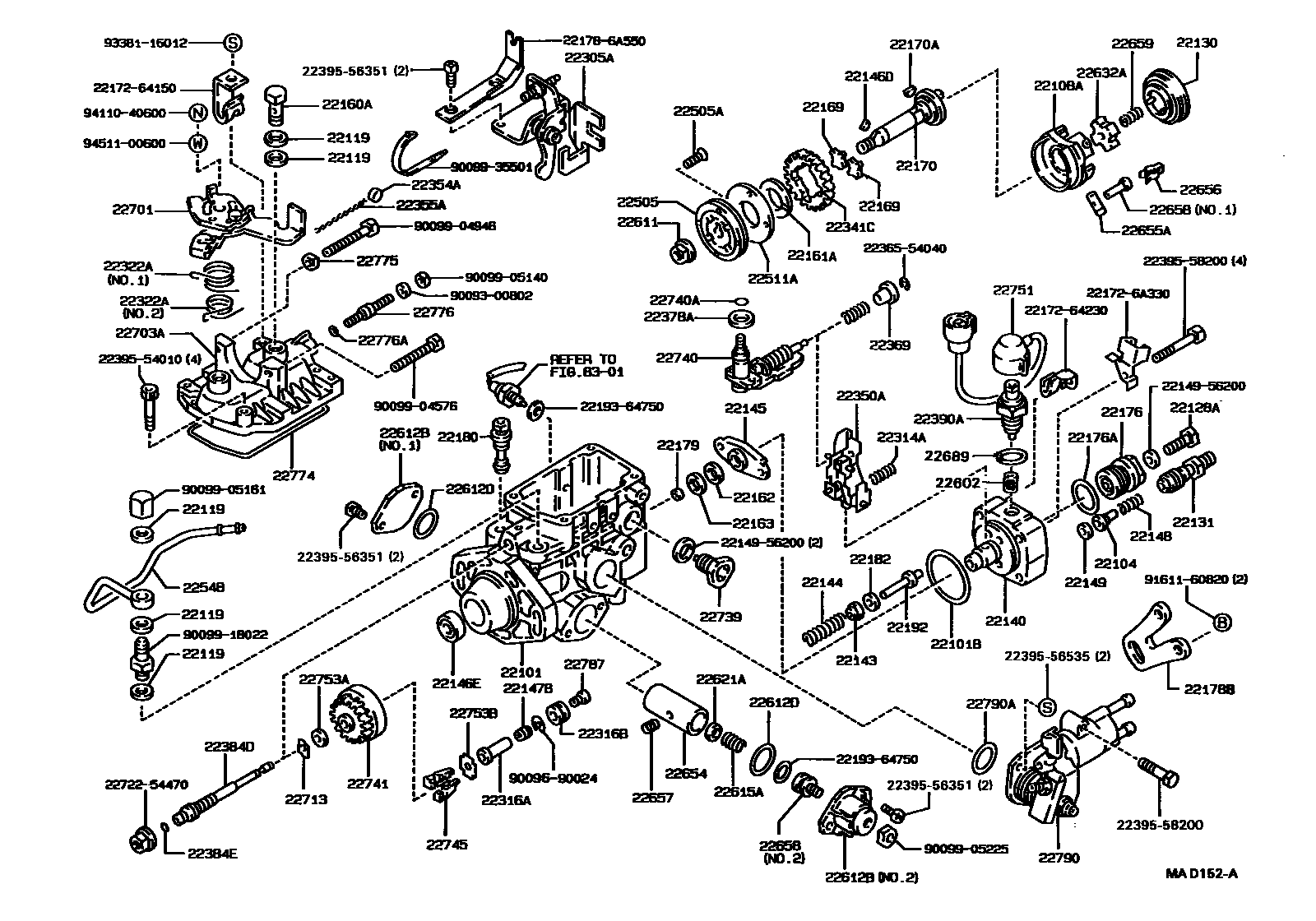

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(HIGH ALTITUDE COMPENSATOR)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160ASCREW SUB-ASSY, OVER FLOW, NO.2
22161AWASHER, DRIVE SHAFT
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22305AIDLE-UP SUB-ASSY
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
MARK 23,W(HIGH ALTITUDE COMPENSATOR)
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
W(HIGH ALTITUDE COMPENSATOR),NO.1
NO.2
NO.1
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22369SEAT, GOVERNOR SPRING
sub22369-6A250
22378WASHER, DRAIN SCREW
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
W(HIGH ALTITUDE COMPENSATOR)
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22390-6A511
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22548NIPPLE, SWIVEL
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22611NUT, TIMER ROUND
22612BCOVER, TIMER
NO.1
NO.2
NO.1
22612DRING, O(FOR TIMER COVER)
sub90099-14105
22615ASPRING, TIMER OUTER
K=3.30,L=37.1
22621AWASHER, TIMER ADJUSTING
T=0.5
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 149
MARK 150
22703ACOVER SUB-ASSY, GOVERNOR
W(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR)
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22739BOLT, GOVERNOR LINK SUPPORT
W(HIGH ALTITUDE COMPENSATOR),NO.1
W(HIGH ALTITUDE COMPENSATOR),NO.2
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W(HIGH ALTITUDE COMPENSATOR)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
sub22753-54020
22774GASKET, GOVERNOR COVER
22775NUT, LOCK(FOR INJECTION PUMP)
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.0
L=3.1
L=3.2
L=2.2
L=2.3
L=2.4
L=2.5
L=2.6
L=2.7
L=2.8
L=2.9
22790COVER SUB-ASSY, TIMER
22790ARING, O(FOR TIMER COVER)
sub90099-14105
8301
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
221786A550NIPPLE, AIR BLEEDER
main22178-6A550
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556535BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56535
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009300802
main90093-00802
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009905225
main90099-05225
9009918022
main90099-18022
9009935501
main90099-35501
9161160820
main91611-60820
9338116012
main93381-16012
9411040600
main94110-40600
9451100600
main94511-00600
