CARBURETOR

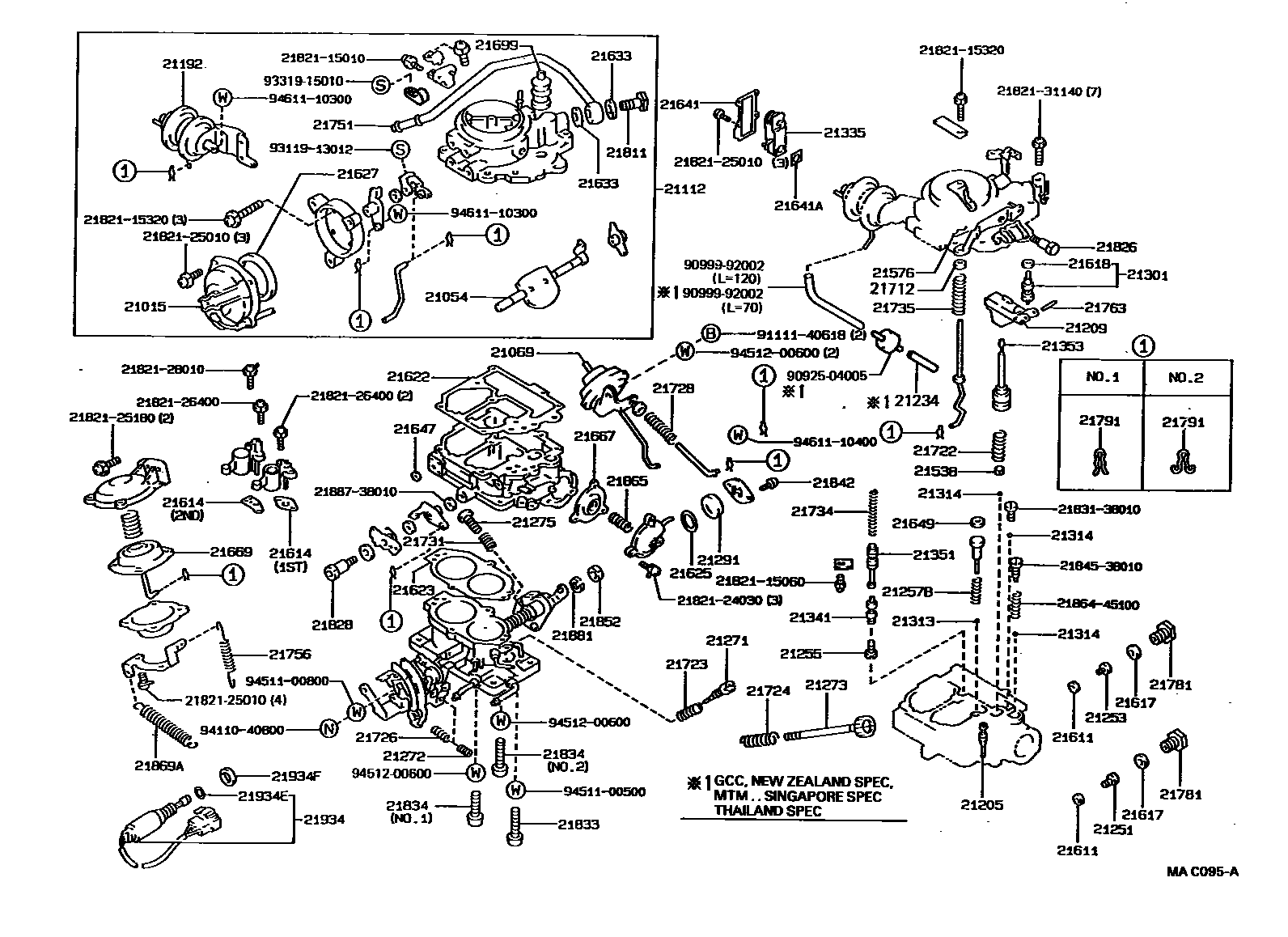

Parts diagram
21015HOUSING SUB-ASSY, COIL
main21015-16140i198712-199211
sub21015-15050
main21015-74090i198712-199211
21054SHAFT, CHOKE
main21054-15050i198712-199211
21069DASH POT SUB-ASSY
main21069-15040i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main21069-15040i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21069-15040i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21069-15040i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
main21069-15040i198712-198802
SINGAPORE SPEC
main21069-15040i198712-199203
21112HORN, AIR
main21112-16300i198712-199211
main21112-16360i198712-199203
main21112-16460i198712-198912
sub21112-16360
main21112-74090i198712-199105
sub21112-74091
main21112-74091i199105-199211
21192BREAKER
main21192-14130i198712-199211
main21192-74090i198712-199211
21205JET SUB-ASSY, SLOW
main21205-14010i198712-199211
main21205-74090i198712-199211
21209FLOAT SUB-ASSY
main21209-15020i198712-199211
main21209-63090i198712-199211
21234PIPE OR HOSE
main21249-13090i198911-199111
SINGAPORE SPEC & W(HOT AIR INTAKE)
sub90999-92002
main21249-13090i199111-199203
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
sub90999-92002
main21249-13090i199111-199203
THAILAND SPEC OR NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
sub90999-92002
main21249-13090i198908-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
sub90999-92002
main21249-13090i199203-199208
THAILAND SPEC
sub90999-92002
main90999-92002i199203-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
main90999-92002i199203-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
21251JET, 1ST MAIN
main90999-41101i198712-198802
SINGAPORE SPEC
main90999-41101i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main90999-41101i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
main90999-41101i198712-199203
main90999-41101i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-41101i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-41104i198712-199211
main90999-41114i198712-199211
21253JET, 2ND MAIN
main21253-35410i198712-199211
main90999-42156i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-42156i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-42156i198911-199111
SINGAPORE SPEC & W(HOT AIR INTAKE)
main90999-42156i198908-199203
main90999-42156i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main90999-42159i198712-199211
main90999-42162i198712-198802
SINGAPORE SPEC
main90999-42162i198712-198908
main90999-42162i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
21255JET, POWER
main21255-16300i198803-199211
main90999-43055i198911-199111
SINGAPORE SPEC & W(HOT AIR INTAKE)
main90999-43055i198908-199203
main90999-43055i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-43055i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main90999-43055i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
21257BSPRING(FOR PUMP JET)
main21864-26020i198712-199211
21271SCREW, IDLE ADJUSTING
main21271-26371i198712-199211
sub21271-31590
main21271-26440i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21271-26440i198712-198802
SINGAPORE SPEC
main21271-26440i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main21271-26440i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
main21271-26440i198712-199203
main21271-26440i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21271-37080i198712-199211
21272SCREW, 1ST IDLE ADJUSTING
main21272-71010i198712-199211
main21828-25180i198712-199211
21273SCREW, THROTTLE ADJUSTING
main21273-15500i198712-199211
main21273-51010i198712-199211
NO.1
main21273-74090i198712-199211
NO.2
21275SCREW, ADJUSTING
main21842-28090i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21842-28090i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21842-28090i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
main21842-28090i198712-198802
SINGAPORE SPEC
main21842-28090i198908-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main21842-28090i198712-199203
21291GLASS, LEVEL GAGE
main21291-34320i198712-199211
21301VALVE SUB-ASSY, NEEDLE
main21301-15160i198712-199211
main21301-63050i198712-199211
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
main21313-11020i198712-199211
main21313-11020i199009-199208
PHILIPPINE SPEC
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
main21314-11020i198712-199211
main21314-11020i199009-199208
PHILIPPINE SPEC
21335VALVE, THERMOSTATIC
main21335-37040i198712-199211
21341VALVE, POWER
main21304-30010i198712-199211
21351PISTON, POWER
main21351-33080i198712-199211
main21351-37040i198712-199211
21353PLUNGER, PUMP
main21353-33010i198712-199211
sub21353-16510
21538RETAINER, BALL CHECK
main21538-31010i198712-199211
21576CLIP, PUMP STRAINER
main21576-27010i198712-199208
main21576-63050i198712-198911
main21576-74070i198911-199211
21611GASKET, MAIN JET
main21585-25010i199009-199208
PHILIPPINE SPEC
main21611-22010i198712-199211
21614GASKET, VENTURI
main21614-16280i198912-199211
1ST
main21614-33010i198712-198912
1ST
sub21614-16280
main21614-33080i198712-198912
2ND
sub21615-16280
main21615-16280i198912-199211
2ND
21617GASKET, MAIN PASSAGE PLUG
main21617-30010i198712-199211
21618GASKET, NEEDLE VALVE SEAT
main21618-14010i198712-199211
21622GASKET, AIR HORN
main21622-15330i198712-198912
sub21622-16440
main21622-16090i198712-198912
sub21622-16280
main21622-16280i199111-199208
SINGAPORE SPEC & W(AIR HOT INTAKE)
main21622-16280i198912-199211
main21622-16280i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main21622-16440i198912-199203
main21622-16440i199111-199208
THAILAND SPEC
main21622-63010i198712-198810
sub21622-35540
main21622-74090i198810-199105
sub21622-74091
main21622-74091i199105-199211
21623GASKET, BODY FLANGE
main21623-16280i198912-199211
main21623-25180i198712-198912
sub21623-16280
21625GASKET, LEVEL GAGE
main21655-60200i198712-199211
21627GASKET, COIL HOUSING
main21627-28090i198712-199211
sub21627-28150
main21627-28150i198712-199211
21633GASKET, UNION NIPPLE
main21633-24030i198712-199211
21641GASKET(FOR THERMOSTATIC VALVE COVER)
main21641-23012i198712-199211
main21641-35010i198712-199105
sub21641-35510
main21641-35510i199105-199211
21641AGASKET(FOR THERMOSTATIC VALVE COVER NO.2)
main21641-24030i198712-199211
21647GASKET, DIAPHRAGM HOUSING CAP
main21649-33080i198712-199211
main21649-38010i198712-199211
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
main21641-33011i198712-199211
21667DIAPHRAGM
main21667-72080i198712-198912
sub21675-35510
main21667-72080i198712-199105
NO.1
sub21675-35510
main21667-74030i198712-199105
NO.2
sub21667-74031
main21667-74031i199105-199211
NO.2
main21667-74090i198712-198911
NO.3
sub21667-74091
main21667-74091i198804-199211
NO.3
main21675-35510i198912-199211
main21675-35510i199105-199211
NO.1
21669DIAPHRAGM
main21669-15320i198712-199211
main21669-35510i199105-199211
main21669-37040i198712-199105
sub21669-35510
21699BOOT(FOR PUMP PLUNGER)
main21699-28150i198712-199211
main21699-37040i198712-199211
21712BUSH, SLIDING ROD
main21712-38010i198911-199211
sub21712-61020
21722SPRING, PUMP DAMPING
main21722-22010i198712-199211
21723SPRING, IDLE ADJUSTING
main21723-21030i198908-198911
W(HOT AIR INTAKE)
main21723-21030i199111-199208
THAILAND SPEC
main21723-21030i198712-198802
SINGAPORE SPEC OR W(HOT AIR INTAKE)
main21723-21030i198802-199211
main21723-21030i198808-198911
MIDDLE EAST SPEC OR W(HOT AIR INTAKE)
main21723-37040i198712-199211
NO.1
main21723-38330i198712-199211
NO.2
21724SPRING, THROTTLE ADJUSTING
main21723-21030i198712-199211
21726SPRING, 1ST IDLE ADJUSTING
main21723-21030i198712-199211
main21726-38310i198712-199211
21728SPRING, THROTTLE VALVE RETURN
main21756-25181i198712-199211
21731SPRING, DASH POT OR POSITIONER ADJUSTING
main21723-21030i198712-199211
21734SPRING, POWER PISTON
main21734-18010i198712-199211
main21734-33080i198712-199211
main21734-33080i198712-198802
SINGAPORE SPEC
main21734-33080i198911-199208
SINGAPORE SPEC & W(HOT AIR INTAKE)
21735SPRING, PUMP ARM
main21735-15270i198712-199211
21751UNION, NIPPLE
main21894-15081i198712-199211
main21894-74110i199009-199208
PHILIPPINE SPEC
21756SPRING, BACK(FOR THROTTLE SHAFT)
main21756-15080i198712-199211
21763PIN, FLOAT LEVER
main21763-26350i198712-199211
main21763-34320i198712-199211
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
main21781-15230i198712-199211
main21781-15230i199009-199208
PHILIPPINE SPEC
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010i198712-199203
NO.2
main21791-13010i199111-199208
THAILAND SPEC,NO.2
main21791-13010i198712-199208
TYPE 1
main21791-13010i198911-199203
SINGAPORE SPEC & W(HOT AIR INTAKE),NO.2
main21791-13010i198911-199203
W(HOT AIR INTAKE),NO.2
main21791-13010i198712-198802
SINGAPORE SPEC,NO.2
main21791-13011i199203-199208
SINGAPORE SPEC & W(HOT AIR INTAKE),NO.1
sub21791-13010
main21791-13011i199203-199208
NO.1
sub21791-13010
main21791-13011i199203-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE),NO.1
sub21791-13010
main21791-13011i199203-199208
W(HOT AIR INTAKE),NO.2
sub21791-13010
main21791-13011i199203-199208
SINGAPORE SPEC & W(HOT AIR INTAKE),NO.2
sub21791-13010
main21791-13011i199208-199211
TYPE 1
sub21791-13010
main21791-60010i198712-199203
NO.1
sub21791-13011
main21791-60010i198712-199208
TYPE 2
sub21791-13011
main21791-60010i198908-198911
NEW ZEALAND SPEC & W(HOT AIR INTAKE),NO.1
sub21791-13011
main21791-60010i199203-199208
THAILAND SPEC,NO.1
sub21791-13011
main21791-60010i198712-198802
SINGAPORE SPEC,NO.1
sub21791-13011
21811BOLT, UNION NIPPLE
main21811-11060i198712-199211
21826SCREW, PUMP ARM SET
main21826-31012i198712-199211
21828SCREW, 1ST IDLE SET
main21845-15230i198712-199105
sub90079-12002
main90079-12002i199105-199211
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
main21833-33010i198712-199211
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
main21834-31140i198712-199211
NO.2
main21844-26400i198712-199211
NO.1
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010i198712-199211
21852NUT, THROTTLE LEVER SET
main21852-30010i198712-199211
21865SPRING
main21865-15230i198712-199211
21869ASPRING(FOR THROTTLE)
main21869-16120i198911-199111
NEW ZEALAND SPEC & W(HOT AIR INTAKE)
main21869-16120i199111-199208
SINGAPORE SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21869-16120i199111-199208
NEW ZEALAND SPEC & W(HOT AIR INTAKE);THAILAND SPEC
main21869-16120i198712-199203
main21869-16120i198911-199111
SINGAPORE SPEC & W(HOT AIR INTAKE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
main21881-60010i198712-199211
21934SOLENOID, THROTTLE VALVE
main21062-13310i198712-198803
sub21062-14090
main21062-16300i198803-198808
sub21062-16301
main21062-16301i198808-199211
main21062-74080i198712-198809
sub21062-74081
main21062-74081i198809-199211
sub21062-63140
main21062-74090i198712-198809
sub21062-74091
main21062-74091i198809-198911
21934ERING, O(FOR SOLENOID VALVE)
main21655-44101i198712-199211
21934FGASKET
main21649-38010i198712-199211
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2183138010SCREW, POWER PISTON STOP
main21831-38010
2184538010SCREW(FOR LEVER SET)
main21845-38010
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9092504005
main90925-04005
9099992002
main90999-92002
9111140618
main91111-40618
9311913012
main93119-13012
9331915010
main93319-15010
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400

93 parts on this diagram · 2 diagrams in section

CARBURETOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
