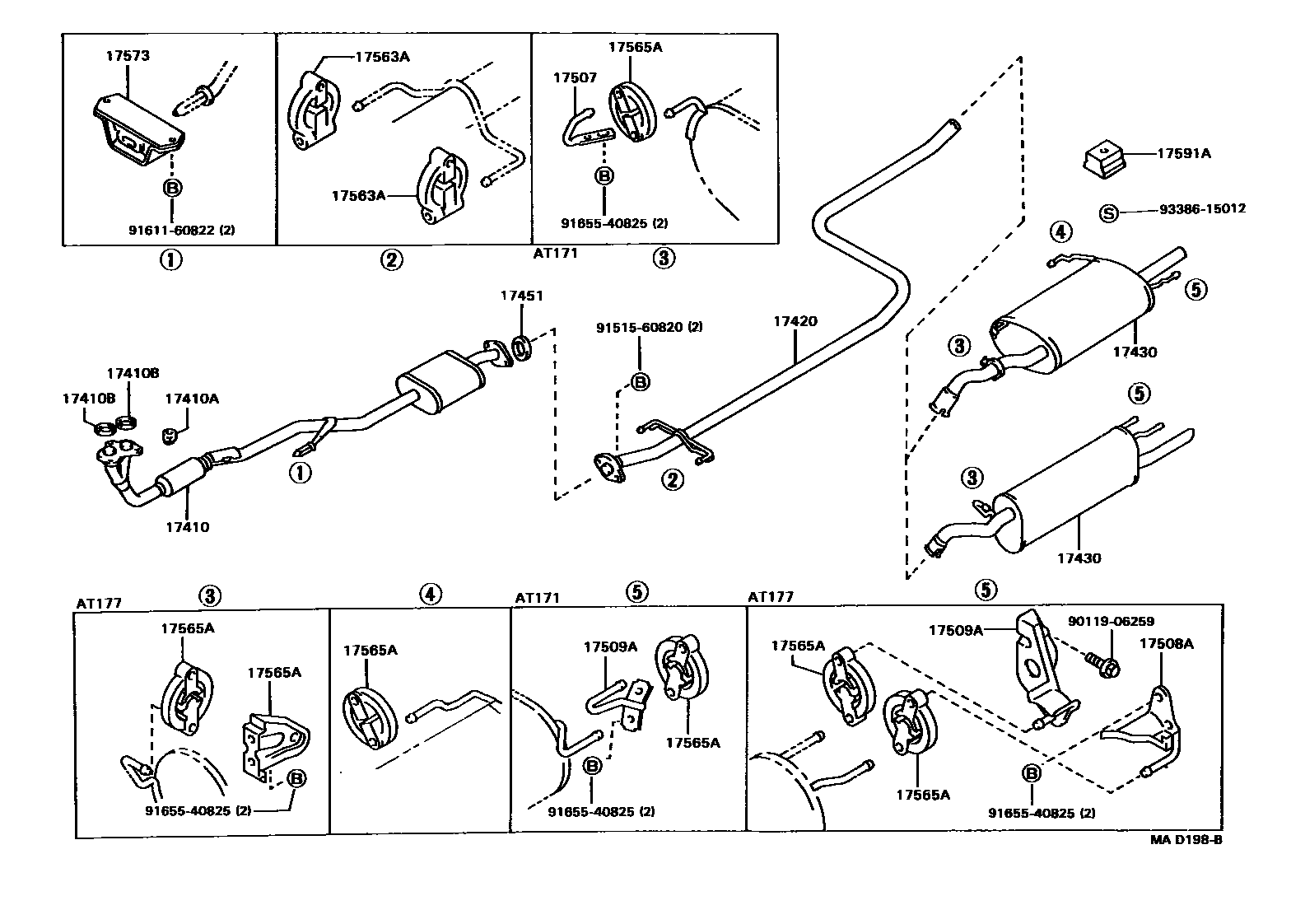

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-16580i4AF..AT17#198712-199211

main17410-64310i2C..CT170198712-198911

sub17410-64311

main17410-64311i2C..CT170198911-199104

sub17410-64312

main17410-64312i2C..CT170199104-199203

main17410-64330i2C..CT177198712-199104

sub17410-64331

main17410-64331i2C..CT177199104-199211

main17410-74450i3SF#..ST171198712-199211

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AF,3SF#..AT17#,ST171198712-199211

17410BGASKET, EXHAUST PIPE

main90917-06001i4AF..AT17#198712-198911

sub90917-06038

main90917-06004i2C..CT17#198712-198911

sub90917-06039

main90917-06038i4AF..AT17#198911-199211

main90917-06039i3SF#..ST171198911-199211

17420PIPE ASSY, EXHAUST, CENTER

main17420-16210i4AF..AT171198712-199004

sub17420-16211

main17420-16211i4AF..AT171199004-199208

main17420-16220i4AF..AT177198712-199211

main17420-74290i3SF#..ST171198712-198909

sub17420-74291

main17420-74291i3SF#..ST171198909-199211

17430PIPE ASSY, EXHAUST, TAIL

main17430-16580i4AF..AT171198712-198911

sub17430-16581

main17430-16581i4AF..AT171198911-199208

main17430-16600i4AF..AT177198712-199211

main17430-64480i2C..CT170198712-198911

sub17430-64481

main17430-64481i2C..CT170198911-199106

main17430-64482i2C..CT170199106-199203

main17430-64500i2C..CT177198712-199211

main17430-74420i3SF#..ST171..LB,SED198712-198911

sub17430-74421

main17430-74421i3SF#..ST171..LB,SED198911-199208

main17430-74620i3SF..ST171..WG198810-198909

sub17430-74621

main17430-74621i3SF..ST171..WG198909-199211

17451GASKET, EXHAUST PIPE

main90917-06004i4AF,3SF#..AT17#,ST171198712-198911

sub90917-06039

main90917-06039i4AF,3SF#..AT17#,ST171198911-199211

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-11030i4AF,2C..AT177,CT177198712-199211

main17507-64030i2C..CT170198712-199203

FR

main17576-74030i2C..CT170198712-199211

RR

main17576-74030i4AF,3SF#..AT171,ST171199008-199211

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-11030i4AF,2C..AT177,CT177198712-199211

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-11030i4AF,2C..AT177,CT177198712-199211

main17509-63060i4AF,2C,3SF#..AT171,CT170,ST171198712-199211

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-64050i2C..CT177198712-199211

NO.2

main17565-11100i2C..CT170198712-199203

RR

main17565-15050i2C..CT177198712-198905

FR

main17565-15070i4AF,3SF#..AT17#,ST171198905-199211

main17565-15070i2C..CT170198905-199211

FR

main17565-15070i2C..CT177198911-199211

NO.1

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-63020i4AF,2C,3SF#..AT171,CT170,ST171198712-199211

FR

main17565-63030i4AF,2C..AT177,CT177198712-199211

main17565-63030i4AF,2C,3SF#..AT171,CT170,ST171198712-199211

RR

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-74020i4AF,3SF#..AT17#,ST171198712-199211

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-36010i4AF,2C,3SF#..AT171,CT170,ST171198712-198802

sub17591-36011

sub90159-50207

main17591-36011i4AF,2C,3SF#..AT171,CT170,ST171198802-199211

9011906259

main90119-06259

9151560820

main91515-60820

9161160822

main91611-60822

9165540825

main91655-40825

9338615012

main93386-15012

18 parts on this diagram · 4 diagrams in section
