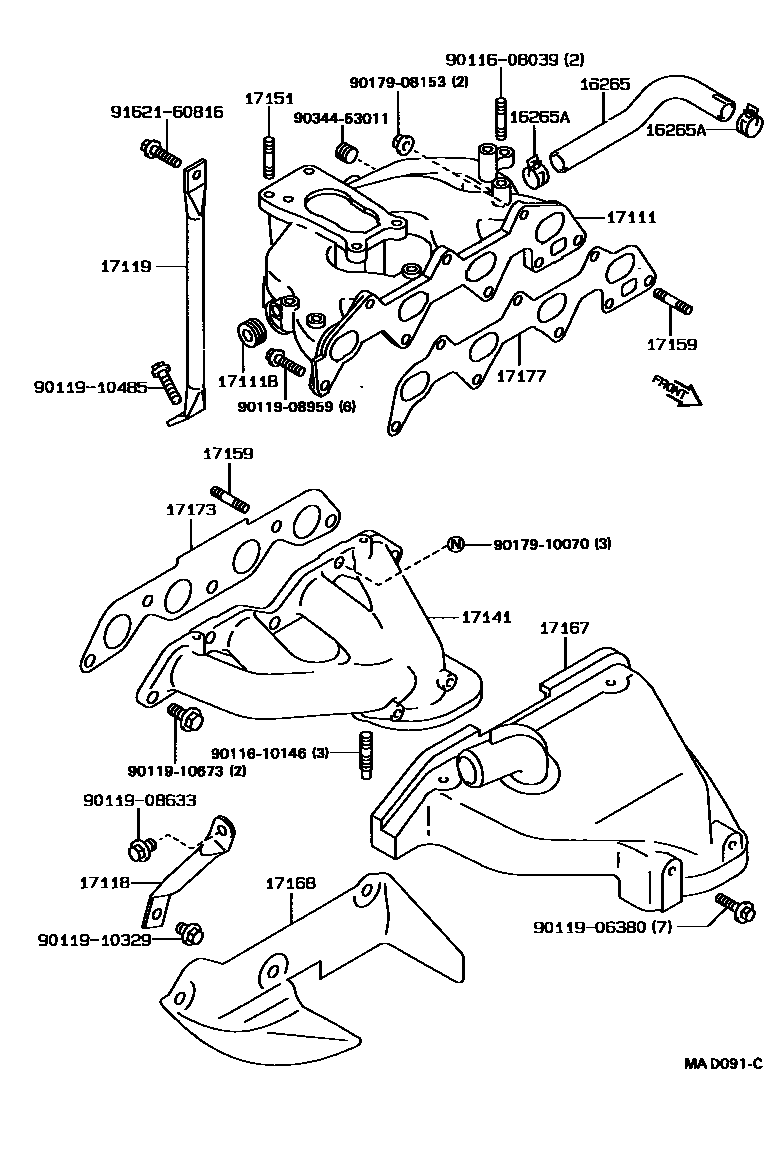

MANIFOLD

0001 1 0003 1 0004 1 0005 1 0006 1

16265HOSE, INTAKE MANIFOLD WATER

main16265-15020i4AF..AT17#198712-199211

16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)

main90467-21006×2i4AF..AT17#198712-199211

17111MANIFOLD, INTAKE

main17101-16080i4AF..AT17#198712-199211

main17101-74071i3SFE..ST171198712-199208

main17101-74110i3SF..ST171198712-199211

main17111-64090i2C..CT17#198712-198911

main17111-64150i2C..CT17#198911-199211

17111BPLUG, NO.2

main90344-54003i4AF..AT17#198712-199211

main96411-41800i3SF..ST171198911-199211

OD=18,NO.1

main96411-42500×2i3SF..ST171198712-198911

OD=25

main96411-44000i3SFE..ST171198712-199208

17118STAY, MANIFOLD

main17118-16050i4AF..AT17#198712-199211

main17118-74040i3SF..ST171198712-199211

NO.1

main17118-74070i3SF..ST171..ATM198712-199208

NO.2

main17118-74110i3SF..ST171..5F198712-199211

NO.2

main17118-88362i3SFE..ST171198712-199208

17119STAY, MANIFOLD, NO.2

main17139-15020i4AF..AT17#198712-199211

17141MANIFOLD, EXHAUST

main17141-16200i4AF..AT17#198712-199211

main17141-64100i2C..CT17#198712-198906

main17141-64101i2C..CT17#198906-199211

main17141-74050i3SF..ST171198712-198909

sub90105-08222

main17141-74051i3SF..ST171198909-199202

main17141-74170i3SF..ST171199202-199211

main17141-88360i3SFE..ST171198712-199208

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832×4i4AF..AT17#198712-198808

main92112-60832×4i4AF..AT17#198808-199211

main92112-60835×4i3SF..ST171198808-199211

main92122-40832×4i3SF..ST171198712-198808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063×6i3SF#..ST171198712-198911

EXHAUST SIDE

main90116-10095×2i2C..CT17#198712-198911

EXHAUST SIDE

main92112-60825×2i4AF..AT17#198712-198911

INTAKE SIDE

main92112-61028×3i4AF..AT17#198911-199211

EXHAUST MANIFOLD

main92112-61032×2i4AF..AT17#198712-198907

EXHAUST SIDE

main92122-60820×2i2C..CT17#198911-199211

INTAKE MANIFOLD

main92122-60822×2i3SF#..ST171198911-199208

INTAKE MANIFOLD

main92122-60825×2i3SFE..ST171198712-198907

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-16070i4AF..AT17#..GEN198712-198805

W(HOT AIR INTAKE)

main17107-16071i4AF..AT17#199206-199211

W(HOT AIR INTAKE)

main17167-16090i4AF..AT17#198712-199206

main17167-16150i4AF..AT17#199206-199211

main17167-64031i2C..CT17#198712-199211

main17167-74021i3SFE..ST171198712-199208

main17167-74050i3SF..ST171198712-199202

main17167-74100i3SF..ST171..GEN198712-199211

W(HOT AIR INTAKE)

main17167-74210i3SF..ST171199202-199211

sub17167-74211

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16050i4AF..AT17#198712-199211

sub17168-16080

main17168-64050i2C..CT17#198712-199211

main17168-74030i3SF..ST171198712-199202

main17168-74110i3SF..ST171199202-199211

main17168-88360i3SFE..ST171198712-199208

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15010i4AF..AT17#198712-198911

main17173-15011i4AF..AT17#..GEN199107-199211

main17173-15040i4AF..AT171..GCC199107-199203

main17173-64020i2C..CT17#198712-198906

sub17173-64050

main17173-64060i2C..CT17#198906-199211

main17173-74040i3SFE..ST171199006-199208

main17173-88360i3SF#..ST171198712-198907

sub17173-88362

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-16030i4AF..AT17#198911-198912

main17171-16031i4AF..AT17#198912-199211

main17177-64010i2C..CT17#198712-198903

main17177-64020i2C..CT17#198903-199211

main17177-74020i3SFE..ST171198712-198907

main17177-74040i3SF..ST171198712-198907

main17177-74041i3SF#..ST171198907-199006

main17177-74070i3SF#..ST171199006-199211

9011608039

main90116-08039

9011610146

main90116-10146

9011906380

main90119-06380

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910485

main90119-10485

9011910673

main90119-10673

9017908153

main90179-08153

9017910070

main90179-10070

9034453011

main90344-53011

9162160816

main91621-60816

25 parts on this diagram · 5 diagrams in section
