MOUNTING

0001 1 0002 1 0005 1 0006 1 0007 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15120i4AF..AT17#198712-199211

main12311-64050i2C..CT17#198712-199211

main12311-74010i3SF#..ST171198712-198908

main12311-74080i3SF#..ST171198908-199211

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15070i4AF..AT17#198712-199211

main12315-64040i2C..CT17#198712-198905

main12315-64050i2C..CT17#198905-199211

main12315-74030i3SF#..ST171198712-199211

12317STAY, ENGINE MOUNTING, RH

main12317-15010i4AF..AT17#198712-198911

main12317-15020i4AF..AT17#198911-199211

main12317-64030i2C..CT17#198712-199211

main12317-74040i3SF#..ST171198712-199211

12318STAY, ENGINE MOUNTING, LH

main12318-15010i4AF..AT17#..3FC198712-199211

main12318-16010i4AF..AT17#..MTM198712-199211

main12318-16040i4AF..AT17#..4FC198911-199211

main12318-74010i3SF#..ST171..ATM198712-199208

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15080i4AF..AT17#..MTM198712-199211

main12321-15090i4AF..AT17#..3FC198712-199211

main12321-15100i4AF..AT17#..4FC198911-199211

main12321-64150i2C..CT17#198712-199211

main12321-74070i3SF#..ST171..5F198712-199211

main12321-74080i3SF#..ST171..ATM198712-199208

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15050i4AF..AT17#..3FC198712-199211

main12325-16060i4AF..AT17#..MTM198712-199211

main12325-16070i4AF..AT17#..4FC198911-199211

main12325-64010i2C..CT17#198712-199211

main12325-74030i3SF#..ST171..5F198712-198803

main12325-74031i3SF#..ST171..5F198803-199211

main12325-74041i3SF#..ST171..ATM198712-199208

12329SUPPORT, ENGINE MOUNTING STAY

main12329-15010i4AF..AT17#198712-199211

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15150i4AF..AT17#..MTM198712-199211

main12361-15160i4AF..AT17#..ATM198712-199211

main12361-64170i2C..CT17#198712-199211

main12361-74070i3SF#..ST171..5F198712-199211

main12361-74080i3SF#..ST171..ATM198712-199208

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-15140i4AF..AT17#198712-198911

main12362-15160i4AF..AT17#198911-199211

main12362-64080i2C..CT17#198712-199211

main12362-74080i3SF#..ST171198712-199211

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15170i4AF..AT17#..MTM198712-199211

main12371-15220i4AF..AT17#..ATM198712-199211

main12371-64150i2C..CT17#198712-199211

main12371-74100i3SF#..ST171..5F198712-198911

main12371-74120i3SF#..ST171..ATM198712-198911

main12371-74250i3SF#..ST171..5F198911-199211

main12371-74260i3SF#..ST171..ATM198911-199208

sub12371-64160

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15140i4AF..AT17#..3FC,4F,5F198712-199211

sub12372-16060

main12372-15150i4AF..AT17#..4FC198911-199211

sub12372-15130

main12372-64100i2C..CT17#198712-199211

main12372-74120i3SF#..ST171..5F198712-199211

main12372-74130i3SF#..ST171..ATM198712-199208

12511BRACKET, ALTERNATOR, NO.1

main12511-15040i4AF..AT17#198712-199211

main12511-64020i2C..CT17#198712-199211

main12511-74020i3SF#..ST171198712-199201

main12511-74051i3SF#..ST171199201-199211

12511ABUSH, ALTERNATOR BRACKET

main90387-10013i4AF..AT17#198712-199211

9010508040

main90105-08040

9010508100

main90105-08100

9010510065

main90105-10065

9010510143

main90105-10143

9010510193

main90105-10193

9010510301

main90105-10301

9010510302

main90105-10302

9010510328

main90105-10328

9010512077

main90105-12077

9010512115

main90105-12115

9010910115

main90109-10115

9011910499

main90119-10499

9011910519

main90119-10519

9017910041

main90179-10041

9017910098

main90179-10098

9017910108

main90179-10108

9017912101

main90179-12101

9161161018

main91611-61018

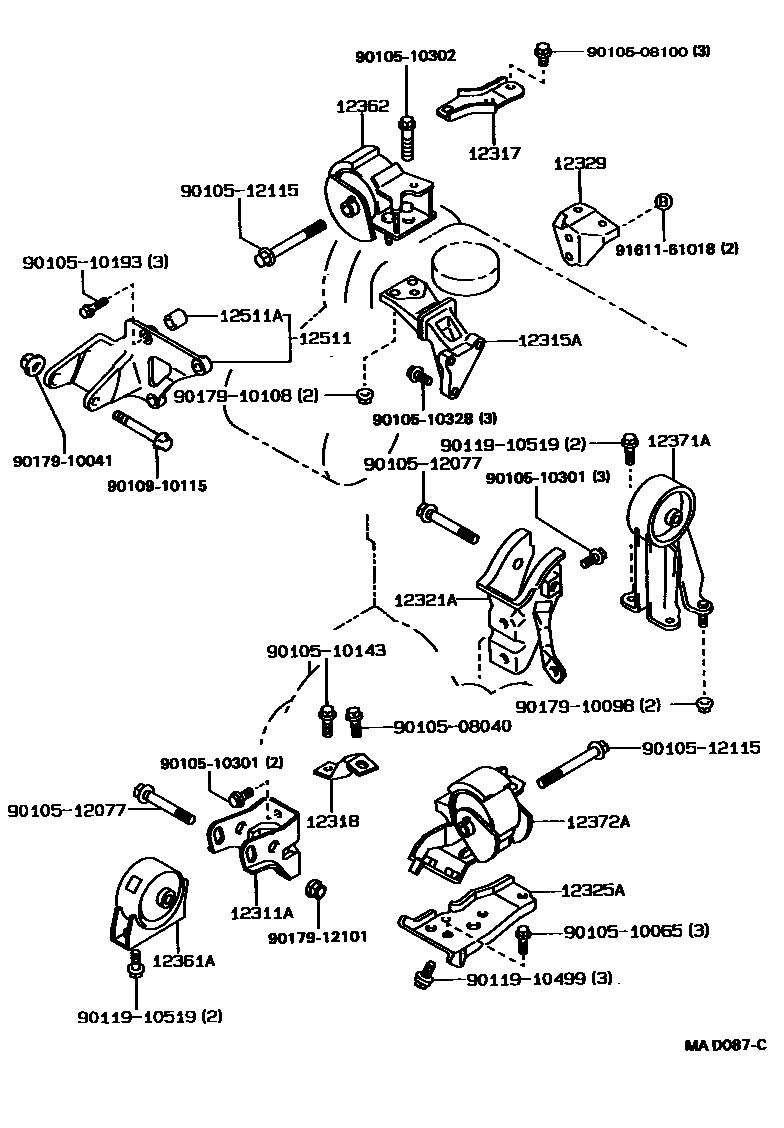

31 parts on this diagram · 5 diagrams in section
