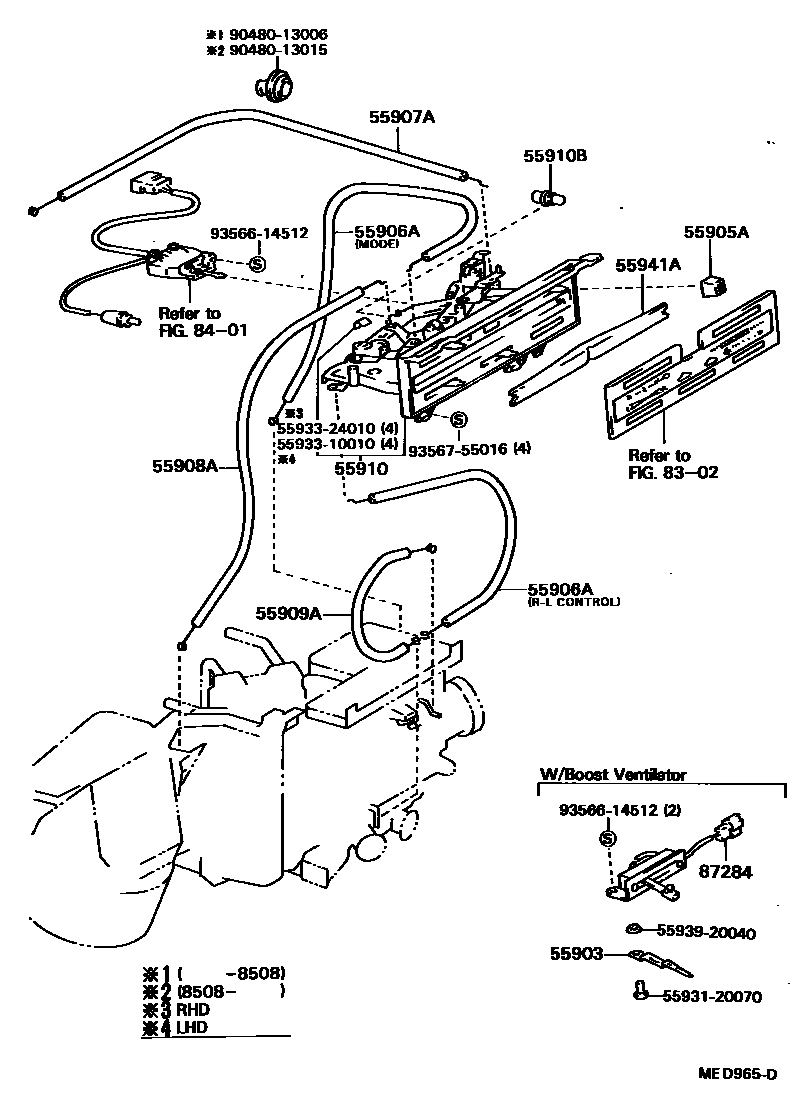

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55903LEVER SUB-ASSY, HEATER CONTROL

main55917-20090iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

main55917-20100iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

55905AKNOB, HEATER CONTROL

main55905-12060×6iAT151,CT150,ST15#198310-198711

sub55905-12070

main55905-12080×4iAT151,CT150,ST150..EUG,FRG198310-198711

*IPM

main55905-20150iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,A/C

main55905-20160iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,ECON

main55905-20170iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,MODE-AUTO

main55905-20180iAT151..SED..RHD..GL..GEN198609-198711

W/*AAC,FAN-AUTO

main55905-20240iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC,HI

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20150iAT151,CT150,ST15#..RHD198310-198711

MODE

main55906-20160iAT151,CT150,ST15#..RHD198310-198711

W/HEATER,R-L CONTROL

main55906-20170iAT151,CT150,ST150..LHD198310-198711

MODE

main55906-20180iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198609

W/HEATER,R-L CONTROL

main55906-20190iAT151,CT150,ST150..RHD..(GEN,TH)198310-198711

W/*BV,R-L CONTROL

main55906-20220iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198609

W/*BV,R-L CONTROL

main55906-20240iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20160iAT151,CT150,ST15#..RHD198310-198711

main55907-20170iAT151,CT150,ST150..LHD198310-198711

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20080iAT151..LB..RHD..4FC;AT151,CT150,ST150..RHD..(3FC,4F,5F)198310-198409

main55908-20090iAT151,CT150,ST150..LHD198310-198711

main55908-20120iAT151,CT150,ST15#..RHD198409-198711

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main87286-20010iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

main87286-20020iAT151,CT150,ST150..LHD198310-198711

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-20281iAT151..SED..RHD..GL..GEN198609-198711

W/*PHC

main55910-20290iAT151,CT150,ST150..RHD198310-198508

W/HEATER

main55910-20291iAT151,CT150,ST15#..RHD..GEN198508-198711

W/HEATER

main55910-20310iAT151,CT150,ST150..RHD..GEN198310-198508

W/*BV

main55910-20320iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

W/HEATER

main55910-20321iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198609

W/HEATER

main55910-20330iAT151,CT150..LHD..EUR198310-198508

main55910-20331iAT151,CT150,ST150..LHD..(GEN,SAA)198609-198711

W/HEATER

main55910-20340iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

W/*BV

main55910-20341iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198609

W/*BV

main55910-20342iAT151,CT150,ST150..LHD..(GEN,SAA)198609-198711

W/*BV

main55910-20410iAT151,CT150,ST15#..RHD..GEN198508-198711

W/*BV

main55910-20420iAT151,CT150..RHD..EUG198508-198711

55910BBULB, HEATER CONTROL

main90981-11014iAT151,CT150,ST15#198508-198711

55941AGUIDE, HEATER CONTROL

main55941-20050iAT151,CT150,ST15#198310-198711

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-20050iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

5593120070CLAMP, HEATER CONTROL WIRE

main55931-20070

5593310010GUIDE, LEVER, NO.2

main55933-10010

5593324010GUIDE, LEVER, NO.2

main55933-24010

5593920040ORNAMENT, HEATER CONTROL

main55939-20040

9048013006

main90480-13006

9048013015

main90480-13015

9356614512

main93566-14512

9356755016

main93567-55016

20 parts on this diagram · 5 diagrams in section
