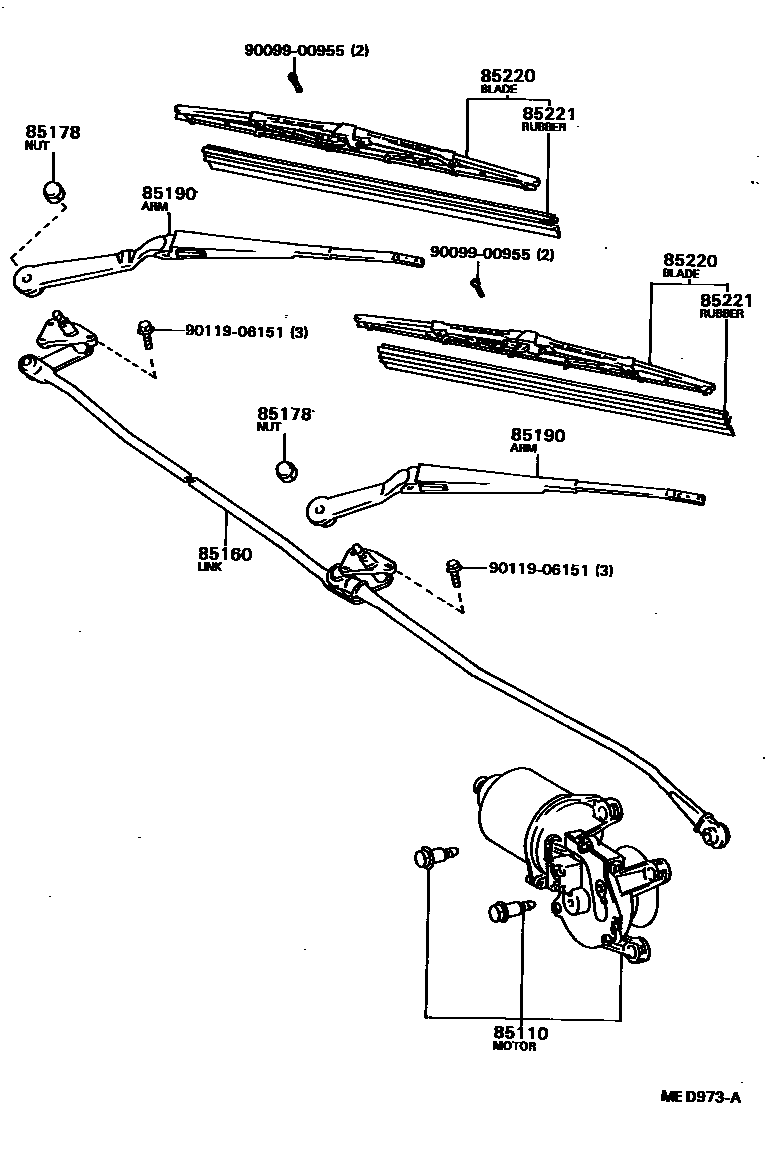

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20150iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

sub85110-20190

main85110-20170iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

sub85110-20180

main85110-20180iAT151,CT150,ST150..LHD..EUR198310-198711

main85110-20190iAT151,CT150..RHD..EUG198310-198711

85160LINK ASSY, WINDSHIELD WIPER

main85160-20200iAT151,ST150..TH198310-198608

sub85160-20230

main85160-20220iAT151,CT150,ST150..LHD198310-198508

sub85160-20240

main85160-20230iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

main85160-20240iAT151,CT150,ST150..LHD198508-198711

sub85160-20250

main85160-20250iAT151,ST150..SED..LHD..5F..GL..GEN;AT151,ST150..SED..LHD..(3FC,4F)..GEN198503-198711

CHINA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iAT151,CT150,ST150198310-198608

main90176-08033iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

85190ARM ASSY, WINDSHIELD WIPER

main85190-20370iAT151,ST150..TH198310-198608

RH

sub85190-20470

main85190-20390iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198508

LH

main85190-20400iAT151,CT150..LHD..EUR198310-198508

LH

main85190-20410iAT151,CT150..RHD..EUG198310-198508

RH

sub85190-20500

main85190-20470iAT151,CT150,ST15#..RHD..GEN198508-198711

RH

main85190-20480iAT151,CT150,ST150..LHD..(GEN,SAA)198508-198711

LH

main85190-20490iAT151,CT150,ST150..LHD..EUR198508-198711

LH

main85190-20500iAT151,CT150..RHD..EUG198508-198711

RH

main85210-20110iAT151,CT150,ST150..RHD198310-198608

LH

sub85210-20150

main85210-20120iAT151,CT150,ST150..LHD198310-198508

RH

main85210-20150iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

LH

main85210-20160iAT151,CT150,ST150..LHD198508-198711

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16180iAT151,CT150..RHD..EUG198310-198702

RH

sub85220-16350

main85220-16270iAT151,CT150,ST150..LHD198310-198702

LH

sub85220-16640

main85220-16290iAT151,CT150,ST150..LHD198310-198508

RH

sub85220-16640

main85220-16320iAT151,CT150,ST15#..RHD198310-198711

LH

sub85220-16321

main85220-16340iAT151,CT150,ST150..LHD198508-198711

RH

sub85220-16640

main85220-16350iAT151,CT150,ST15#..RHD..(GEN,TH)198310-198711

RH

main85220-16720iAT151,CT150..RHD..EUG198702-198711

RH

sub85220-16350

main85220-16730iAT151,CT150,ST150..LHD198702-198711

LH

85221BLADE, WINDSHIELD WIPER

main85221-17020iAT151,CT150,ST150..LHD..EUR198702-198711

RH

sub85221-40040

main85221-17020iAT151,CT150..RHD..EUG198702-198711

LH

sub85221-40040

main85221-30100iAT151,CT150,ST150..LHD..(GEN,SAA)198310-198711

RH

sub85221-40040

main85221-30120iAT151,CT150..RHD..EUG198310-198711

LH

sub85221-40040

9009900955

main90099-00955

9011906151

main90119-06151

8 parts on this diagram · 2 diagrams in section
