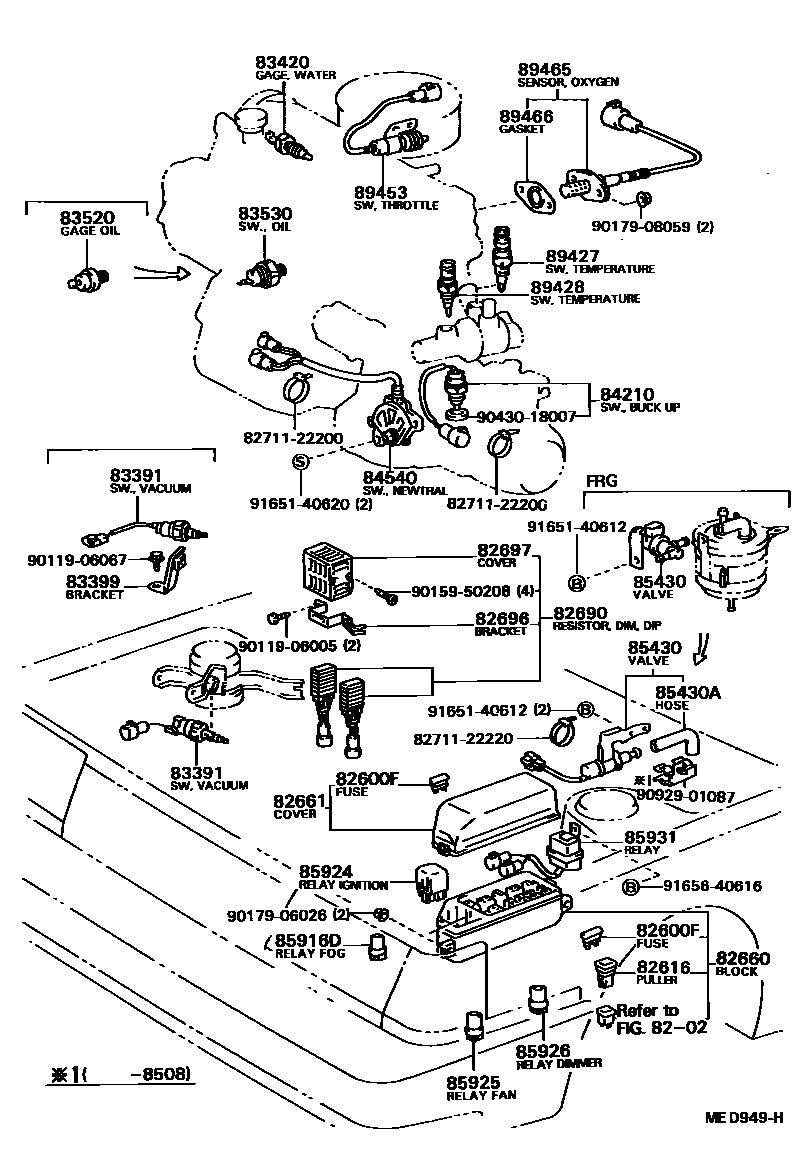

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8202

82600FFUSE, FUSE BLOCK

main90982-09002iAT151,CT150,ST15#198310-198711

10A,10A

main90982-09003×12iAT151,CT150,ST15#198310-198711

15A,15A

main90982-09004×4iAT151,CT150,ST15#..EUR,GEN,SAA198310-198711

20A,YELLOW,20A

main90982-09005×9iAT151,CT150,ST15#198310-198711

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iAT151,CT150,ST15#198310-198711

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-32030iAT151,CT150,ST150..RHD198310-198412

sub82660-32160

main82660-32040iAT151,CT150,ST15#..RHD..(EUR,GEN)198412-198711

sub82660-32160

main82660-32050iAT151,CT150,ST150..LHD..EUR198310-198711

sub82660-32180

82661COVER, RELAY BLOCK, NO.1

main82661-32010iAT151,CT150..RHD;ST15#..GEN,SAA,TH;AT151,CT150..LHD..(GEN,SAA)198310-198711

ENGINE ROOM

main82661-32030iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

COWL SIDE

main82661-32040iAT151,CT150,ST150..LHD198310-198711

COWL SIDE

main82661-32050iAT151,CT150,ST150..LHD..EUR198310-198711

ENGINE ROOM

82690RESISTOR ASSY, DIM DIP LAMP

main82690-20010iAT151,CT150..LHD..EUG198611-198711

82696BRACKET, DIM-DIP LAMP RESISTOR

main82696-20010iAT151,CT150..RHD..EUG198611-198711

82697COVER, DIM-DIP LAMP RESISTOR

main82697-20010iAT151,CT150..RHD..EUG198611-198711

83391SWITCH, VACUUM

main83391-12150iAT151..FRG198608-198711

EMISSION

main83391-16020iAT151,ST150..LHD..EUR198310-198711

ED MONITOR

main83391-27020iST150..5F..SAA198310-198508

main83391-35030iST150..5F..SAA198508-198711

83399BRACKET, VACUUM SWITCH

main83399-20070iAT151..FRG198608-198711

sub83399-27040

main83399-20120iST150..EUG198508-198711

main83399-22011iAT151,ST150..LHD..(EUG,SDZ)198310-198711

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iAT151,CT150,ST15#198310-198711

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAT151..4F..XL..(GEN,SAA);AT151,CT150..(3FC,4FC,5F)..(GL,XL)198310-198705

DENSO

main83520-14023iAT151,CT150..GL,XL198705-198711

DENSO

sub83520-35030

main83520-14042iST15#198310-198705

DENSO

main83520-14043iST15#198705-198711

DENSO

main83520-20020iST15#198310-198711

YAZAKI

main83520-55011iAT151..4F..XL..(GEN,SAA);AT151,CT150..(3FC,4FC,5F)..(GL,XL)198310-198711

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iAT151..EUR;AT151..STD,XL198310-198401

sub83530-14030

main83530-12040iST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198410

main83530-14020iST150..LB..XL;ST150..SED..LHD..XL;ST150..SED..RHD..GEN198410-198608

main83530-14040iAT151..EUR;AT151..4F..TH;AT151..(STD,XL)..GEN198503-198511

main83530-30042iCT150198410-198502

main83530-30050iAT151..EUR,SAA;AT151..XL..GEN198708-198711

sub83530-30051

main83530-30060iCT150198502-198711

sub83530-60030

main83530-30080iST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198608-198711

sub83530-60040

main83530-36011iCT150198310-198410

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iAT151,CT150,ST150..MTM198310-198508

main84210-60021iST151..5F198508-198711

84540SWITCH ASSY, NEUTRAL START

main84540-12160iST150..4FC198508-198711

main84540-32010iAT151..ATM..EUR198508-198711

TOKAIRIKA

main84540-32020iAT151..ATM..EUR198508-198711

MATSUSHITA

85430VALVE, OUTER VENT CONTROL

main85430-12100iAT151198310-198508

main90925-09006iAT151..EUG,SDZ;AT151..GEN,SAA,TH198508-198711

main90925-09011iAT151..FRG198608-198711

85430AHOSE

main90445-14075iAT151..EUG,SDZ;AT151..GEN,SAA,TH198310-198711

85916RELAY, LIGHT CONTROL

main90987-01003×2iAT151,CT150,ST15#198310-198711

85916DRELAY, FOG LAMP

main90987-01003iAT151,CT150..EUR198310-198508

main90987-02004iAT151,CT150,ST150..EUR198508-198711

85924RELAY, IGNITION CONTROL

main85913-30020iAT151,CT150,ST150198310-198508

main90987-04002iAT151,CT150,ST15#198508-198711

85925RELAY, RADIATOR FAN

main90987-03001iAT151,CT150,ST15#198310-198711

85926RELAY, HEADLAMP DIMMER

main85926-30020iAT151,CT150,ST150..EUR198310-198711

85931RELAY, EMISSION CONTROL

main85931-20010iAT151..FRG198608-198711

89427SWITCH, TEMPERATURE DETECT

main89427-12051iCT150..EUG198310-198711

main89427-12070iAT151..FRG198608-198711

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15011iAT151198310-198711

main89428-15030iCT150198310-198711

main89428-32010iST15#198310-198711

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12010iAT151..FRG198608-198711

89465SENSOR, OXYGEN

main89465-29075iAT151..FRG198608-198711

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iAT151..FRG198608-198711

sub89466-20020

8271122200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22200

8271122220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22220

9011906005

main90119-06005

9011906067

main90119-06067

9015950208

main90159-50208

9017906026

main90179-06026

9017908059

main90179-08059

9043018007

main90430-18007

9092901087

main90929-01087

9165140612

main91651-40612

9165140620

main91651-40620

9165640616

main91656-40616

40 parts on this diagram · 6 diagrams in section
