WIRING & CLAMP

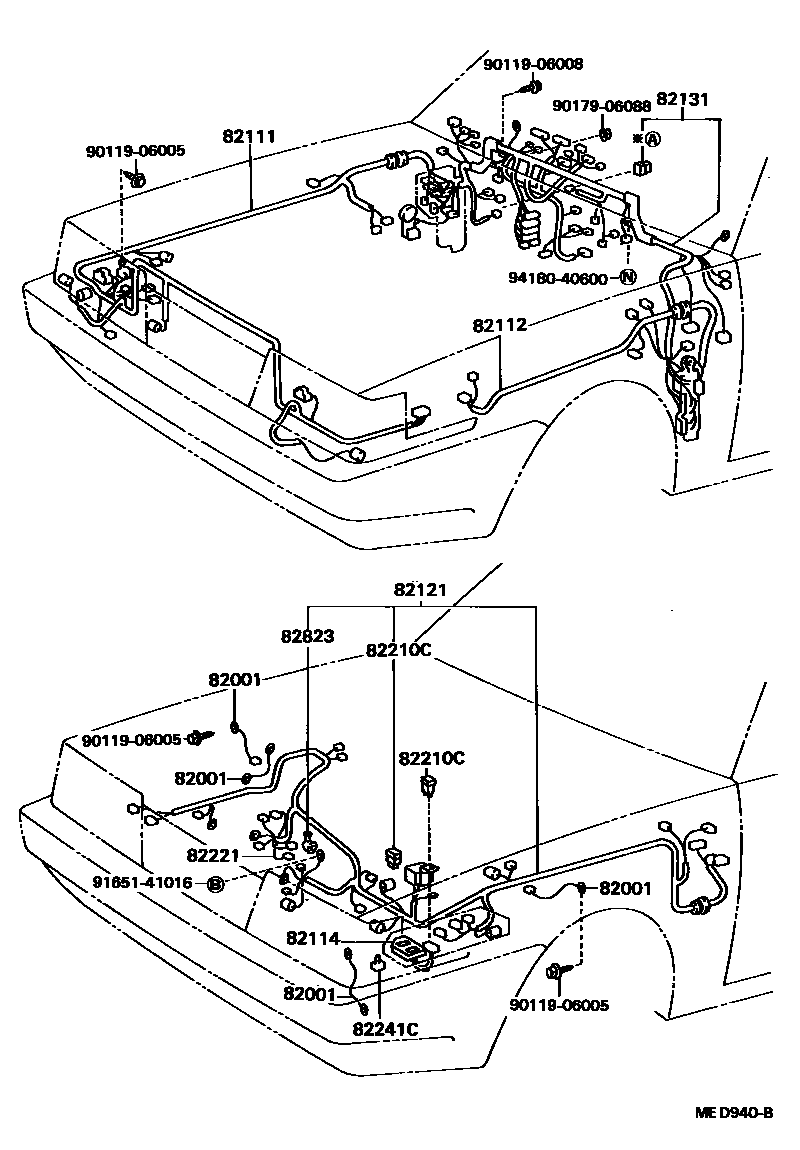

Parts diagram
82001CABLE, BOND, NO.1
main86203-20120i198310-198711
FENDER RH
main86203-20130i198310-198508
FENDER LH
main90980-07177i198310-198508
CLUTCH HOUSING
main90980-07205i198310-198711
ENGINE HANGER
main90980-07206i198611-198711
FENDER RH,W/DIM-DIP LAMP
main90980-07228i198310-198408
ENGINE HANGER
main90980-07236i198408-198710
ENGINE HANGER
main90980-07264i198508-198711
CLUTCH HOUSING
main90980-07299i198710-198711
ENGINE HANGER
82111WIRE, ENGINE ROOM MAIN
main82111-20240i198310-198508
main82111-20260i198310-198508
W/RR WIPER
main82111-20280i198310-198508
main82111-20290i198310-198508
W/*HC OR RR WIPER
main82111-20300i198310-198508
main82111-20310i198310-198711
W/RR WIPER
main82111-20330i198310-198508
main82111-20510i198508-198711
main82111-20520i198508-198711
W/RR WIPER
main82111-20540i198508-198601
main82111-20541i198601-198608
main82111-20542i198608-198711
main82111-20550i198508-198608
main82111-20551i198608-198711
main82111-20560i198508-198601
main82111-20561i198601-198711
main82111-20780i198611-198711
W/DIM-DIP LAMP
82112WIRE, ENGINE ROOM, NO.2
main82112-20040i198310-198711
main82112-20050i198310-198611
main82112-20051i198611-198711
82114WIRE, ENGINE ROOM, NO.4
main82114-32010i198310-198711
82121WIRE, ENGINE
main82121-20140i198310-198508
main82121-20150i198310-198508
main82121-20170i198310-198508
main82121-20180i198310-198508
main82121-20200i198310-198508
main82121-20210i198310-198508
main82121-20220i198310-198508
main82121-20230i198310-198508
main82121-20240i198310-198508
COLD SPEC
main82121-20250i198310-198508
main82121-20260i198310-198508
main82121-20270i198310-198508
COLD SPEC
main82121-20360i198310-198508
main82121-20720i198508-198609
main82121-20721i198609-198711
main82121-20730i198508-198609
main82121-20731i198609-198711
main82121-20740i198508-198510
main82121-20741i198510-198611
main82121-20742i198611-198711
main82121-20760i198508-198608
main82121-20761i198608-198711
main82121-20780i198508-198510
main82121-20781i198510-198608
main82121-20782i198608-198611
main82121-20783i198611-198711
main82121-20790i198508-198510
COLD SPEC
main82121-20791i198510-198608
COLD SPEC
main82121-20792i198608-198611
COLD SPEC
main82121-20793i198611-198711
COLD SPEC
main82121-20800i198508-198711
main82121-20810i198508-198609
main82121-20811i198609-198711
main82121-20820i198508-198510
main82121-20821i198510-198611
main82121-20822i198611-198711
main82121-20830i198508-198609
main82121-20831i198609-198711
main82121-20840i198508-198711
main82121-20850i198508-198510
main82121-20851i198510-198609
main82121-20852i198609-198711
main82121-20860i198508-198510
main82121-20861i198510-198611
main82121-20862i198611-198711
main82121-20870i198508-198510
COLD SPEC
main82121-20871i198510-198611
COLD SPEC
main82121-20872i198611-198711
COLD SPEC
main82121-2B200i198605-198711
SINGAPORE SPEC
main82121-2B261i198608-198609
main82121-2B262i198609-198711
82131WIRE, COWL
main82131-20400i198410-198508
NORWAY SPEC
main82131-20720i198310-198508
main82131-20730i198310-198508
W/TACHO METER
main82131-20740i198310-198508
main82131-20750i198310-198508
W/*PW
main82131-20760i198310-198508
main82131-20770i198310-198508
main82131-20780i198310-198508
W/SUN ROOF,*PW OR *ME
main82131-20790i198310-198508
main82131-20800i198310-198508
main82131-20810i198310-198508
W/TACHO METER
main82131-20820i198310-198508
main82131-20830i198310-198508
main82131-2B030i198310-198508
W/O TACHO METER
main82131-2B430i198501-198508
W/RR SPEAKER
main82131-2B660i198508-198711
main82131-2B670i198508-198711
W/TACHO METER
main82131-2B680i198508-198603
main82131-2B681i198603-198711
main82131-2B690i198508-198603
NEWZEALAND SPEC
main82131-2B691i198603-198711
NEWZEALAND SPEC
main82131-2B700i198508-198603
W/O TACHO METER
main82131-2B701i198603-198711
W/O TACHO METER
main82131-2B710i198508-198601
main82131-2B711i198601-198608
main82131-2B712i198608-198609
main82131-2B713i198609-198711
main82131-2B720i198508-198601
W/TACHO METER
main82131-2B721i198601-198608
W/TACHO METER
main82131-2B722i198608-198609
W/TACHO METER
main82131-2B723i198609-198705
W/TACHO METER
main82131-2B724i198705-198711
W/TACHO METER
main82131-2B730i198508-198711
main82131-2B740i198508-198711
main82131-2B750i198508-198711
W/*PW
main82131-2B760i198508-198608
*ME
main82131-2B761i198608-198711
*ME
main82131-2B770i198508-198601
main82131-2B771i198601-198608
sub82131-2B772
main82131-2B773i198608-198610
main82131-2B774i198610-198711
main82131-2B780i198510-198601
W/TACHOMETER
main82131-2B781i198601-198608
W/TACHOMETER
main82131-2B783i198608-198711
main82131-2B784i198610-198711
W/TACHOMETER
main82131-2B790i198508-198601
NORWAY SPEC
main82131-2B791i198601-198608
NORWAY SPEC
main82131-2B792i198608-198610
NORWAY SPEC
main82131-2B793i198610-198711
NORWAY SPEC
main82131-2D080i198508-198601
W/*PW
main82131-2D081i198601-198608
W/*PW
main82131-2D082i198608-198610
W/*PW
main82131-2D083i198610-198701
W/*PW
main82131-2D084i198701-198711
W/*PW
main82131-2D400i198609-198711
W/PUSH TYPE HEATER CONTROL
main82131-2D410i198611-198711
W/DIM-DIP LAMP
main82131-2D420i198611-198705
W/DIM-DIP LAMP & TACHOMETER
main82131-2D421i198705-198711
W/DIM-DIP LAMP & TACHOMETER
82210CFUSIBLE LINK
main90982-08188×3i198310-198711
30A,TERM.:FEMALE,PNK,30A
main90982-08189i198608-198711
40A,TERM.:FEMALE,GRN,40A
main90982-08190i198310-198608
60A,TERM.:FEMALE,YEL,60A
main90982-08202i198310-198711
60A,TERM.:MALE,YEL,60A
main90982-08203i198310-198711
80A,TERM.:MALE,BLK,80A
82221WIRE, OIL PRESSURE SWITCH
main82221-16010i198310-198508
82241CWIRE, RELAY
main82241-20190i198408-198711
main82241-22100i198310-198408
82823CAP, TERMINAL, NO.1
main82823-14070i198310-198711
STARTER
main82823-20030i198310-198711
STARTER
main82823-20040i198310-198608
ALTERNATOR
main82823-22050i198608-198711
ALTERNATOR,NEWZEALAND SPEC
main82823-22060i198608-198711
ALTERNATOR
main82823-32020i198608-198711
ALTERNATOR
9011906005
main90119-06005
9011906008
main90119-06008
9017906088
main90179-06088
9165141016
main91651-41016
9418040600
main94180-40600

15 parts on this diagram · 11 diagrams in section
