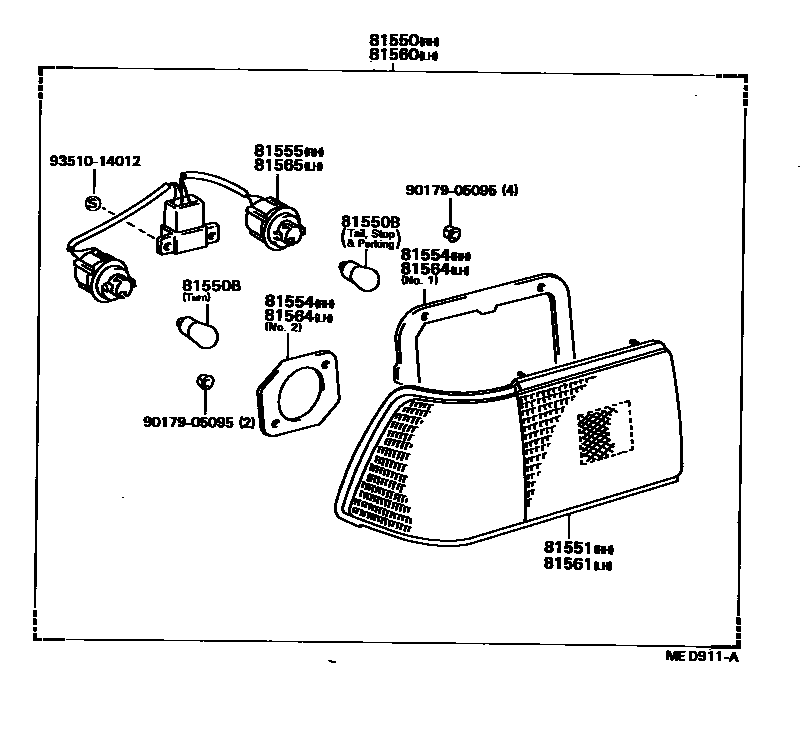

REAR COMBINATION LAMP

0001 1 0003 1 0004 1 0005 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20621iAT151,CT150,ST150..LB..EUR198508-198711

main81550-20740iAT151,CT150,ST150..SED..EUR198508-198711

main81550-20760iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

main81550-20770iAT151,ST15#..LB..(GEN,SAA)198508-198711

main81550-80154iST150..LB..TH198508-198608

sub81550-20590

main81550-80201iAT151,CT150..LB..EUR198310-198508

main81550-80202iAT151,ST150..SED..TH198508-198608

sub81550-20600

main81550-80203iAT151,CT150..SED..EUR198310-198508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iAT151,CT150,ST150..EUR198310-198711

12V 21W,12V 21W

main99132-11230×4iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

12V 23W,12V 23W

main99132-21210×2iAT151,CT150,ST15#198310-198711

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-20590iAT151,ST150..LB..(GEN,SAA)198310-198508

main81551-20600iAT151,ST150..SED..TH198508-198608

main81551-20610iAT151,CT150..SED..EUR198310-198508

main81551-20620iAT151,CT150..LB..EUR198310-198508

main81551-20740iAT151,CT150,ST150..SED..EUR198508-198711

main81551-20760iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

main81551-20770iAT151,CT150,ST15#..LB..(EUR,GEN,SAA)198508-198711

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-14390iAT151,CT150,ST150..SED..(GEN,SAA)198310-198508

NO.2

main81552-20600iAT151,CT150,ST15#..SED..(GEN,SAA,TH)198310-198711

NO.1

main81554-20590iAT151,CT150,ST15#..LB198310-198711

main81554-20600iAT151,CT150,ST15#..SED..(EUR,GEN,SAA)198508-198711

NO.2

main81554-20610iAT151,CT150..SED..EUR198310-198508

NO.1

main81557-20610iAT151,CT150..SED..EUR198310-198508

NO.2

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20590iAT151,ST15#..LB..(GEN,SAA,TH)198310-198711

main81555-20600iAT151,ST150..SED..TH198508-198608

main81555-20610iAT151,CT150..SED..EUR198310-198508

main81555-20620iAT151,CT150,ST150..LB..EUR198310-198711

main81555-20740iAT151,CT150,ST150..SED..EUR198508-198711

main81555-20760iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20561iAT151,CT150,ST150..LB..EUR198508-198711

main81560-20680iAT151,CT150,ST150..SED..EUR198508-198711

main81560-20700iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

main81560-20710iAT151,ST15#..LB..(GEN,SAA)198508-198711

main81560-80159iST150..LB..TH198508-198608

sub81560-20530

main81560-80206iAT151,CT150..LB..EUR198310-198508

main81560-80207iAT151,CT150,ST150..SED..(GEN,SAA)198310-198508

sub81560-20540

main81560-80208iAT151,CT150..SED..EUR198310-198508

81561LENS, REAR COMBINATION LAMP, LH

main81561-20530iST150..LB..TH198508-198608

main81561-20540iAT151,ST150..SED..TH198508-198608

main81561-20550iAT151,CT150..SED..EUR198310-198508

main81561-20560iAT151,CT150..LB..EUR198310-198508

main81561-20680iAT151,CT150,ST150..SED..EUR198508-198711

main81561-20700iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

main81561-20710iAT151,CT150,ST15#..LB..(EUR,GEN,SAA)198508-198711

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-14390iAT151,CT150,ST150..SED..(GEN,SAA)198310-198508

NO.2

main81552-20600iAT151,CT150,ST150..SED..EUR198508-198711

NO.1

main81554-20590iAT151,CT150,ST15#..LB198310-198711

main81554-20600iAT151,CT150,ST15#..SED..(EUR,GEN,SAA)198508-198711

NO.2

main81554-20610iAT151,CT150..SED..EUR198310-198508

NO.1

main81557-20610iAT151,CT150..SED..EUR198310-198508

NO.2

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20590iAT151,ST15#..LB..(GEN,SAA,TH)198310-198711

main81555-20600iAT151,CT150,ST150..SED..(GEN,SAA)198310-198508

main81555-20610iAT151,CT150..SED..EUR198310-198508

main81555-20620iAT151,CT150,ST150..LB..EUR198310-198711

main81555-20740iAT151,CT150,ST150..SED..EUR198508-198711

main81555-20760iAT151,CT150,ST15#..SED..(GEN,SAA)198508-198711

9017905095

main90179-05095

9351014012

main93510-14012

11 parts on this diagram · 4 diagrams in section
