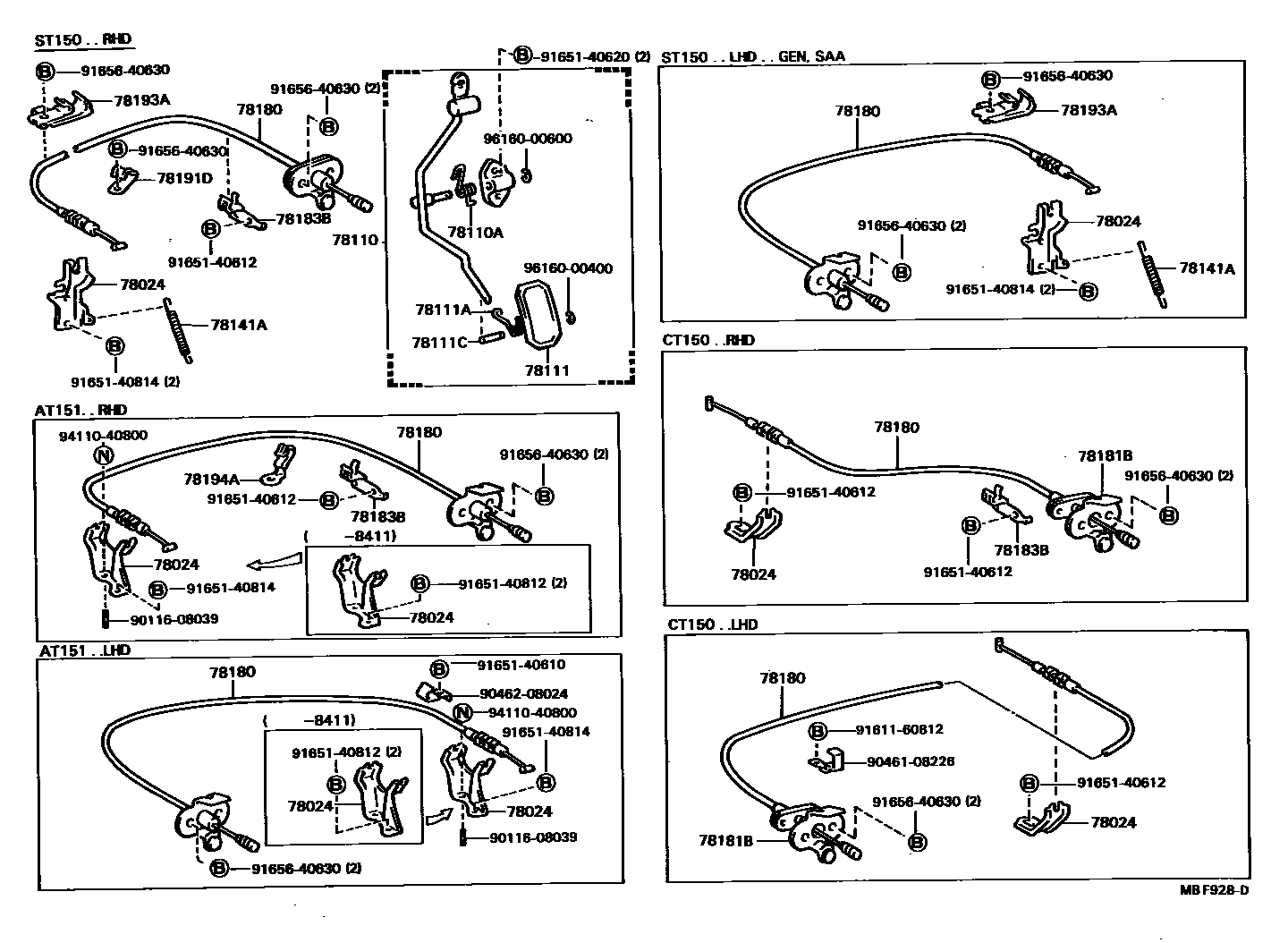

ACCELERATOR LINK

0001 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32010iST150..GEN,SAA,TH198310-198711

main78024-32020iST151198508-198711

main78024-32031iST150..EUG198508-198711

main78184-12160iAT151198310-198711

main78184-12170iCT150198310-198711

78110ROD ASSY, ACCELERATOR PEDAL

main78120-20180iAT151,CT150,ST15#..RHD..MTM198310-198711

main78120-20190iAT151,ST15#..RHD..ATM198310-198711

main78120-20220iAT151,CT150,ST150..LHD..MTM198310-198711

main78120-20230iAT151,ST150..LHD..ATM198310-198711

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iAT151,ST15#..RHD..ATM198310-198711

main90508-18054iAT151,ST150..LHD..ATM198310-198711

main90508-26054iAT151,CT150,ST15#..RHD..MTM198310-198711

main90508-26062iAT151,CT150,ST150..LHD..MTM198310-198711

78111PEDAL, ACCELERATOR

main78111-32010iAT151,CT150,ST15#198310-198711

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT151,CT150,ST15#198310-198711

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT151,CT150,ST15#198310-198711

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90507-10013iST150..3FC198310-198711

main90507-11002iST150..EUG198508-198711

main90507-11003iST150..MTM..(GEN,SAA,TH)198310-198711

78180WIRE ASSY, ACCELERATOR

main78180-20200iST150..RHD198310-198711

main78180-20240iAT151..RHD198310-198711

main78180-20260iST150..LHD..(GEN,SAA)198310-198711

main78180-20270iCT150..RHD198310-198711

main78180-20280iCT150..LHD198310-198711

main78180-20300iST151198508-198711

main78180-20350iAT151..LHD198310-198711

main78180-20590iST150..EUG198508-198711

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-14060iCT150198310-198711

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12060iAT151,CT150,ST15#..RHD198310-198711

78191DCLAMP, ACCELERATOR CONTROL CABLE

main78183-20020iST150..RHD198310-198711

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32010iST150..GEN,SAA198310-198711

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-12020iAT151..RHD198310-198711

9011608039

main90116-08039

9046108226

main90461-08226

9046208024

main90462-08024

9161160812

main91611-60812

9165140610

main91651-40610

9165140612

main91651-40612

9165140620

main91651-40620

9165140812

main91651-40812

9165140814

main91651-40814

9165640630

main91656-40630

9411040800

main94110-40800

9616000400

main96160-00400

9616000600

main96160-00600

26 parts on this diagram · 2 diagrams in section
