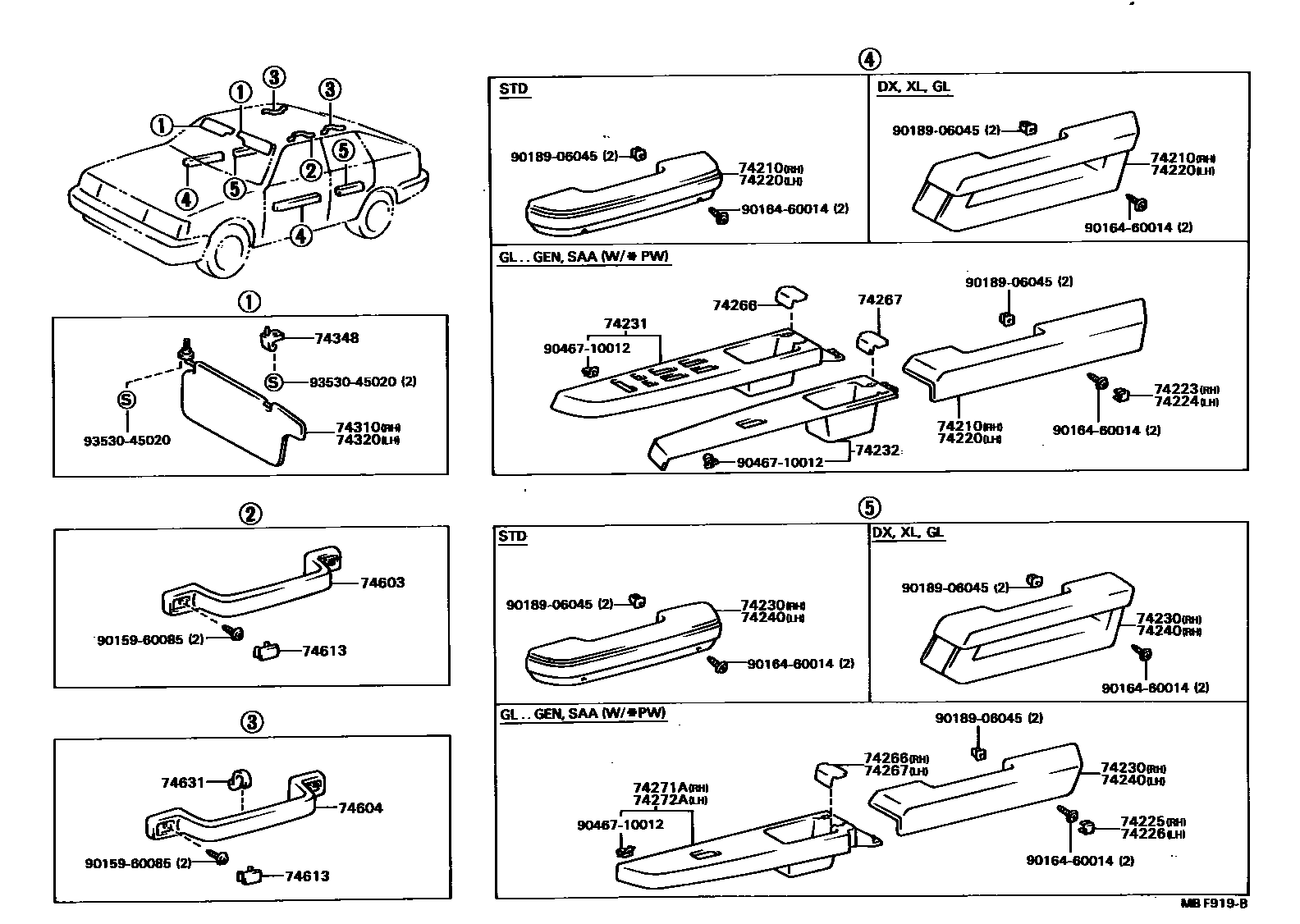

ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-20120-02iAT151,CT150,ST150..DX,GL,XL198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74210-20120-03iAT151,CT150,ST150..DX,GL,XL198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74210-20120-04iAT151,CT150,ST150..DX,GL,XL198310-198508

BLUE,BLUE,TRIM8#

main74210-20120-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

main74210-20130-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74210-20130

main74210-20130-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74210-20130

main74210-20130-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74210-20130

main74210-20130-14iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74210-20130

main74210-22061-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub74210-22061

main74210-22061-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-22061

main74210-22061-23iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74210-22061

74220ARMREST ASSY, FRONT, LH

main74210-22061-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub74210-22061

main74210-22061-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-22061

main74210-22061-23iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74210-22061

main74220-20120-02iAT151,CT150,ST150..DX,GL,XL198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74220-20120-03iAT151,CT150,ST150..DX,GL,XL198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74220-20120-04iAT151,CT150,ST150..DX,GL,XL198310-198508

BLUE,BLUE,TRIM8#

main74220-20120-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

main74220-20130-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74220-20130

main74220-20130-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74220-20130

main74220-20130-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74220-20130

main74220-20130-14iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74220-20130

74223CAP, DOOR ARMREST, RH

main74266-20050-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20050

main74266-20050-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20050

main74266-20050-04iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20050

74224CAP, DOOR ARMREST, LH

main74266-20050-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20050

main74266-20050-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20050

main74266-20050-04iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20050

74225CAP, DOOR ARMREST, REAR RH

main74266-20050-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20050

main74266-20050-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20050

main74266-20050-04iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20050

74226CAP, DOOR ARMREST, REAR LH

main74266-20050-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20050

main74266-20050-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20050

main74266-20050-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20050

main74266-20050-14iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20050

74230ARMREST ASSY, REAR, RH

main74210-22061-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub74210-22061

main74210-22061-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-22061

main74210-22061-23iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74210-22061

main74250-20030-02iAT151,CT150,ST150..DX,GL,XL198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74250-20030-03iAT151,CT150,ST150..DX,GL,XL198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74250-20030-04iAT151,CT150,ST150..DX,GL,XL198310-198508

BLUE,BLUE,TRIM8#

main74250-20030-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

main74250-20040-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74250-20040-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74250-20040-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

main74250-20040-14iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20100-02iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74231-20101

main74231-20100-03iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74231-20101

main74231-20100-04iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

sub74231-20101

main74231-20101-02iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

MAROON,MAROON,TRIM3#

main74231-20101-03iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

GRAY,GRAY,TRIM1#

main74231-20101-04iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

BLUE,BLUE,TRIM8#

main74231-20110-02iAT151,ST150..RHD..GL..GEN198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74231-20111

main74231-20110-03iAT151,ST150..RHD..GL..GEN198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74231-20111

main74231-20110-04iAT151,ST150..RHD..GL..GEN198310-198508

BLUE,BLUE,TRIM8#

sub74231-20111

main74231-20111-02iAT151,ST15#..RHD..GL..GEN198508-198711

MAROON,MAROON,TRIM3#

main74231-20111-03iAT151,ST15#..RHD..GL..GEN198508-198711

GRAY,GRAY,TRIM1#

main74231-20111-04iAT151,ST15#..RHD..GL..GEN198508-198711

BLUE,BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20080-02iAT151,ST150..RHD..GL..GEN198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74232-20081

main74232-20080-03iAT151,ST150..RHD..GL..GEN198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74232-20081

main74232-20080-04iAT151,ST150..RHD..GL..GEN198310-198508

BLUE,BLUE,TRIM8#

sub74232-20081

main74232-20081-02iAT151,ST15#..RHD..GL..GEN198508-198711

MAROON,MAROON,TRIM3#

main74232-20081-03iAT151,ST15#..RHD..GL..GEN198508-198711

GRAY,GRAY,TRIM1#

main74232-20081-04iAT151,ST15#..RHD..GL..GEN198508-198711

BLUE,BLUE,TRIM8#

main74232-20100-02iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74232-20101

main74232-20100-03iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74232-20101

main74232-20100-04iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

sub74232-20101

main74232-20101-02iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

MAROON,MAROON,TRIM3#

main74232-20101-03iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

GRAY,GRAY,TRIM1#

main74232-20101-04iAT151,ST150..LHD..GL..(GEN,SAA)198508-198711

BLUE,BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-22061-04iAT151..STD198310-198508

BLUE,BLUE,TRIM8#

sub74210-22061

main74210-22061-12iAT151..STD198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub74210-22061

main74210-22061-23iAT151..STD198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub74210-22061

main74260-20020-02iAT151,CT150,ST150..DX,GL,XL198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main74260-20020-03iAT151,CT150,ST150..DX,GL,XL198310-198711

SHADOW GRAY,GRAY,TRIM1#

main74260-20020-04iAT151,CT150,ST150..DX,GL,XL198310-198508

BLUE,BLUE,TRIM8#

main74260-20020-14iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

main74260-20030-02iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main74260-20030-03iAT151,ST15#..GL..(GEN,SAA)198310-198711

W/*PW,SHADOW GRAY,GRAY,TRIM1#

main74260-20030-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

main74260-20030-14iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

74266CAP, DOOR ARMREST, RH

main74266-20040-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20041

main74266-20040-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20041

main74266-20040-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20041

main74266-20041-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

sub74266-20041

main74266-20041-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

sub74266-20041

main74266-20041-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20041

74267CAP, DOOR ARMREST, LH

main74266-20040-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74266-20041

main74266-20040-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74266-20041

main74266-20040-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20041

main74266-20041-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

sub74266-20041

main74266-20041-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

sub74266-20041

main74266-20041-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

sub74266-20041

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-20020-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74271-20021

main74271-20020-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74271-20021

main74271-20020-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74271-20021

main74271-20021-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

main74271-20021-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

main74271-20021-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-20010-02iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub74272-20011

main74272-20010-03iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,SHADOW GRAY,GRAY,TRIM1#

sub74272-20011

main74272-20010-04iAT151,ST150..GL..(GEN,SAA)198310-198508

W/*PW,BLUE,BLUE,TRIM8#

sub74272-20011

main74272-20011-02iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,MAROON,MAROON,TRIM3#

main74272-20011-03iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,GRAY,GRAY,TRIM1#

main74272-20011-04iAT151,ST15#..GL..(GEN,SAA)198508-198711

W/*PW,BLUE,BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-20270-03iST150..SED..RHD..GL;AT151,CT150..SED..RHD..5F..GEN198408-198711

CKD,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main74310-20270-03iAT151..RHD..3FC..XL198608-198711

THAILAND SPEC,GRAY,LIGHT GRAY,TRIM1#,8#

main74310-20270-05iST150..SED..RHD..GL..GEN;AT151,CT150..RHD..5F..GEN198408-198711

CKD,BEIGE,BEIGE,TRIM3#

main74310-20270-05iAT151..RHD..3FC..XL198608-198711

THAILAND SPEC,BEIGE,BEIGE,TRIM3#

main74310-20340-03iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,LIGHT GRAY,GRAY,TRIM1#,8#

main74310-20340-05iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,BEIGE,BEIGE,TRIM3#

main74310-20350-03iAT151,CT150,ST150..LHD198310-198711

FB,LIGHT GRAY,GRAY,TRIM1#,8#

main74310-20350-05iAT151,CT150,ST150..LHD198310-198711

FB,BEIGE,BEIGE,TRIM3#

main74310-20360-03iAT151,CT150,ST150..LHD..(DX,GL,XL)198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

main74310-20360-05iAT151,CT150,ST150..LHD..(DX,GL,XL)198310-198609

BEIGE,BEIGE,TRIM3#

main74310-20361-03iAT151,CT150,ST150..LHD198609-198711

GRAY,GRAY,TRIM1#,8#

main74310-20361-05iAT151,CT150,ST150..LHD198609-198711

BEIGE,BEIGE,TRIM3#

main74310-20380-03iAT151,CT150,ST150..RHD..(EUR,GEN)198310-198711

FB,LIGHT GRAY,GRAY,TRIM1#,8#

main74310-20380-05iAT151,CT150,ST150..RHD..(EUR,GEN)198310-198711

FB,BEIGE,BEIGE,TRIM3#

main74310-20390-03iAT151..LHD..STD;AT151,CT150,ST15#..RHD198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

sub74310-20360

main74310-20390-05iAT151..LHD..STD;AT151,CT150,ST15#..RHD198310-198609

BEIGE,BEIGE,TRIM3#

sub74310-20360

main74310-20391-03iAT151,CT150,ST15#..RHD198609-198711

GRAY,GRAY,TRIM1#,8#

sub74310-20361

main74310-20391-05iAT151,CT150,ST15#..RHD198609-198711

BEIGE,BEIGE,TRIM3#

sub74310-20361

main74310-20510-03iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC,GRAY,GRAY,TRIM1#,8#

main74310-20510-03iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC,GRAY,GRAY,TRIM1#,8#

main74310-20510-05iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC,BEIGE,BEIGE,TRIM3#

main74310-20510-05iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC,BEIGE,BEIGE,TRIM3#

74320VISOR ASSY, LH

main74320-20290-03iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20290-05iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,BEIGE,BEIGE,TRIM3#

main74320-20310-03iAT151,CT150,ST150..LHD198310-198711

FB,LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20310-05iAT151,CT150,ST150..LHD198310-198711

FB,BEIGE,BEIGE,TRIM3#

main74320-20320-03iAT151..RHD..STD;AT151,CT150,ST150..LHD198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

sub74320-20340

main74320-20320-05iAT151..RHD..STD;AT151,CT150,ST150..LHD198310-198609

BEIGE,BEIGE,TRIM3#

sub74320-20340

main74320-20321-03iAT151,CT150,ST150..LHD198609-198711

GRAY,GRAY,TRIM1#,8#

sub74320-20341

main74320-20321-05iAT151,CT150,ST150..LHD198609-198711

BEIGE,BEIGE,TRIM3#

sub74320-20341

main74320-20330-03iAT151,CT150,ST150..RHD..(EUR,GEN)198310-198711

FB,LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20330-05iAT151,CT150,ST150..RHD..(EUR,GEN)198310-198711

FB,BEIGE,BEIGE,TRIM3#

main74320-20340-03iAT151,CT150,ST15#..RHD..(GL,XL)198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

main74320-20340-05iAT151,CT150,ST15#..RHD..(GL,XL)198310-198609

BEIGE,BEIGE,TRIM3#

main74320-20341-03iAT151,CT150,ST15#..RHD198609-198711

GRAY,GRAY,TRIM1#,8#

main74320-20341-05iAT151,CT150,ST15#..RHD198609-198711

BEIGE,BEIGE,TRIM3#

main74320-20370-03iST150..SED..RHD..GL..GEN;AT151,CT150..RHD..5F..GEN198408-198711

CKD,LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main74320-20370-03iAT151..RHD..3FC..XL198608-198711

THAILAND SPEC,GRAY,LIGHT GRAY,TRIM1#,8#

main74320-20370-05iAT151..RHD..3FC..XL198608-198711

THAILAND SPEC,BEIGE,BEIGE,TRIM3#

main74320-20370-05iST150..SED..RHD..GL..GEN;AT151,CT150..RHD..5F..GEN198408-198711

CKD,BEIGE,BEIGE,TRIM3#

main74320-20480-03iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC,GRAY,GRAY,TRIM1#,8#

main74320-20480-03iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC,GRAY,GRAY,TRIM1#,8#

main74320-20480-05iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC,BEIGE,BEIGE,TRIM3#

main74320-20480-05iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC,BEIGE,BEIGE,TRIM3#

74348HOLDER, VISOR

main74348-32010-03iAT151,CT150,ST15#198310-198702

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32010-05iAT151,CT150,ST15#198310-198702

BEIGE,BEIGE,TRIM3#

sub74348-17010

sub74348-12020

sub74348-32010

main74348-32020-03iAT151,CT150,ST15#198702-198711

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

sub74348-12020

main74348-32020-15iAT151,CT150,ST15#198702-198711

BEIGE,BEIGE,TRIM3#

sub74348-12020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-03iAT151,CT150,ST15#198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-14030

sub74610-12050

main74610-14030-15iAT151,CT150,ST15#198310-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

sub74610-14030

sub74610-12050

main74610-32010-05iAT151,CT150,ST150..EUR,GEN,SAA198310-198711

BEIGE,BEIGE,TRIM3#

sub74610-32010

sub74610-20040

main74610-32010-13iAT151,CT150,ST150..EUR,GEN,SAA198310-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-32010

sub74610-20040

74604GRIP SUB-ASSY, ASSIST, REAR

main74610-14030-03iAT151,CT150,ST15#198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-14030

sub74610-12050

main74610-14030-15iAT151,CT150,ST15#198310-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

sub74610-14030

sub74610-12050

main74610-32010-05iAT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

BEIGE,BEIGE,TRIM3#

sub74610-32010

sub74610-20040

main74610-32010-13iAT151,CT150,ST150..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74610-32010

sub74610-20040

74613PLUG, ASSIST GRIP

main74617-16010-15iAT151,CT150,ST15#198310-198711

BEIGE,BEIGE,TRIM3#

sub74617-16010

main74617-16010-23iAT151,CT150,ST15#198310-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74617-16010

74631HOOK, COAT, A

main74631-20040-03iAT151,CT150,ST15#..DX,GL,XL198310-198711

LIGHT GRAY,GRAY,TRIM1#,8#

sub74631-20040

sub74631-14010

main74631-20040-05iAT151,CT150,ST15#..DX,GL,XL198310-198711

BEIGE,BEIGE,TRIM3#

sub74631-20040

sub74631-14010

9015960085

main90159-60085

9016460014

main90164-60014

9018906045

main90189-06045

9046710012

main90467-10012

9353045020

main93530-45020

26 parts on this diagram · 2 diagrams in section
