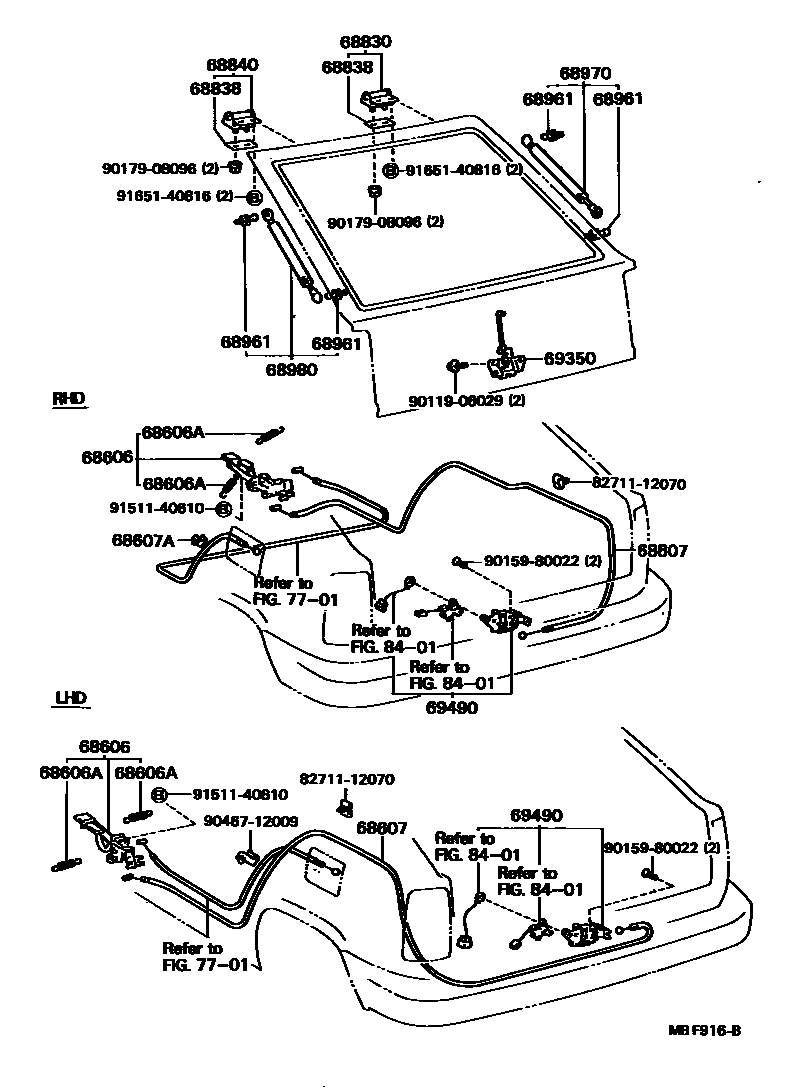

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14030iAT151,ST150..LB..RHD..GEN198310-198508

main64606-14050iAT151,ST150..LB..LHD..(GEN,SAA)198310-198508

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iAT151,ST150..LB..(GEN,SAA)198310-198508

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20090iAT151,ST150..LB..RHD..GEN198310-198508

sub77035-32060

main64607-20100iAT151,CT150,ST150..LB..LHD198508-198711

sub77035-14200

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAT151,ST150..LB..RHD..GEN198310-198508

68830HINGE ASSY, BACK DOOR, RH

main68801-20020iAT151,CT150,ST15#..LB198310-198711

sub68801-20021

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAT151,CT150,ST15#..LB198310-198711

sub68838-14022

68840HINGE ASSY, BACK DOOR, LH

main68801-20020iAT151,CT150,ST15#..LB198310-198711

sub68801-20021

68961BOLT, BACK DOOR STAY

main68961-12010×4iAT151,CT150,ST150..LB198310-198506

main68961-20020×4iAT151,CT150,ST15#..LB198506-198711

sub68961-23010

68970STAY ASSY, BACK DOOR, RH

main68950-29165iAT151,CT150,ST15#..LB198310-198711

W/RR WIPER

main68950-29175iAT151,CT150,ST15#..LB..(EUR,GEN,SAA)198310-198711

W/O RR WIPER

68980STAY ASSY, BACK DOOR

main68950-29165iAT151,CT150,ST15#..LB198310-198711

W/RR WIPER

main68950-29175iAT151,CT150,ST15#..LB..(EUR,GEN,SAA)198310-198711

W/O RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-20020iAT151,CT150,ST15#..LB198310-198711

69490STRIKER ASSY, BACK DOOR LOCK

main69430-20040iAT151,ST150..LB..(GEN,SAA)198310-198508

W/OPENER

main69430-20050iCT150..LB;ST150..LB..XL;AT151..LB..LHD;AT151..LB..RHD..XL;AT151..LB..RHD..EUG198310-198508

W/O OPENER

main69430-20051iAT151,CT150,ST150..LB..(DX,XL)198508-198711

W/O OPENER

main69430-20070iAT151,ST15#..LB..(EUR,GEN,SAA)198508-198711

W/OPENER

7701

8401

8271112070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12070

9011906029

main90119-06029

9015980022

main90159-80022

9017908096

main90179-08096

9046712009

main90467-12009

9151140610

main91511-40610

9165140816

main91651-40816

21 parts on this diagram · 1 diagram in section
